描述

0-60029-1 信實電接口卡DPS

產品描述
0-60029-1信實接口卡/ DPS PMI交流并行SA 3000

來自信實的0-60029-1是一種電路板和面板模塊，用于該公司的驅動器，最常用的是SA 3000。

0-60029-1作為接口卡使用。前面板上除了安裝后用于固定模塊的兩顆螺釘和標識為“P1/并聯電源模塊接口”的單母連接器外，其他全部裸露。面板大約有8英寸高。上面有公司的標志和董事會的身份證號。面板通過兩個螺釘連接到電路板上。

0-60029-1的電路板部分由9個晶體管、14個集成電路、金屬膜電阻器、二極管和陶瓷電容器組成。它還有三個薄膜電阻器(TDP16032002)。這些有兩個標準電路在一個模制的外殼結構，由高度穩定的薄膜材料。后邊緣有一個單一的直角接口連接器位于其中心。大多數組件都標有引用指示符。板子的兩邊都打上了hash標記，所有的角落都經過了工廠的鉆孔。

有關單板組件的更多信息，或關于如何安裝在正確位置的詳細信息，請參閱用戶指南或數據表等技術支持產品。這些產品最初由Reliance提供。它們現在可以通過其他制造商如Baldor-Reliance或可能的Asea Brown Boveri獲得。0-60029-1單板元器件為靜電敏感產品。開箱前請閱讀并遵守所有安全和處理程序。

0-60029-1 信實電接口卡DPS

Product Description
0-60029-1 Reliance Interface Card / DPS PMI AC Parallel SA 3000

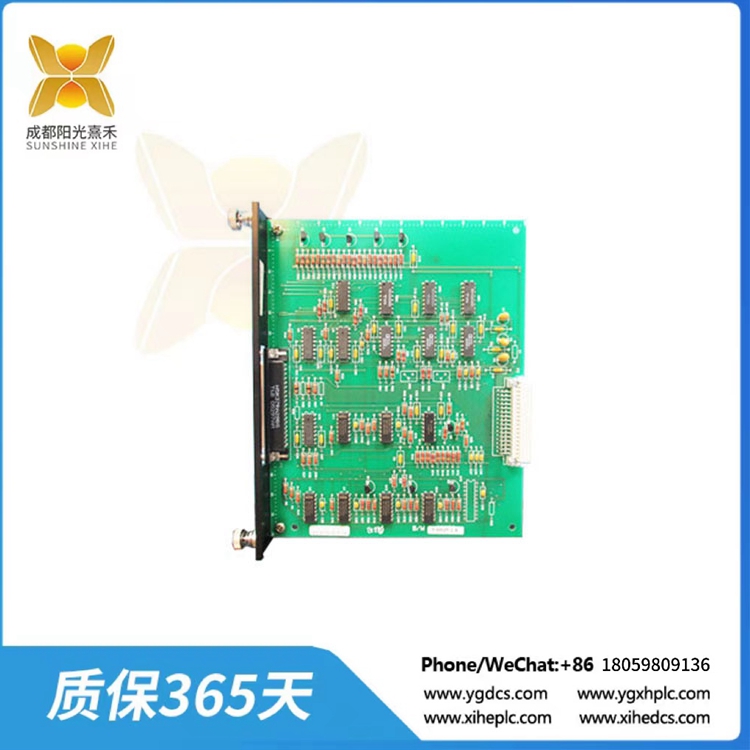

The 0-60029-1, from Reliance, is a circuit board and faceplate module manufactured for use within the company’s drives, most often the SA 3000.

The 0-60029-1 functions as an Interface Card. ?The front faceplate is bare except for the two screws used to lock the module in place after installation and a single female connector that is labeled P1/Parallel Power Module Interface. ?The faceplate is approximately eight inches high. ?It is marked with the company logo and with the board’s ID number. ?The faceplate attaches to the circuit board via two screws.

The circuit board portion of the 0-60029-1 is populated by nine transistors, fourteen integrated circuits, metal film resistors, diodes, and ceramic capacitors. ?It also has three thin-film resistors (TDP16032002.) These have two standard circuits in a molded case construction made from highly-stable thin-film material. ? The rear edge has a single right-angled interface connector located in its center. ?Most components are marked with reference designators. ?The board is marked with hash marks along two edges and is factory-drilled in all corners.

For more information regarding board components, or for detailed information about how to install this board in its proper location, please refer to technical support products like user guides or data sheets. ?These products were originally provided by Reliance. They may be available now through other manufacturers such as Baldor-Reliance or possibly Asea Brown Boveri. ?The 0-60029-1 board component is a static-sensitive product. ?Please read and follow all safety and handling procedures before unboxing.
