描述

0-60031-5? ? I/O解析器驅動PMI模塊

產品描述
0-60031-5 I/O解析器驅動器PMI模塊

0-60031-5是由Reliance制造的電路板，作為其各種驅動系統的組件，最常見的是自動化系列驅動器。0-60031-5被認為是一個過時的零件，不再在積極生產。它通常被標記為信實部分。然而，公司結構的變化將信實電氣的這一部分與其他制造商合并。您要更換的部件最初可能來自Baldor-Reliance或Asea Brown Boveri。

0-60031-5是一個解析器和驅動器I/O PMI模塊。這個組件有一個狹窄的面板，在其下半部分有兩個母插頭連接器。這些被標記為“解析器反饋”和“驅動器I/O”。主板還有9個LED指示燈(按2綠1紅5綠1紅的模式安裝)。它們被標記為fdbk, rpi, mcr, aux in1, aux in2, auxin3, auxin4, auxin5和aux out。

0-60031-5板組件包括位于后邊緣中心的多針直角接口連接器。它有三個繼電器，一個電感線圈，一個變壓器，磁盤電容器，高壓電容器，晶體管，電阻器和二極管。該板有一個3000uV雙極運算放大器安裝在一個散熱器內。這是位于左板邊緣。它也有超過35個集成電路，包括現場可編程門陣列。

0-60031-5? ? I/O解析器驅動PMI模塊

Product Description
0-60031-5 I/O Resolver Drive PMI Module

The 0-60031-5 is a circuit board fabricated by Reliance as a component for their various drive systems, most usually the Automate series of drives. ??The 0-60031-5 is considered an obsolete part and is no longer in active production. It is typically notated as a Reliance part. However, changes in company structure merged this portion of Reliance Electric with other manufacturers. The part you are replacing may have shipped originally from Baldor-Reliance or Asea Brown Boveri.

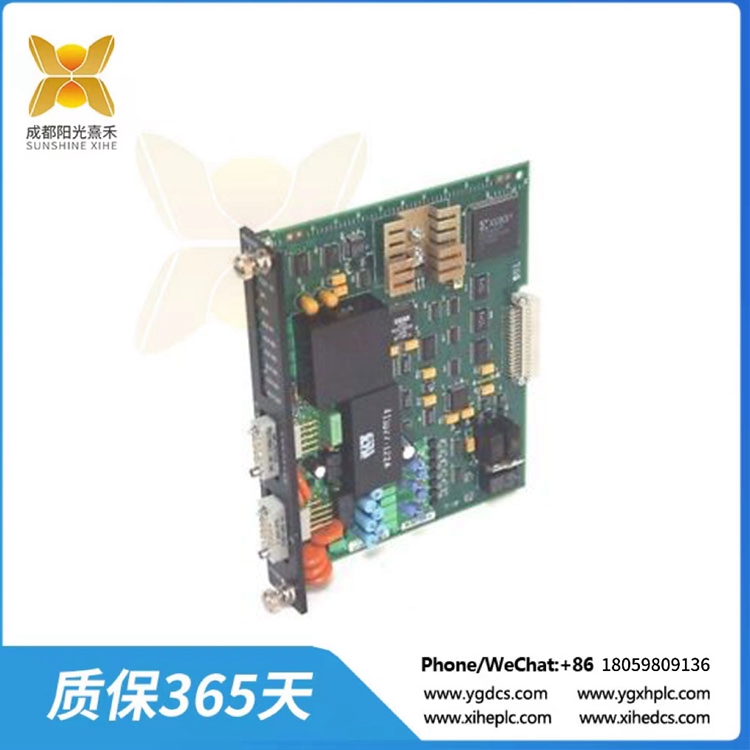

The 0-60031-5 is a Resolver and Drive I/O PMI module. ?This component has an attached narrow faceplate with two female plug connectors in its lower half. ?These are labeled ‘resolver feedback’ and ‘drive I/O.’ The board also has nine LED indicators (mounted in a pattern of two green, one red, five green, one red.) ?These are labeled fdbk ok, rpi, mcr, aux in1, aux in2, auxin3, aux in4, auxin5 and aux out.

The 0-60031-5 board component includes a multi-pin right angled interface connector located at the center of the rear edge. ?It has three relays, an inductor coil, a transformer, disk capacitors, high-voltage capacitors, transistors, resistors, and diodes. ?The board has a 3000uV Bipolar Operational Amplifier mounted within a heat sink. This is located on the left board edge. It also has over thirty-five integrated circuits including field programmable gate arrays.
