描述

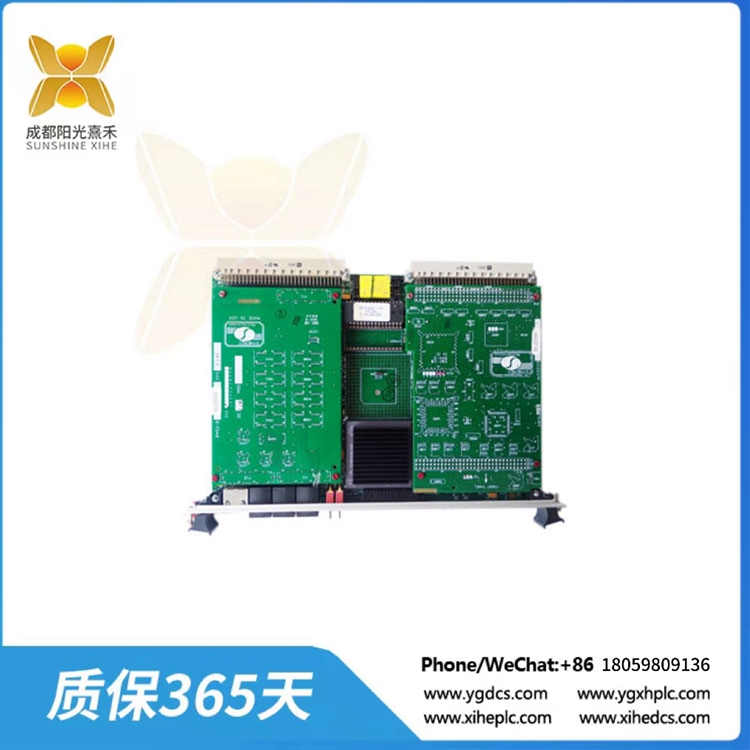

0090-00224 信號調節板

概述:用于信號源和讀出設備之間的信號調理器件，如衰減器、前置放大器、電荷放大器以及對傳感器或放大器進行非線性補償?shù)碾娖睫D(zhuǎn)換器件。

信號調理器
典型應用1:內置IC壓電加速度傳感器和采集顯示設備之間的通信: ICP壓電加速度傳感器需要恒流源供電，典型值為: 24VDC、 4mA,而不是電子儀器通常具備的恒壓源供電。ICP傳感器輸出的與振動加速度成正比的交流信號是疊加在一輸出偏壓上(8-12V),而不是通常意義上的以地為參考點。由于上述兩大特點，ICP 壓電加速度傳感器不能直接使用，必須經由信號調理器供電和信號處理后才可以和采集顯示設備通信。信號調理器技術指標:
1) 通道數 2-16
2)恒流供電電流 4mA
3)恒流供電電壓24V DC
4)增益:根據用戶要求可在1-100之間定做默認值為1
5)高頻上限: 根據用戶要求可在1-100kHz之間定做默認值為30kHz
6)低頻下限: 0.08Hz
信號調理器
7)供電電壓: DC 24V (配套電源適配器AC220V -24VDC )
8) 工作溫度: -10 +40°C
9) 工作濕度:≤85%

信號調理器
典型應用2:XP系列信號調理器(-進-出，-進=出)是在自動化控制系統中對各種工業信號變送、轉換、隔離、傳輸、運算的儀表，可與各種工業傳感器配合，取回參數信號,隔離變送傳輸，滿足用戶本地監視遠程數據采集的需求。廠泛應用于機械、電氣、電信、電力、石油、化工、鋼鐵、污水處理、樓宇建筑等領域的數據采集、信號傳輸轉換、PLC、 DCS 等工業測控系統，用來完善和補充系統模擬|/O插件功能，增加系統適用性和現場環境的可靠度。

0090-00224 信號調節板

Overview: Signal conditioning devices used between signal sources and readout devices, such as attenuators, preamplifiers, charge amplifiers, and level conversion devices for nonlinear compensation of sensors or amplifiers.

Signal conditioner
Typical application 1: Communication between the built-in IC piezoelectric acceleration sensor and the acquisition and display device: the ICP piezoelectric acceleration sensor requires a constant current source power supply, typical values: 24VDC, 4mA, rather than the constant voltage source power supply that electronic instruments usually have. The AC signal output by the ICP sensor is proportional to the vibration acceleration and is superimposed on an output bias (8-12V), rather than the common sense of the ground as a reference point. Because of the above two characteristics, the ICP piezoelectric acceleration sensor can not be used directly, and must be powered by the signal conditioner and signal processing before it can communicate with the acquisition and display equipment. Signal conditioner technical indicators:
1) Number of channels 2-16
2) Constant current power supply current 4mA
3) Constant current supply voltage 24V DC
4) Gain: According to user requirements can be customized between 1-100 default value is 1
5) High frequency upper limit: according to user requirements can be customized between 1-100kHz default value of 30kHz
6) Lower lower frequency: 0.08Hz
Signal conditioner
7) Power supply voltage: DC 24V (matching power adapter AC220-24VDC)
8) Operating temperature: -10 +40°C
9) Working humidity :≤85%

Signal conditioner
Typical application 2:XP series signal conditioner (-input-out, -input-= out) is an instrument for transmitting, converting, isolating, transmitting and calculating various industrial signals in an automated control system. It can cooperate with various industrial sensors to retrieve parameter signals and isolate transmission transmission to meet the needs of users for local monitoring and remote data acquisition. The factory is widely used in machinery, electrical, telecommunications, electric power, petroleum, chemical, steel, sewage treatment, building construction and other fields of data acquisition, signal transmission and conversion, PLC, DCS and other industrial measurement and control systems, used to improve and supplement the system simulation |/O plug-in function, increase the applicability of the system and the reliability of the site environment.
