描述

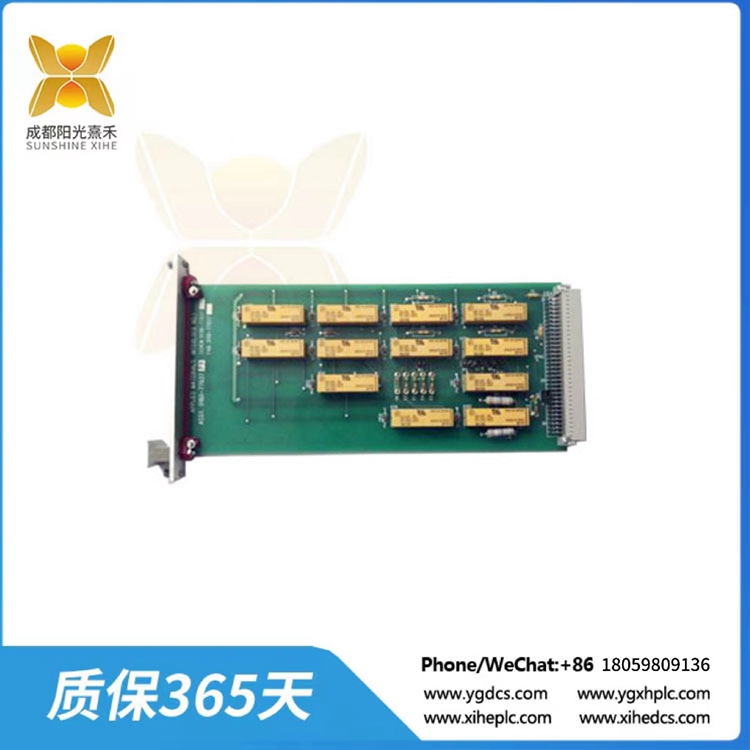

0100-77037 汽輪機安全監測TSI系統

汽輪機監控儀表(TSI)系統對汽輪機轉速、軸向位移、高低壓缸相對膨脹、偏心、絕對膨脹、軸承振動、軸瓦振動等重要汽輪機參數進行監測和測量。當測量值達到設定的報警值時，發出報警信號警告操作人員。當達到設定的危險動作值時，輸出控制信號送ETS渦輪緊急中斷系統(發動機溫度開關)跳閘。同時，TSI系統還可以將現場采集到的監測信號通過其信號緩沖輸出接口發送給TDM水輪機振動分析系統，實現異常報警、故障診斷、故障查詢、計算分析等功能。因此，TSI系統的重要性不言而喻。

一、概述
目前國內三大汽輪廠，生產660MW及以上汽輪發電機組，TSI系統一般都是進口的，以德國epro、美國Bentley (BENTLY NEVADA)、瑞士Vibro-Meter三種設備最為常見。TSI系統由相應的渦輪自動化控制公司根據具體的測量參數范圍進行配置。但是，由于技術標準的實施與電廠實施的不一致，系統配置普遍違反了《國家能源安全[2014]161國家能源局關于防止電力生產事故的二十五條重點要求》、《DL/T-261火電廠熱力自動化系統可靠性評價導則》，存在安全隱患。降低了熱力設備的可靠性，為發電機組的安全穩定運行埋下了隱患。下面以某電廠660MW超臨界機組TSI系統配置為例，談?wù)務J識和看法。

2. 系統配置
汽輪機為國內某公司生產的CLNZK660-24.2/566/566超臨界、1中間再熱、3缸4排汽、直接空凝式汽輪機。機組采用高、中壓、恒壓、定滑聯合啟動方式。TSI系統采用美國賓利公司生產的3500監控系統。該系統的設計由其下屬的自動化控制公司完成。系統配置2個3500/05儀表框，每個儀表框配置2個冗余3500/15電源模塊。為機架內所有監控模塊和外部傳感器、前驅提供工作電源，滿足機架內所有負載需求。每臺儀器機架配有一個機架接口模塊3500/22，該模塊必須安裝在機架的第一個槽位(靠近電源)。每個儀表框架配置一個通信網關模塊3500/92，通過以太網TCP/IP和串行(RS232/RS422/RS485)通信協議，與DCS分散控制系統進行數據通信，將各框架的監測數據和狀態與過程控制等自動化系統集成。除上述基本模塊外，系統設計的具體監控功能模塊配置如下:
1、系統配置兩個鍵相模塊3500/25，每個鍵相模塊接收一個渦流傳感器輸入信號，并將該信號轉換為數字鍵相信號。一張卡的關鍵相位輸出信號發送到偏心監測模塊作為偏心測量系統的參考，另一張卡的關鍵信號輸出用于發送燃?xì)夤β式菧y量系統。
2、系統配備5個大軸相對振動檢測儀模塊3500/42M，每個模塊有4個輸入通道，用于測量1~ 9號汽輪發電機軸的X、Y方向振動并輸出運行停機。在具體通道分布中，#1長軸X、Y方向、#2長軸X、Y方向振動分布在一張卡上，#3長軸X、Y方向、#4長軸X、Y方向振動分布在一張卡上，依次類推，振動保護采用單點保護、單繼電器輸出。
3、系統配備3個絕對軸承振動檢測模塊3500/42M，用于測量#1~#9汽輪發電機軸承蓋的振動。在具體通道分布中，#1、#2、#3、#4汽輪發電機軸承蓋振動分布在一個卡鉗上，#5、#6、#7、#8汽輪發電機軸承蓋振動分布在一個卡鉗上，#9汽輪發電機軸承蓋振動是一個單獨的卡鉗，報警輸出采用單點報警，單繼電器輸出，無停機保護。
4、系統配有變速/零檔sp

0100-77037 汽輪機安全監測TSI系統

Turbine Supervisory Instrumentation (TSI) system monitors and measures turbine speed, axial displacement, relative expansion of high and low pressure cylinder, eccentricity, absolute expansion, bearing vibration, bearing cap vibration and other important turbine parameters. When the measured value reaches the set alarm value, an alarm signal is issued to warn the operator. When the set dangerous action value is reached, the output control signal is sent to the ETS turbine emergency interrupting system (Engine Temperature Switch) for tripping. At the same time, the TSI system can also send the monitoring signal collected on site to the TDM turbine vibration analysis system through its signal buffer output interface to achieve abnormal alarm, fault diagnosis, fault query, calculation and analysis, etc. Therefore, the importance of the TSI system is self-evident.

I. Overview
At present, the three major domestic steam turbine plants, the production of 660MW and above turbine generator units, TSI system is generally imported, with Germany epro, the United States Bentley (BENTLY NEVADA), Switzerland Vibro-Meter three equipment is the most common. The TSI system is configured by the respective turbine automation control company according to the specific range of measurement parameters. However, due to the inconsistency between the implementation of the technical standards and the implementation of the power plant, the system configuration is generally in violation of the “National Energy Safety [2014]161 State Energy Administration to prevent power production accidents of the twenty-five key requirements”, “DL/T-261 thermal Power Plant thermal automation system Reliability Evaluation Guidelines”, safety hazards. The reliability of thermal equipment is reduced, and hidden dangers are laid for the safe and stable operation of the generator set. The following takes the TSI system configuration of a 660MW supercritical unit in a plant as an example to talk about understanding and views.

2. System configuration
The steam turbine is CLNZK660-24.2/566/566 supercritical, one intermediate reheating, three cylinder and four exhaust steam, direct air condensing steam turbine manufactured by a domestic company. The unit adopts the combined starting mode of high and middle pressure, constant pressure and fixed-sliding operation mode. The TSI system uses the 3500 monitoring system produced by Bentley, USA. The design of the system is completed by its subsidiary automation control company. The system is configured with two 3500/05 instrument frames, and each instrument frame is configured with two redundant 3500/15 power modules. Provide working power for all monitoring modules and external sensors and precursors within the frame to meet all load requirements within the frame. Each instrument frame is equipped with a frame interface module 3500/22, in particular, the module must be placed in the first slot in the frame (next to the power supply). Each instrument frame is configured with a communication gateway module 3500/92, which integrates the monitoring data and status of all frameworks with process control and other automation systems through Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols, such as data communication with DCS decentralized control system. In addition to the above basic modules, the specific monitoring function module of the system design is configured as follows:
1, the system is configured with two key phase module 3500/25, each key phase module receives one eddy current sensor input signal, and converts this signal to digital key phase signal. The key phase output signal of one card is sent to the eccentricity monitoring module as the reference of the eccentricity measurement system, and the key signal output of the other card is used to send the gas power Angle measurement system.
2, the system is equipped with 5 large shaft relative vibration detector modules 3500/42M, each module has 4 input channels, used to measure the X and Y direction vibration of the #1~#9 turbogenerator shaft and output the operation stop. In the specific channel distribution, the #1 major axis X, Y direction, #2 major axis X, Y direction vibration distribution on a card, #3 major axis X, Y direction, #4 major axis X, Y direction vibration distribution on a card, and so on, vibration protection using a single point protection, single relay output.
3, the system is equipped with 3 pieces of absolute bearing vibration detector module 3500/42M, used to measure the vibration of #1~#9 turbogenerator bearing cover. In the specific channel distribution, the #1, #2, #3, #4 turbo generator bearing cover vibration is distributed on a clamp, #5, #6, #7, #8 turbo generator bearing cover vibration is distributed on a clamp, #9 turbo generator bearing cover vibration is a separate clamp, the alarm output adopts a single point alarm, single relay output, no stop protection.
4, the system is equipped with a speed/zero sp
