描述

05704-A-0146 消防控制卡

05704-A-0146 消防控制卡

Manufacturer : Honeywell
Product No. : 05704-A-0146
Product Type : 5704F Fire Control Card
4 Fire Zone Inputs.
2 Switched DC Outputs.
Single 3 Function Remote Input.
Up to 16 Configurable Relay Outputs.
Dimensions (LxWxH) : 17.2cm x 2.5cm x 13.2cm
Weight : 0.16 Kg
Shipping Weight : 1.5 Kg

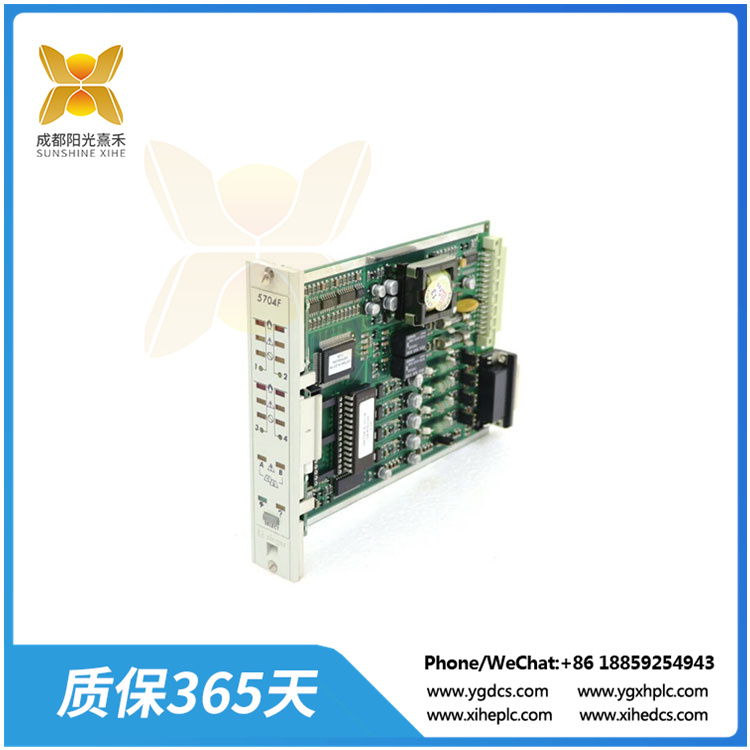

5704F Fire Control Card (Part Number 05704-A-0146)
The 5704F Four Channel Fire Control Card providescontrol, display and alarm facilities for up to fourseparate loops (or zones) of fire detection. Dependingupon the type of detector each loop may have morethan one detector. The card also provides two faultmonitored switched dc outputs and a minimum ofsix volt free outputs. The front panel uses clear LEDdisplays to indicate the status of all input and outputloops and card status. A push-button is provided forselecting the card for use with the Fire Status Paneland Engineering Card.

The operation of the control card is microprocessorcontrolled and is fully definable for a wide range ofconnected fire detectors and application requirements. The setup information is stored in a non-volatilememory on the fire card. A number of user selectablejumper links are also provided for compatibility withsome system requirements.

The single fire card covers all common applications,no other plug-in modules are required.

Control Functions
The 5704F Four Channel Control Card carries out thecontrol functions for up to four loops of fire detectionas follows:

a. Provides the necessary voltages and currents todrive the connected sensors.

b. Processes the incoming sensor signals.

c. Compares each loop input signal level with pre-defined fault andalarm limits.

d. When the pre-defined limits are exceeded, raises the alarm or faultindications by lighting up front panel LEDs and operating the relayand/or switched dc outputs.

e. Informs other cards of the input status information.

f. Self validates the operation of its circuit components, softwareoperation and the condition of the loop inputs, remote input and dcswitched outputs.
