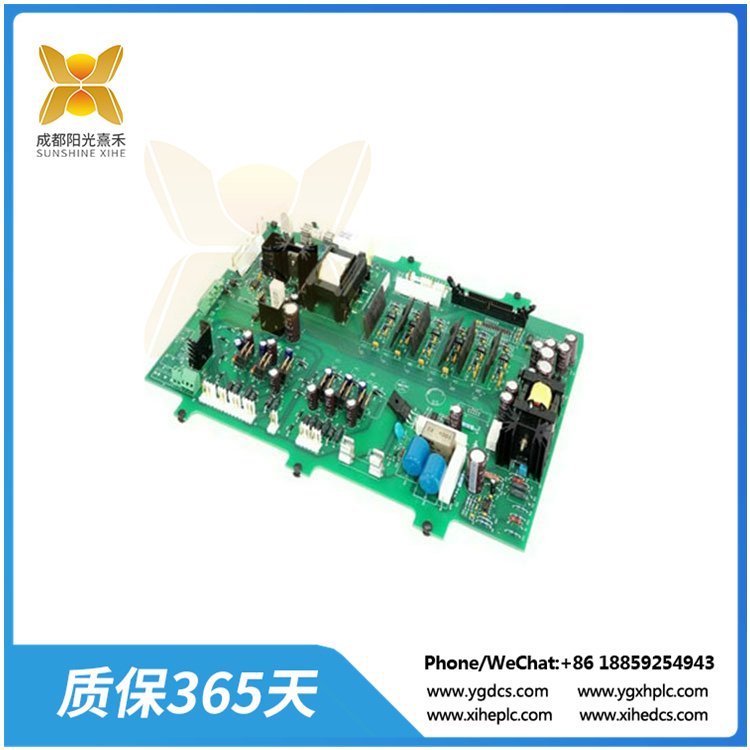

1336-BDB-SP39D? ? PCB柵極驅動板

制造商:羅克韋爾自動化
品牌:艾倫-布拉德利
部件號/目錄號: 1336-BDB-SP39D
描述:PCB柵極驅動板
電壓:460V AC

Allen-Bradley 1336-BDB-SP39D是由羅克韋爾自動化制造的柵極驅動PC板，也稱為74101-169-82部件。這個特定的PC板有一個460V交流輸入電壓，以及250馬力的額定值。它可以與1336個具有E幀大小和250 HP輸出的驅動器一起使用。每個1336驅動器只能安裝一個1336- bdb – sp39d PC板套件。五種一般類型的驅動器可用于1336系列，這些是FORCE, PLUS, PLUS II, CLASSIC和IMPACT驅動器。這些驅動器與額定HP從3到800 HP的交流驅動器兼容，PLUS, PLUS II和CLASSIC驅動器用于要求一般性能的應用，IMPACT和FORCE驅動器用于高性能操作。這些驅動器，包括1336-BDB-SP39D PC板，具有NEMA類型1,4,12典型外殼等級。為了保護驅動器，它配備了各種安全功能，如欠壓和過壓，輸出短路，輸出接地故障和電機過載。它們還帶有驅動器終端30上的硬件啟用，這是一個不可編程的輸入。打開該輸入將導致1336-BDB-SP39D驅動器中斷，并經歷一個停止過程，而不是遵循所選擇的停止模式。它們還具有UL面板識別，以及用于通信的各種端口，例如增強型DeviceNet端口，DeviceNet端口，RS232/422/485端口，模擬I/O和單點RIO?？捎糜?336驅動器的人機界面模塊(HIM)有模擬，數字，編程和空白HIM。

1336-BDB-SP39D是Allen-Bradley組件，主要被稱為PCD柵極驅動板。這是一個1級，主要組裝組件，主要用于為驅動器的主板和隔離板提供電源。

該電子元件還通過端子排TB1提供驅動器的終端。該端子組接受460VAC的電源輸入，然后通過PCB驅動器的槽式連接進行內部分配，該連接專為帶狀和跳線電纜設計。這些電纜建立端到端連接到其他電子板，包括主板，隔離板，甚至絕緣柵雙極晶體管(IGBT)電路。

在460VAC輸入時，這個PCD驅動器設法通過輸出連接提供和輸出250HP的功率。與此電子元件兼容的驅動器是1336 Plus, Plus II，力和沖擊可調頻率交流驅動器。這些組件的輸出功率為250HP，安裝在Frame E驅動器上。框架E驅動是指一系列可調頻率的交流驅動器，具有共同的尺寸和重量。這種分組有助于更容易地定義驅動器的物理屬性以及輸出特性。

每個磁盤只能使用1個1336-BDB-SP39D。根據設計和原理，不可能同時使用兩(2)個或更多。該驅動器位于驅動器的底盤和主控板之間。它由專用安裝板隔開，這也允許通過將安裝板從其安裝點上拆卸下來作為一個單元來拆卸該組件。

1336-BDB-SP39D? ?PCB柵極驅動板

Manufacturer ：Rockwell Automation
Brand ：Allen-Bradley
Part Number/Catalog No. ：1336-BDB-SP39D
Description ：PCB Gate Drive Board
Voltage ：460V AC

The Allen-Bradley 1336-BDB-SP39D is a gate drive PC board manufactured by Rockwell Automation that is also known as the 74101-169-82 part. This specific PC board has a 460V AC input voltage, as well as a 250 HP rating. It can be used with 1336 drives that have an E frame size and 250 HP output. Only one 1336-BDB-SP39D PC board kit can be installed on each 1336 drive. Five general types of drives are available for the 1336 series and these are FORCE, PLUS, PLUS II, CLASSIC, and IMPACT drives. These drives are compatible with AC drives that have HP ratings that range from 3 to 800 HP, with the PLUS, PLUS II, and CLASSIC drives used for applications that require general performance and the IMPACT and FORCE drives for high-performance operations. These drives, including the 1336-BDB-SP39D PC board, have a NEMA Type 1, 4, 12 typical enclosure rating. To protect the drive, it is equipped with various safety features, such as under and over voltage, output short circuits, output ground fault, and motor overload. They also come with a hardware enable found on the drive’s Terminal 30, which is a non-programmable input. Opening this input will result in the interruption of the 1336-BDB-SP39D drive and undergo a coast to stop instead of following the chosen stop mode. They also have a UL panel recognition, as well as various ports for communication, such as Enhanced DeviceNet ports, DeviceNet ports, RS232/422/485 ports, analog I/O, and single-point RIO. Human interface modules (HIM) available for 1336 drives are analog, digital, programmer, and blank HIM.

The 1336-BDB-SP39D is an Allen-Bradley component that is mainly called as a PCD Gate drive board. This is a Level1, Major Assembly component that is primary used to provide power to the drive’s main and isolation boards.

This electronic component also provides the termination of the drive through the terminal block TB1. This terminal block accepts the power supply input of 460VAC which is then internally distributed through the PCB drive’s slotted connections designed for ribbon and jumper cables. These cables establish end to end connection to the other electronic boards which incudes the main board, isolation board and even the Insulated Gate Bipolar Transistor (IGBT) circuit.

At 460VAC input, this PCD driver manages to provide and output power of 250HP through is output connection. Drives that are compatible to use this electronic component are 1336 Plus, Plus II, Force and Impact adjustable Frequency AC drives. Being in the output category of 250HP, these components is installed to a Frame E drive. Frame E drive refers to a range of adjustable frequency AC drives with common dimensions and weight. This grouping helps in easier definition of physical property of the drive as well as the output characteristics.

Use only One (1) 1336-BDB-SP39D per drive. By design and principle, it is impossible to use Two (2) or more at the same time. This drive is located between the chassis of the drive and the main control board. It is separated by its dedicated mounting plate which also allows this component to be removed as a unit by detaching the mounting plate from its installation point.
