1336-SN-SP10A 74101-363-51 逆變器緩沖器

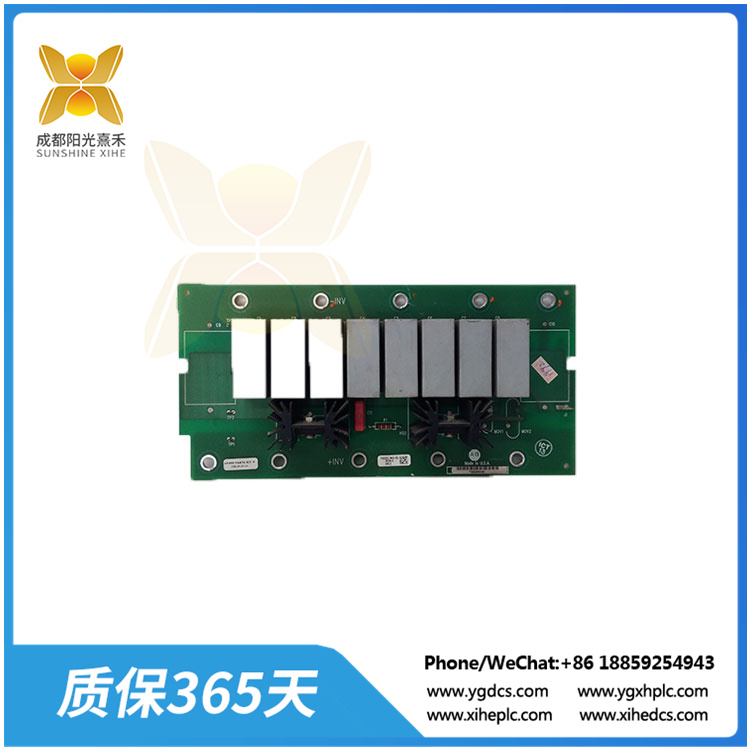

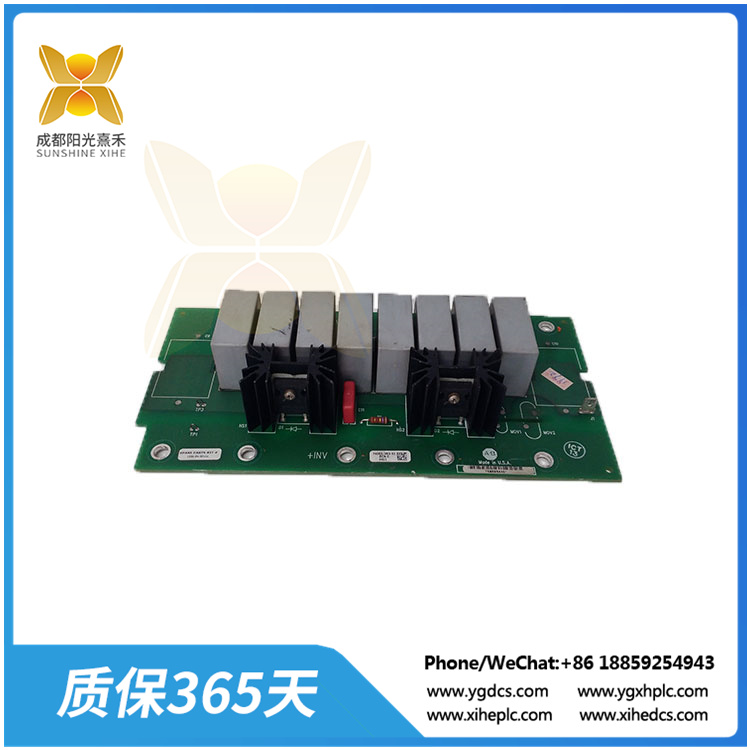

描述:Allen-Bradley 1336- sn – sp10a是Bulletin 1336驅動器的一個組件。該單元是用于1336 Plus, Plus II，沖擊和力驅動的逆變器緩沖器。這用于幀E驅動器。

品牌:Allen-Bradley /羅克韋爾自動化
系列:1336 PCB板
部件編號:1336-SN-SP10A

產品類型:帶緩沖PCB的備件套件
兼容性:1336 PLUS, PLUS II，力和沖擊

1336- sn – sp10a用于Allen-Bradley的1336可調頻率交流驅動器。它特別兼容1336 Plus, Plus II，沖擊和力驅動器。本產品為二級裝配部件的備品備件。每個驅動器使用三(3)減震器套件。

該緩沖器印刷電路板(PCB)用于幀E或輸出功率為150、200、250和X300HP的驅動器。緩沖板安裝在驅動器的主機箱內部，位于轉換器艙內橋式散熱器的一側。

當更換這個板時，電源必須從驅動器中取出，最好是鎖定在訪問之外。即使驅動器的電源被移除，也不要立即觸摸組件，因為它具有短期存儲電壓的電容器。在繼續之前，請測量驅動器的逆變器托架上的TB1端子座上的+DC和-DC。同時，請嚴格遵守靜電防護措施，避免損壞其他固態設備。

要卸載緩沖板，請拆卸終止于+06和-16插接連接的引線。根據接線端子的出處正確地標記這些電線。卸載位于81、82和83端子的引線。相應地給電線貼上標簽。從四(4)個塑料支架上卸下驅動器。安裝新板，根據四(4)個孔對齊板，并將標記的引線終止到適當?shù)牟褰舆B接。

1336-SN-SP10A 74101-363-51 逆變器緩沖器

Description: The Allen-Bradley 1336-SN-SP10A is a component of the Bulletin 1336 drives. This unit is an Inverter Snubber used for 1336 Plus, Plus II, Impact and Force drives. This is used for Frame E drives.

Brand ：Allen-Bradley / Rockwell Automation
Series ：1336 PCB Boards
Part Number ：1336-SN-SP10A

Product type ：Spare part kit with snubber PCB
Compatibility：1336 PLUS, PLUS II, FORCE and IMPACT

The 1336-SN-SP10A is used for the 1336 Adjustable Frequency AC drive of Allen-Bradley. It is particularly compatible for the 1336 Plus, Plus II, Impact and Force drives. This product is a spare part item that is a Level 2 Assembly component. Three (3) Snubber kits are used for each drive.

This Snubber Printed Circuit Board (PCB) is used for drives with Frame E or those with output power of 150, 200, 250 and X300HP. The snubber board is installed inside within the drive’s main chassis, located on the side of the bridge heatsink in the converter bay.

When replacing this board, power must be removed from the drive and ideally locked out from access. Do not immediately touch the components even if the drive’s power is removed as it has capacitor that store voltage for a short period. Before proceeding, measure the +DC and -DC on the TB1 Terminal Block which may be found in the inverter bay of the drive. Additionally, observe electrostatic discharge preventive measures to prevent damage to other solid-state devices.

To uninstall the snubber board, remove the leads terminated at +06 and -16 stab-on connections. Tag these wires properly according to the terminal where it came from. Uninstall also the leads located at 81, 82 and 83 terminals. Tag the wires accordingly. Remove the drive from the Four (4) plastic stand-offs. Install the new board by aligning the board according to the Four (4) standoff holes and terminating the tagged leads to the appropriate stab-on connections.
