描述

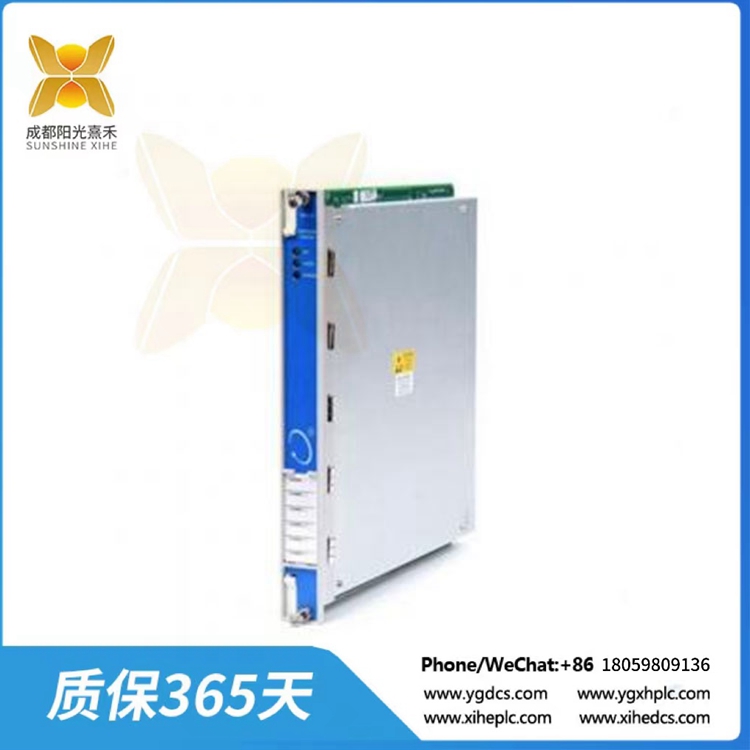

133835-01 TC 隔離 I/O 模塊，內部端子

描述
133835-01模塊提供六個溫度監測通道，并接受電阻溫度檢測器(RTD)和熱電偶(TC)溫度輸入。這些模塊調節這些輸入，并將它們與用戶可編程報警設定值進行比較。3500/60和3500/61提供相同的功能，除了3500/61為其六個通道中的每個通道提供記錄器輸出，而3500/60則沒有。

用戶編程模塊執行RTD或TC溫度測量使用3500機架組態軟件。不同的I/O模塊在RTD/TC非隔離或TC隔離版本中可用。用戶可以配置RTD/TC非隔離版本，以接受TC或RTD輸入，或TC和RTD的混合輸入。TC隔離版本提供250 Vdc的通道到通道隔離，以防止外部干擾。

當在三模冗余(TMR)配置中使用時，溫度監控器必須以三個為一組相鄰安裝。在此配置下，系統采用兩種投票方式，以保證準確運行，避免單點故障。

133835-01 TC 隔離 I/O 模塊，內部端子

Description
The 133835-01 module provides six temperature monitoring channels and accepts resistance temperature detector (RTD) and thermocouple (TC) temperature input. These modules adjust these inputs and compare them to user programmable alarm setpoints. The 3500/60 and 3500/61 provide the same functionality, except that the 3500/61 provides logger output for each of its six channels, while the 3500/60 does not.

User programming modules perform RTD or TC temperature measurements using 3500 rack configuration software. Different I/O modules are available in RTD/TC non-isolated or TC-isolated versions. Users can configure the RTD/TC non-isolated version to accept TC or RTD input, or a mixture of TC and RTD input. The TC isolated version provides 250 Vdc channel-to-channel isolation to prevent external interference.

When used in a three-mode redundancy (TMR) configuration, the temperature monitors must be installed next to each other in groups of three. In this configuration, the system uses two voting modes to ensure accurate operation and avoid single points of failure.
