描述

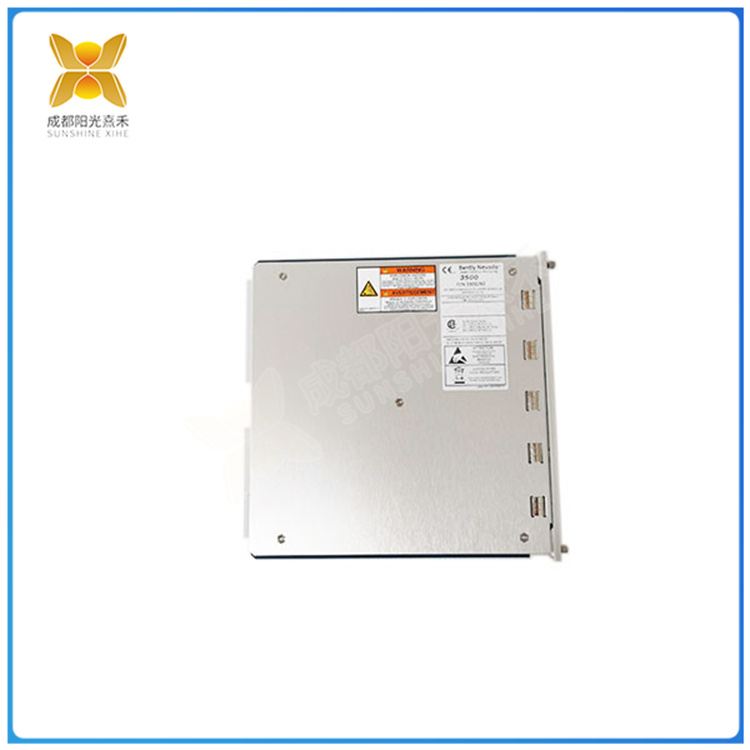

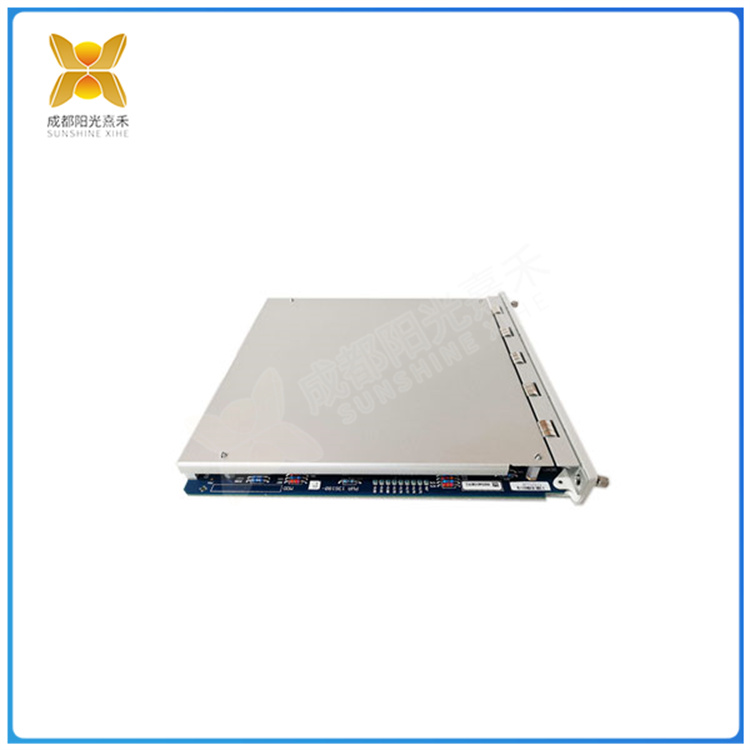

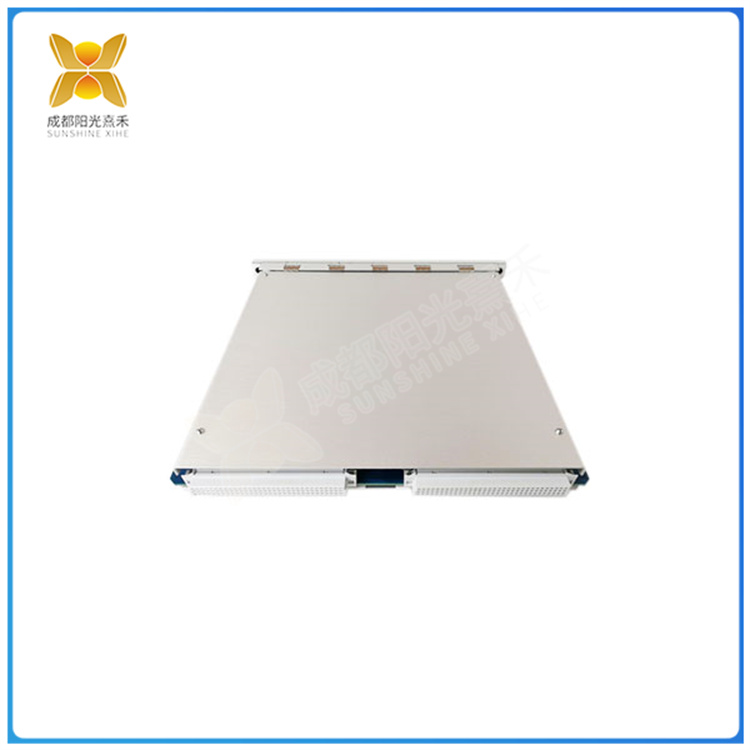

136180-01 頻率范 圍從0 到8kHz 的位移或振動測量

它主要應用在要求大線性范圍的下列測量：

軸向（推力）位移、往復式壓縮機活塞桿位移或下降、蒸汽輪機的差脹、 轉速計和零轉速、 相位參考（鍵相位）信號。

用于頻率范 圍從0 到8kHz 的位移或振動測量，典型應用包括徑向振動和位移、軸向位移以及鍵相位測量。

安裝

軸振動測量：一般安裝X、Y方向兩個傳感器

軸位移測量：軸向位移的變化

鍵相測量：通過凹槽或凸鍵產生的脈沖信號，得出轉速或鍵相值

支持的振動監測器和模塊：2300/20、1900/65A、3500/42等3500框架系統監測。

趨近式傳感器的校準：用本特利TK-3E渦流探頭校驗儀校驗傳感器的線性。

本特利(Bently Nevada)330500-02-00壓電式振動速度傳感器是用于測量機器的絕對軸承箱、外殼或結構振動。由于330500采用固態電子元件，可以垂直、水平或任何方向角度安裝。廣泛應用于發電廠、煉油廠、化工廠、鋼鐵廠、水泵廠、風機廠等企業單位。對汽輪機、水輪機、鼓風機、壓縮機、空分機、齒輪箱、水泵等大型旋轉機械軸的殼體進行在線測量和保護。

136180-01 頻率范 圍從0 到8kHz 的位移或振動測量

It is mainly used in the following measurements requiring large linear ranges:

Axial (thrust) displacement, piston rod displacement or decline of reciprocating compressors, differential expansion of steam turbines, tachometer and zero speed, phase reference (key phase) signals.

For displacement or vibration measurement in frequency ranges from 0 to 8kHz, typical applications include radial vibration and displacement, axial displacement, and bond phase measurement.

Install

Shaft vibration measurement: Generally installed X, Y direction two sensors

Axial displacement measurement: change in axial displacement

Key phase measurement: Through the pulse signal generated by the groove or convex key, the speed or key phase value is obtained

Supported vibration monitors and modules: 300/20, 1900/65A, 3500/42 and other 3500 frame system monitoring.

Calibration of the approach sensor: Check the linearity of the sensor with the Bentley TK-3E eddy current probe calibrator.

The Bently Nevada 330500-02-00 piezoelectric vibration velocity sensor is used to measure the absolute bearing box, housing or structural vibration of a machine. Because the 330500 uses solid-state electronics, it can be installed vertically, horizontally or at any directional Angle. Widely used in power plants, oil refineries, chemical plants, iron and steel plants, pump plants, wind factories and other enterprises. The shell of large rotating machinery shaft such as steam turbine, water turbine, blower, compressor, air engine, gear box and water pump is measured and protected on line.
