描述

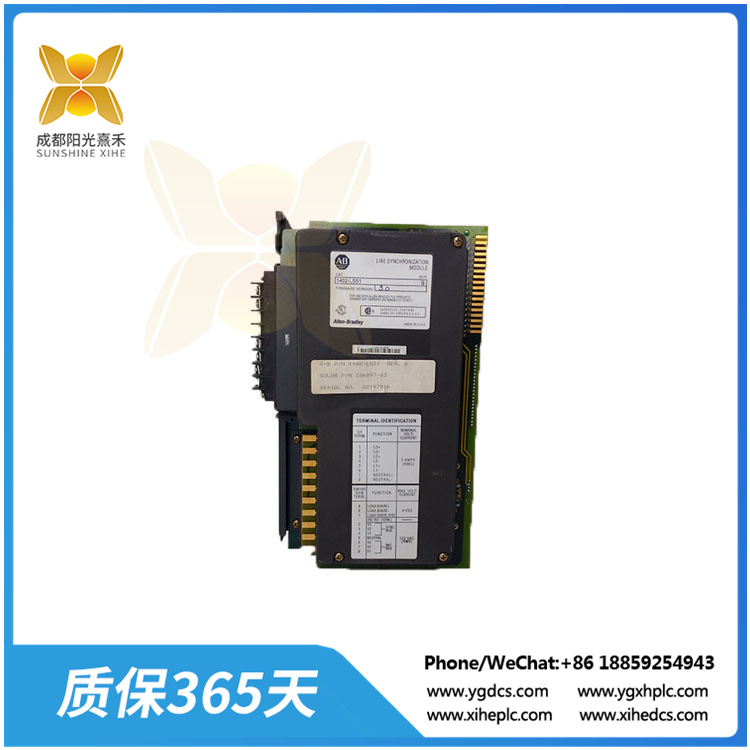

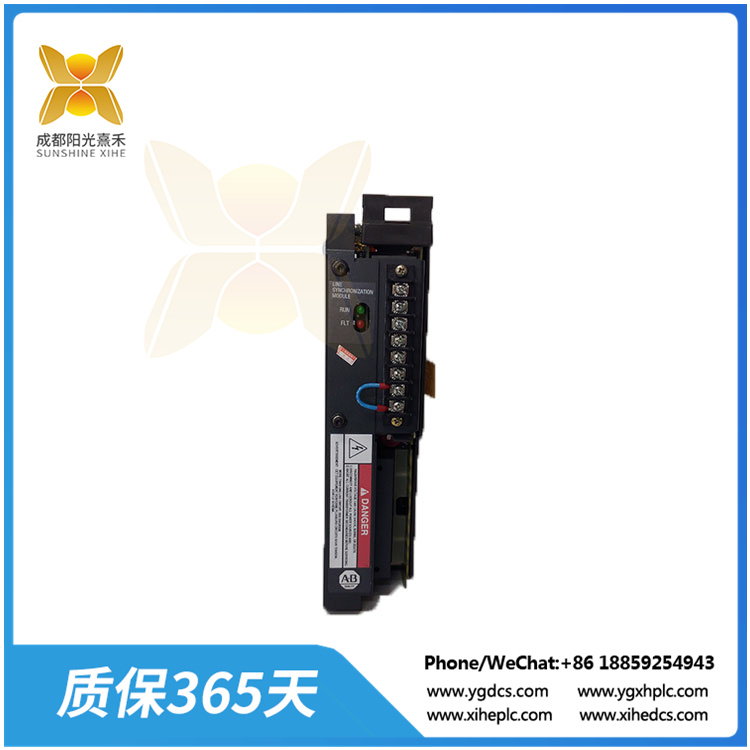

1402-LS51 線路同步模塊

描述:1402-LS51是一種線路同步模塊，設計與Allen-Bradley的1771 PLC系列不兼容。該模塊是一個兩(2)插槽模塊，與1771系列具有相同的外形因素。該模塊能夠測量5 A，滿量程電流和100/120 VAC電壓。主要用于不同三相系統的同步，可進行發動機調速器控制，并可作為多功能功率計量裝置。本文內容由dosupply.com編寫和編譯，不可復制。

Allen-Bradley 1402-LS51是一款線路同步模塊。該模塊主要用于同步兩個不同的三相系統。該模塊是一個雙槽模塊，直接安裝在1771艾倫-布拉德利的底盤上。1402-LS51提供自動同步、負載分擔和高速電力系統監控功能。1402-LS51的電壓匹配誤差為0.05%;頻率匹配誤差，或在0.01 Hz分辨率下滑動;同步總線與參考總線相位匹配誤差分辨率為1度;負載共享誤差，以0.000和+/- 1.000之間的標量量測量)。該模塊的同步功能提供了各種狀態反饋，如頻率在限制范圍內;電壓在限定范圍內;相限;同步模式?jīng)_突失敗;相位旋轉失配故障(僅3相同步模式)無參考母線電壓存在故障;無同步母線電壓存在故障;參考母線過壓故障和同步母線過壓故障。該模塊的功率計功能包括廣泛的可測量和計算參數，特別是以安培為單位的電流(每相和中性);以安培為單位的平均電流;以安培為單位的正序電流;負序電流(安培);電流不平衡電壓百分比(以伏特為單位)(每相L-L，在4線制系統中也是L-N);平均電壓(以伏特為單位)(L-L，在4線制系統中也是L-N);正序電壓以伏為單位，負序電壓以伏為單位;電壓不平衡百分比;頻率(Hz);相位旋轉(ABC, ACB);功率因數百分比(總功率，在4線制系統上也是每相功率)瓦數(總功率和每相功率);VA(4線制系統的總和每相);VAR(4線制系統的總和每相);無功功耗(千伏安小時)和需求(安培、伏安、瓦)。

1402-LS51模塊是由艾倫-布拉德利/羅克韋爾自動化制造的線路同步模塊。Allen-Bradley 1402-LS51線路同步模塊是固態模塊，而不是硬接線的機電模塊，這意味著它適合在各種工業應用中使用，但不應用于需要功率突然激增的安全功能，如緊急停止。試圖將此固態模塊用于緊急功能可能會損壞該模塊、導致其故障、無法避免其用于應對的緊急情況或錯誤，或?qū)τ脩粼斐蓚Αllen-Bradley 1402-LS51線路同步模塊的目的是通過負載分擔、自動同步和高速電力系統監控等功能來同步2個不同的三相系統。

Allen-Bradley 1402-LS51線路同步模塊有2個插槽，它可以安裝在由Allen-Bradley制造的標準1771 I/O機箱中。它可以作為一個多功能的數字電源監視器，用于2個系統，它正在使用同步。它測量兩個連接的三相系統的所有適當參數，以便為同步過程提供適當?shù)恼`差和控制信號。始終將Allen-Bradley 1402-LS51線路同步模塊安裝在干燥清潔的工業環境中，該環境不包含強磁場，強電場或恒定的高熱源。此同步模塊只能在0到60攝氏度的工作溫度范圍內使用。它可以安裝在本地機架中，以使其數據傳輸速率盡可能高效。

1402-LS51 線路同步模塊

Description: The 1402-LS51 is a Line Synchronization Module that is designed in incompatibility with Allen-Bradley’s 1771 PLC series. This module is a Two (2) slot module with the same form factor as the 1771 series. This module is capable of measuring 5 A, full-scale current, and 100/120 VAC voltage. It is mainly utilized to synchronize different 3-phase systems, capable of performing engine governor control and acting as a multi-function power metering device. This content was written and compiled by dosupply.com and should not be copied.

The Allen-Bradley 1402-LS51 is a Line Synchronization Module. This module is mainly utilized to synchronize Two (2) different 3-phase systems. This module is a dual-slot module that directly mounts to a 1771 chassis of Allen-Bradley. The 1402-LS51 provides automatic synchronization, load sharing, and high-speed power system monitoring. The 1402-LS51 can perform voltage match error in steps of 0.05 percent; frequency match error, or slip in 0.01 Hz resolution; synchronizing bus to reference bus phase match error in a resolution of 1 degree; load sharing error that is measured in scalar quantity between 0.000 and +/- 1.000). The module’s synchronization feature provides a variety of status feedbacks such as frequency within limits; voltage within limits; phase within limits; synchronization mode conflict failure; phase rotation mismatch failure (3 phase synchronization mode only) no reference bus voltage present failure; no synchronizing bus voltage present failure; reference bus over-voltage failure and synchronizing bus over-voltage failure. The power meter capabilities of this module include an extensive range of measurable and calculated parameters specifically, current in Amps (per phase & neutral); average current in amps; positive sequence current in amps; negative sequence current in Amps; percent current unbalance voltage in Volts (per phase L–L, also L–N on 4–wire systems); average voltage in volts (L–L, also L–N on 4–wire systems); positive sequence voltage in volts negative sequence voltage in volts; percent voltage unbalance; frequency in Hz; phase rotation (ABC, ACB); power factor in percent (total, also per phase on 4–wire systems) watts (total & per phase on 4–wire systems; VA (total & per phase on 4–wire systems); VAR (total & per phase on 4–wire systems); power consumption in kW hours reactive power consumption in kVAR hours and demand (Amps, VA, & Watts).

The 1402-LS51 module is a line synchronization module that is manufactured by Allen-Bradley/Rockwell Automation. The Allen-Bradley 1402-LS51 line synchronization module is a solid-state module, not a hardwired electromechanical module, which means that it is suitable for use in a variety of industrial applications, but it should not be used for safety functions that require sudden surges in power such as emergency stopping. Attempting to use this solid-state module for emergency functions may damage it, cause it to malfunction, fail to avert the emergency situation or error that it was used to respond to, or cause injury to the users. The purpose of the Allen-Bradley 1402-LS51 line synchronization module is to synchronize 2 different 3-phase systems through functions like load sharing, automatic synchronization, and high-speed power system monitoring.

The Allen-Bradley 1402-LS51 line synchronization module has 2 slots and it can be mounted in standard 1771 I/O chassis that are also manufactured by Allen-Bradley. It can be used as a multi-function digital power monitor for the 2 systems that it is being used to synchronize. It measures all the appropriate parameters from the 2 connected 3-phase systems so that it can provide the appropriate error and control signals for the synchronization process. Always install the Allen-Bradley 1402-LS51 line synchronization module in a dry and clean industrial environment that contains no strong magnetic fields, strong electrical fields, or sources of constant high heat. This synchronization module should only be used in an operating temperature range of 0 to 60 degrees Celsius. It can be installed in a local rack to make its data transfer rate as efficient as possible.
