描述

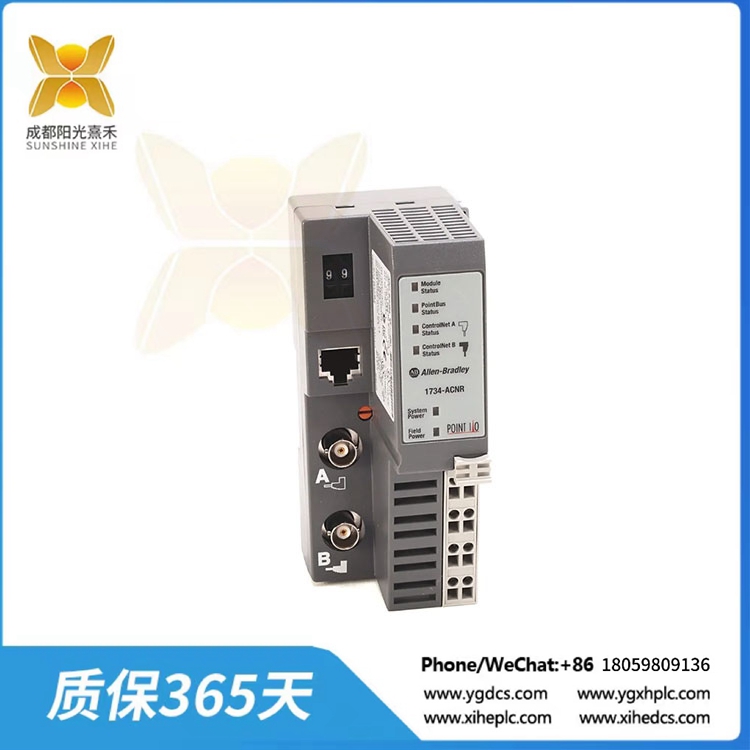

1734-ACNR 螺絲型或彈簧夾型單片式端子座

1734-ACNR I/O 系列具有適合于靈活及低成本應用場合的模塊化 I/O，是成功實現控制系統設計和操作的關鍵。作為羅克韋爾自動化集成架構的主要成員，其完善的診斷功能和可組態特性使產品可應用于任何自動化系統，并通過標準化設計降低工程成本。它可在遠程設備面板、本地控制面板中使用，并且可以從多個位置 ( 包括 Internet) 訪問。本產品完全適應用戶需求，具有 1 到 8 點的密度，可減小系統成本和尺寸。

特性包括：用于快速故障排除的通道級診斷、可節省資金的多種端接選項和靈活性、機柜空間和調試 / 故障排除時間、在同一總線上混合/ 匹配安全 I/O 的能力以及可實現本地控制和快速響應的 DeviceLogix。此外，還提供自組態模塊，以減少 / 簡化設計和庫存。

1734-ACNR I/O 有 4 個主要組成部分：
? I/O 模塊提供現場接口和系統接口電路
? 通信接口模塊提供網絡接口電路
? 端子座單元為現場側連接提供接線和信號端接，并為背板提供系統電源
? 電源分配模塊提供 POINT I/O 系統的可擴展性以及混合各種信號類型的靈活性

1734-ACNR I/O 模塊每個模塊提供 1 至 8 點。該 I/O 模塊通過通信接口連接到網絡，通信接口包括內置電源，可將輸入的 24V DC 電源轉換為 5V DC 背板電源。每種類型的通信接口 ( 網絡適配器 ) 最多支持 13至 17 個 I/O 模塊，最大提供 10A 電流。 I/O 模塊從背板上獲取電源供電。在使用外部電源的情況下，最多可將 POINT I/O 組件擴展至 63 個I/O 模塊或 504 個通道。

1734-ACNR 螺絲型或彈簧夾型單片式端子座

The 1734-ACNR I/O series features modular I/O for flexible and low-cost applications that are key to successful control system design and operation. As a key member of Rockwell Automation’s integrated architecture, its comprehensive diagnostic capabilities and configurable features enable the product to be applied to any automation system and reduce engineering costs through standardized design. It is available in remote device panels, local control panels, and can be accessed from multiple locations, including the Internet. This product is fully adapted to the needs of users, with a density of 1 to 8 points, which can reduce the system cost and size.

Features include channel-level diagnostics for rapid troubleshooting, multiple terminating options and flexibility to save money, cabinet space and debug/troubleshooting time, the ability to mix/match secure I/O on the same bus, and DeviceLogix for local control and fast response. In addition, self-configuration modules are available to reduce/simplify design and inventory.

1734-ACNR I/O has 4 main components:
? The I/O module provides field interfaces and system interface circuits
? Communication interface module provides network interface circuit
? The terminal block unit provides wiring and signal terminating for field side connections and provides system power to the backplane
? Power distribution modules provide scalability for POINT I/O systems and flexibility to mix various signal types

1734-ACNR I/O modules Each module offers 1 to 8 points. The I/O module is connected to the network through a communication interface that includes a built-in power supply that converts input 24V DC power to 5V DC backplane power. Each type of communication interface (network adapter) supports up to 13 to 17 I/O modules, providing a maximum of 10A current. The I/O module obtains power from the midplane. POINT I/O components can be expanded to 63 I/O modules or 504 channels with external power.
