描述

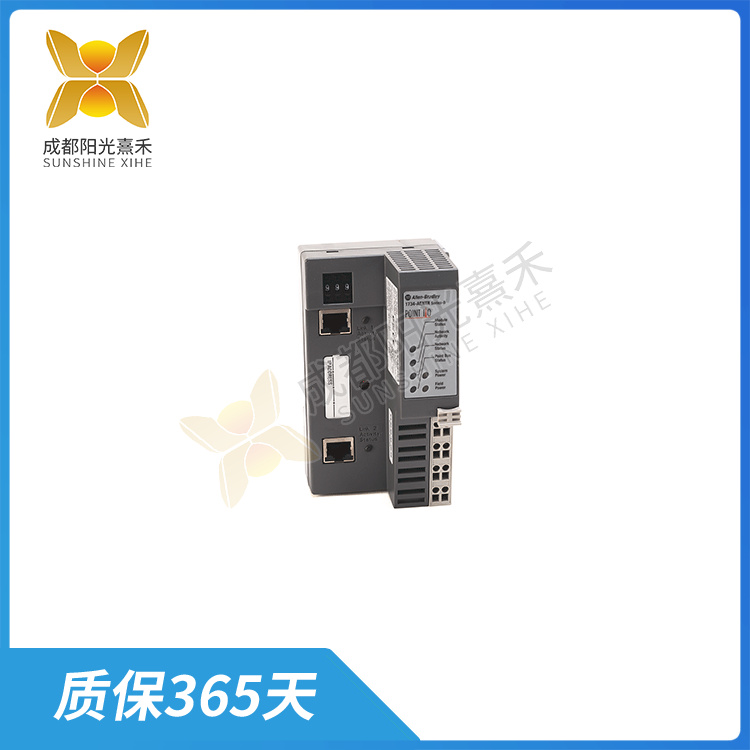

1734-AENTR 雙以太網點I/O通信模塊

Allen-Bradley 1734-AENTR是一個雙以太網點I/O通信模塊， 用于將點I/O機架連接到以太網I/P網絡中的中央控制器。該適配器能夠在環形、形和樹形拓撲中實現，并由外部24VDC電源供電。

1734-AENTR支持TCP/UDP/IP協議，使用5類或6類電纜建立物理連接。此適配器支持10/100 Mbit傳輸速度,具有自動協商功能。

可以通過指輪開關或使用BOOT-P DHCP實用程序來分配IP地址。在大多數應用中,該模塊配置有靜態IP地址。使用靜態IP地址，即使設備關機，IP地址也不會改變?；蛘撸撃K可以配置有動態IP地址。對于動態類型的地址，每次模塊重啟時，IP地址都會改變。這種模式適用于具有非常特殊要求的應用，因為它可能會因IP地址的突然變化而導致通信錯誤。

該模塊安裝在點輸入輸出系統的最左側，是唯一一個 與網絡和主控制器建立連接的模塊。它通過網絡將1/O數據從其本地I/O底板傳輸?shù)娇刂破?。此外，該點I/O適配器支持與不同掃描儀模塊的同時通信。

Allen-Bradley 1734-AENTR I/O是一個2端口以太網適配器， 以10到100 Mbits/s的速率提供以太網/IP網絡連接，半雙工或全雙工。它配有2個直通
端口、5類RJ-45連接器，用于支持環形或菊花鏈/線性網絡,以及現有的樹和星形網絡拓撲。這些以太網端C ]被配置為嵌入式交換機。該適配器是用于點I/O模塊的1734系列雙端口通信適配器的一部分。它使用封裝在標TCP/UDP/IP協議中的消息。5類額定雙絞線電纜用于接口。不需要網絡調度和路由表。

此外，1734-AENTR能夠同時支持多個控制器的連接。1734-AENTR適配器垂直安裝在DIN導軌上。 它配有用于設置網絡地址的筆壓指輪開關。設置網絡互聯網協議地址的其他方法包括從非易失性存儲器中檢索IP地址，并使用DHCP服務器(將模塊設置為啟用DHCP)。為了避免未經授權的控制或失控，請為I/O適配器分配一個固定的IP地址。如果使用DHCP實用程序，請確保它配置了與適配器相同的IP地址。

1734-AENTR 雙以太網點I/O通信模塊

Allen-Bradley 1734-AENTR is a dual Ethernet dot I/O communication module for connecting point I/O racks to a central controller in an Ethernet I/P network. The adapter can be implemented in ring, shape and tree topologies and is powered by an external 24VDC power supply.

1734-AENTR supports TCP/UDP/IP protocols and uses Class 5 or Class 6 cables to establish physical connections. This adapter supports 10/100 Mbit transfer speeds with auto-negotiation.

IP addresses can be assigned via a finger wheel switch or by using the BOOT-P DHCP utility. In most applications this module is configured with a static IP address. With a static IP address, the IP address does not change even if the device is turned off. Alternatively, the module can be configured with a dynamic IP address. For dynamically typed addresses, the IP address changes every time the module is restarted. This pattern is suitable for applications with very specific requirements, as it can cause communication errors due to sudden changes in IP addresses.

This module is installed on the far left side of the point input/output system and is the only module to establish a connection to the network and the main controller. It transfers 1/O data over the network from its local I/O baseboard to the controller. In addition, the point I/O adapter supports simultaneous communication with different scanner modules.

Allen-Bradley 1734-AENTR I/O is a 2-port Ethernet adapter that provides Ethernet /IP network connectivity at rates from 10 to 100 Mbits/s, half duplex or full duplex. It comes with 2 pass-through? Ports, Class 5 RJ-45 connectors for supporting ring or Daisy chain/linear networks, as well as existing tree and star network topologies. These Ethernet ends are configured as embedded switches. This adapter is part of the 1734 series of dual port communication adapters for point I/O modules. It uses messages encapsulated in the standard TCP/UDP/IP protocol. Class 5 rated twisted pair cables are used for interfaces. No network required? ?Scheduling and routing tables.

In addition, the 1734-AENTR can support the connection of multiple controllers simultaneously. The 1734-AENTR adapter is mounted vertically on the DIN rail. It has a pen pressure finger wheel switch for setting network addresses. Other ways to set up a network Internet protocol address include retrieving the IP address from non-volatile memory and using a DHCP server (setting the module to enable DHCP). To avoid unauthorized control or loss of control, assign a fixed IP address to the I/O adapter. If you use a DHCP utility, make sure it is configured with the same IP address as the adapter.
