描述

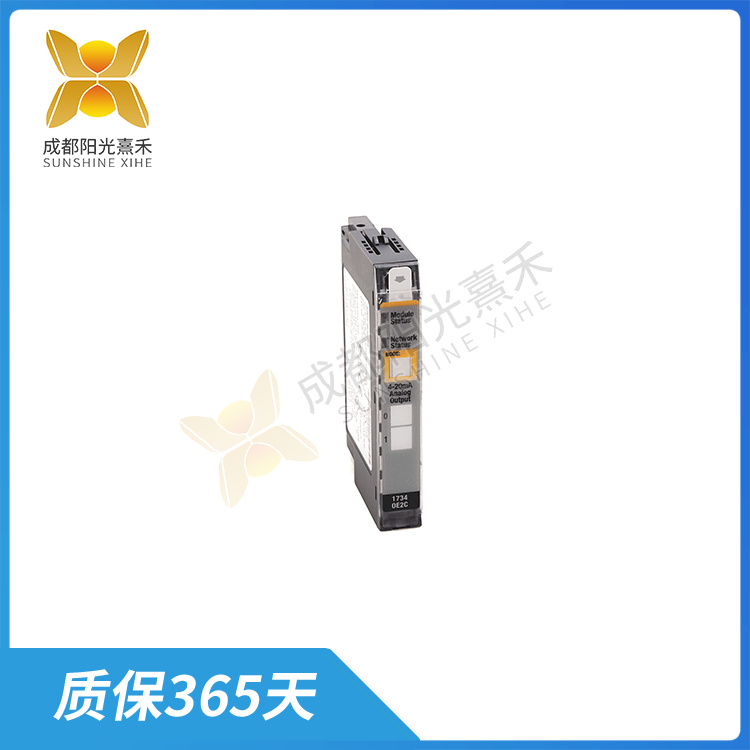

1734-oe4c 具體是一個4通道的模擬電流輸出模塊

1734-OE4C是一款由Allen-Bradley（羅克韋爾自動化）生產的POINT I/O模塊，具體是一個4通道的模擬電流輸出模塊。這款模塊的特點和規格如下：

輸出特性：該模塊具有4個單端、非隔離的模擬輸出通道。輸出電流的范圍是0至20mA或4至20mA，用戶可以根據需要進行配置。

分辨率與精度：輸出電流的分辨率達到16位，范圍從0至21mA。電流輸出的精度在0.4%左右，如果已校準，精度可以達到0.1%。

電氣特性：在帶溫度電流端子的條件下，精度漂移小于50ppm/°C。mA輸出的電阻負載范圍是0至750Ω。

通信與數據格式：模塊采用數模轉換器進行信號轉換，轉換速率達到1μs。數據格式采用有符號整數。

物理特性：模塊的尺寸約為5.6 x 1.2 x 7.55厘米，重量為0.037公斤。
供電與電流：模塊的外部DC電源電流為220mA。POINT I/O總線電流為75mA，浪涌電流為2A（每3秒可重復一次，持續10ms）。

1734-OE4C模塊通常用于工業自動化和控制系統，以提供精確的模擬輸出信號，控制各種設備或執行器。這些設備可能包括電機、閥門、傳感器等。通過配置不同的輸出電流范圍和精度，該模塊可以滿足多種不同的控制需求。

需要注意的是，具體的產品功能和規格可能因制造商和實際應用場景而有所不同。為了獲得更準確和詳細的信息，建議查閱相關的產品手冊、技術文檔或聯系制造商。此外，在安裝和使用該模塊時，應遵循制造商的指導和建議，以確保安全和可靠性。

1734-oe4c 具體是一個4通道的模擬電流輸出模塊

The 1734-OE4C is a POINT I/O module produced by Allen-Bradley (Rockwell Automation), which is a 4-channel analog current output module. The features and specifications of this module are as follows:

Output characteristics: The module has four single-ended, non-isolated analog output channels. The output current ranges from 0 to 20mA or 4 to 20mA, which can be configured by the user as required.

Resolution and accuracy: Output current resolution up to 16 bits, ranging from 0 to 21mA. The accuracy of the current output is about 0.4%, and if calibrated, the accuracy can reach 0.1%.

Electrical characteristics: Accuracy drift less than 50ppm/°C with temperature current terminals. The resistance load range of the mA output is 0 to 750Ω.

Communication and data format: The module uses a digital-to-analog converter for signal conversion, and the conversion rate reaches 1μs. The data format is signed integer.

Physical characteristics: The module measures approximately 5.6 x 1.2 x 7.55 cm and weighs 0.037 kg.
Power supply and current: The external DC power supply of the module is 220mA. The POINT I/O bus current is 75mA and the surge current is 2A (repeatable every 3 seconds for 10ms).

The 1734-OE4C module is commonly used in industrial automation and control systems to provide accurate analog output signals to control various devices or actuators. These devices may include motors, valves, sensors, etc. By configuring different output current ranges and accuracy, the module can meet many different control requirements.

It is important to note that specific product features and specifications may vary by manufacturer and by actual application scenario. For more accurate and detailed information, it is recommended to consult the relevant product manual, technical documentation or contact the manufacturer. In addition, when installing and using the module, the manufacturer’s guidance and recommendations should be followed to ensure safety and reliability.
