描述

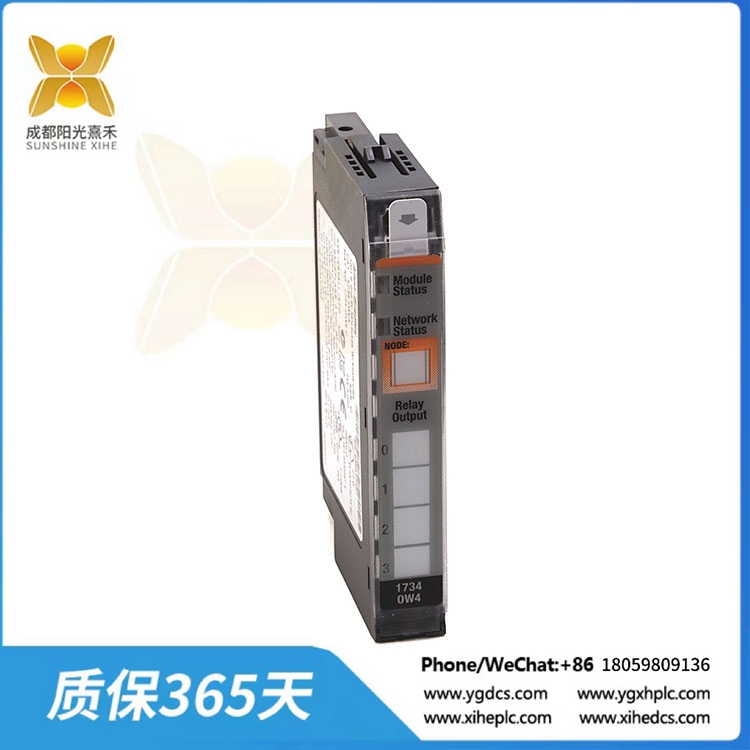

1734-OW4 四 (4) 通道繼電器輸出模塊

艾倫-布拉德利1734-OW4是一個點O/I模塊。該模塊是一個離散輸出模塊，具有四(4)單極，單拋(SPST)常開(no .)觸點。這些觸點輸出是無電壓觸點，支持5-30 VDC操作;120vac和250vac電壓。它具有緊湊小巧的設計，理想地用于實現分布式I/O架構，并支持安裝到DIN導軌上，并配有適當?shù)亩俗拥鬃?，用于連接信號和輸入電源，適用底座如1734-TB, 1734-TBS, 1734-TOP或1734-TOPS。

1734-OW4觸點輸出顯示從ON到OFF的信號轉換延遲為26 ms，初始觸點電阻為30 m?該模塊的功耗為0.5 W，散熱為1.7 BTU/Hr，必須配置80 mA的POINTBus電流才能正常工作。

1734-OW4支持任何可用的POINT I/O通信適配器，如以太網，ControlNet和ProfiBus適配器。這些適配器使1734-OW4能夠接收來自伙伴控制器(如ControlLogix和CompactLogix)的命令，并實現自動化序列。此外，它可以與任何其他點I/O模塊混合使用，以實現所需的I/O。

1734-OW4的工作溫度要求為-20…55攝氏度(-4…131華氏度)，非工作溫度要求為-40…85攝氏度(-40…185華氏度)，相對濕度為5-95%，不凝結。

Allen-Bradley 1734-OW4 POINT I/O 4繼電器輸出模塊是一個電子模塊，具有4個開路機電繼電器輸出，從ON到OFF的輸出延遲時間為20ms。它的最大off狀態泄漏電流為1.2 mA @ 240V AC，通過一個泄壓電阻。1734-OW4的接觸電阻為30m，等效散熱為1.7 BTU/hr，功耗為0.5W。其點總線電流為80mA，背板電源為5V DC，可安裝在4個1734基端模塊中的任意一個上。

1734-OW4安裝在DIN導軌上，使用由底座塊確定的端子底座螺釘。它在2A時額定交流120-240V，在2550V直流條件下，現場與系統之間以及觸點組之間的隔離電壓為250V，測試時間為60s。1734-OW4的最大開關頻率為每3秒1次操作，并且它是負載相關的，具有100,000周期負載相關的電觸點預期壽命。溫度代號為T(mén)4和T4A，模塊為開式外殼型。它有一個單一的ON信號線類別，0.25-2.5mm2 (22-14 AWG)實心和絞合銅線，額定溫度為85℃。1734-OW4的工作溫度在-20至55℃(-4至131℉)之間，無冷凝濕度為5-95%。它的工作沖擊等級為30G，振動為5G (10-500Hz)。每個1734-OW4數字接觸模塊的輸出額定有效值為240VDC，電壓為2A，電流與負載相關。它有4個no繼電器輸出和一個80毫安的點總線電流，最大功耗為0.5瓦。

1734-OW4 四 (4) 通道繼電器輸出模塊

The Allen-Bradley 1734-OW4 is a POINT O/I module. This module is a discrete output module with Four (4) Single Pole, Single Throw (SPST) Normally Open (N.O.) contacts. These contact outputs are voltage-free contacts and supports operating with 5-30 VDC; 120 VAC and 250 VAC voltages. It has a compact and small design, ideally used for implementing distributed I/O architecture and supports installation to a DIN rail and couples with an appropriate terminal base for wiring of signal an input power with applicable bases such as 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS.

The 1734-OW4 contact outputs exhibits a signal transition delay from ON to OFF of 26 ms with initial contact resistance of 30 m?. To operate this device, it must be allocated with 80 mA POINTBus current while the module’s power dissipation is 0.5 W and Thermal Dissipation of 1.7 BTU/Hr.

The 1734-OW4 supports any available POINT I/O communication adapter such as Ethernet, ControlNet and ProfiBus adapters. These adapters enable the 1734-OW4 to receive commands from partner controllers such as ControlLogix and CompactLogix and implement the automation sequence. Additionally, it can be mixed with any other point I/O modules to achieve the required I/O.

The 1734-OW4 has operating temperature requirement of -20…55 degrees C (-4…131 degrees F) and non-operating temperature of -40…85 degrees C (-40…185 degrees F) while the relative humidity of 5-95%, non-condensing.

The Allen-Bradley 1734-OW4 POINT I/O 4 Relay Output Module is an electronic module which has 4 open electromechanical relay outputs with a 20ms output delay time from ON to OFF. It has a maximum OFF-State leakage current of 1.2 mA @ 240V AC via a bleed resistor. The 1734-OW4 has a contact resistance of 30m ?, with a 0.5W power dissipation at 1.7 BTU/hr equivalent thermal dissipation. Its POINT BUS current is 80mA with a backplane power of 5V DC, and it can be installed on any of the 4 1734 base terminal modules.

The 1734-OW4 is mounted on a DIN rail using the terminal base screws as determined by the base block. It has a contact rating of 120-240V AC at 2A, and an isolation voltage of 250V tested at 2550V DC for 60s between the field and system and between the contacts set. The 1734-OW4 has a maximum switching frequency of 1 operation per 3 sec., and it is load-dependent, with a 100,000-cycle load-dependent electrical contact life expectancy. It is designated with the T4 and T4A temperature code, and the module has an open-style enclosure type. It has a single ON signal wire category with 0.25-2.5mm2 (22-14 AWG) solid and stranded copper wire rated at 85 deg. C. The 1734-OW4 has an operating temperature between -20 and 55 deg. C (-4 and 131 deg. F) at 5-95% non-condensing humidity. It has an operational shock rating of 30G and at a vibration of 5G (10-500Hz). Each 1734-OW4 Digital Contact Module’s output is rated 240VDC RMS at 2A and the current is load-dependent. It has 4 N.O. relay outputs and a POINTBus current of 80 milliamps with a maximum Power Dissipation of 0.5 Watts.
