描述

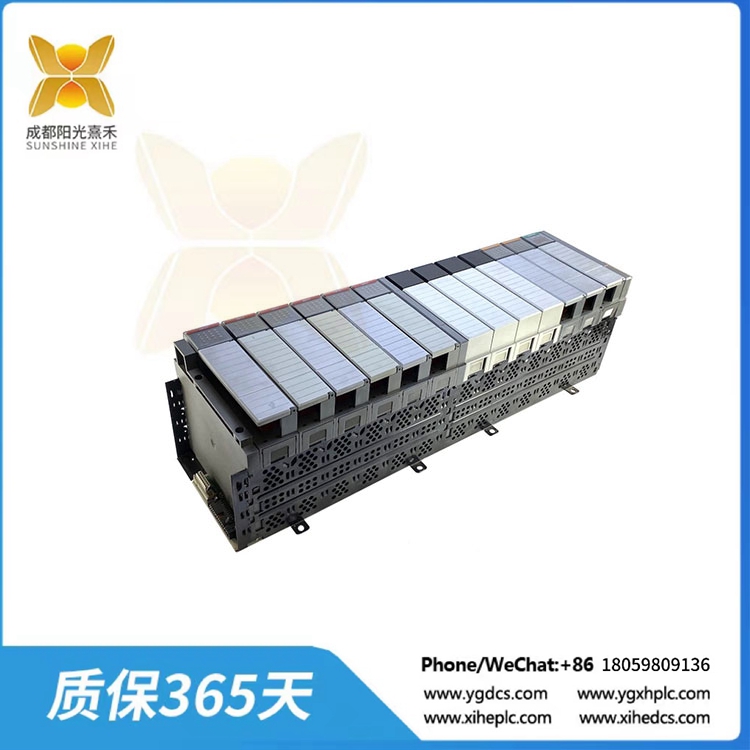

1746-A13 十三(13)槽機箱

Allen-Bradley 1746-A13是來自SLC500可編程邏輯控制器(PLC)平臺的十三(13)槽機箱。該機箱為中央處理器(CPU)、I/O、通信和專業模塊以及系統電源提供背板連接和外殼。

該1746-A13提供了八(8)安裝標簽，用于直接面板安裝的機箱機箱的子面板。將模塊安裝到子面板上時，合適的螺釘是M4或M5(#10或#12)十字螺釘。建議安裝間隙最小為15.3厘米(6.0英寸)的頂部間隙和最小>10.2厘米(4.0英寸)的側間隙。與1746-C7等機柜擴展電纜配合使用時，最小間距為7.7 ~ 10.2 cm (3.0 ~ 4.0 in)。

1746-A13的外形尺寸為50.2 x 17.1 x 14.5厘米(20.1 x 6.8 x 5.8英寸)，重1.9公斤(4.2磅)。承載背板連接的電子電路能夠提供最大背板電流10A @ 5.1 VDC和2.88 A @ 24VDC。本機箱的工作溫度范圍為0°C ~ +60°C(+32°F ~ +140°F)。備用的1746-A13機箱應保存在溫度為-40°C ~ +85°C(-40°F ~ +185°F)、相對濕度為5-95%、無冷凝的適當存儲區域。

1746-A13是UL認證的工業控制設備，通過美國和加拿大認證，符合CE標準的設備和符合澳大利亞無線電通信法案的設備。它適用于安裝在標識為I類，2類，A, B, C, D組或非危險場所的環境中。

1746-A13 十三(13)槽機箱

The Allen-Bradley 1746-A13 is a Thirteen (13) slot chassis from the SLC500 Programmable Logic Controller (PLC) platform. This chassis provides backplane connections and housing to Central Processing Unit (CPU), I/O, Communication and specialty modules as well as the system power supply.

The 1746-A13 is provided with Eight (8) mounting tabs, used for direct panel mounting of the chassis to the enclosure’s subpanel. When mounting the module to the subpanel, appropriate screws are M4 or M5 (#10 or #12) phillips screw. Recommended mounting clearance are minimum of 15.3 cm (6.0 in) for top clearance and minimum of >10.2 cm (4.0 in) side clearance. When used with a rack extender cable such as 1746-C7, minimum spacing is 7.7 to 10.2 cm (3.0 to 4.0 in).

The 1746-A13’s physical dimensions are 50.2 x 17.1 x 14.5 cm (20.1 x 6.8 x 5.8 in) and weighs 1.9 kg (4.2 lbs). The electronic circuitry that hosts the backplane connections is able to provide maximum backplane current of 10A @ 5.1 VDC and 2.88 A @ 24VDC. This chassis is designed to be operated at an environment with temperature range of 0°C to +60°C (+32°F to +140°F). Additionally, spare 1746-A13 chassis may be kept at an appropriate storage area with temperature range of -40°C to +85°C (-40°F to +185°F) with relative humidity of 5-95%, non-condensing.

The 1746-A13 is UL Listed Industrial Control Equipment, certified for US and Canada, CE compliant device and Australian Rediocommunications Act compliant. It is suitable for installation in an environment identified as Class I, Division 2, Groups A, B, C, D, or non-hazardous locations only.
