描述

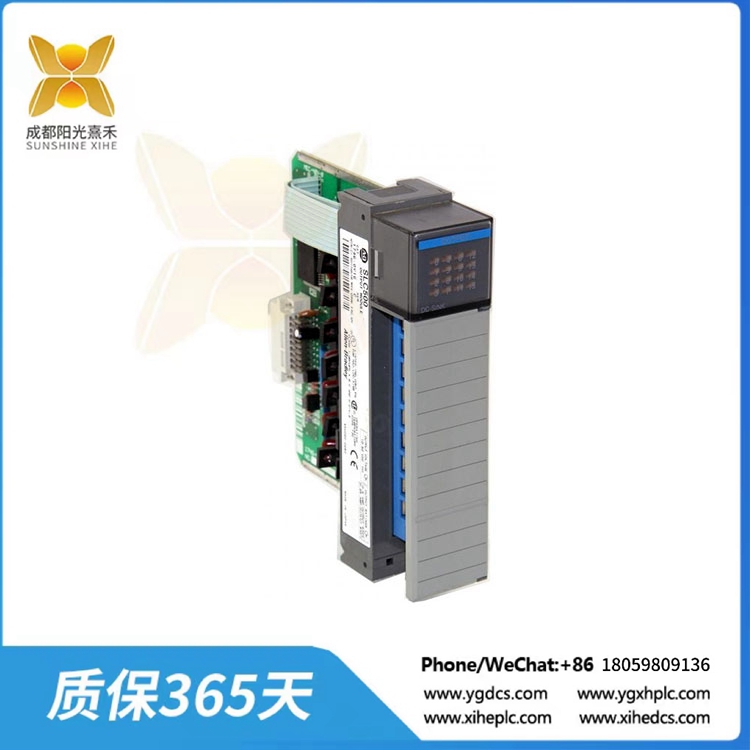

1746-OV16 I/O模塊，數字，16通道輸出，電流下沉

1746-0V1 6是艾倫-布拉德利制造的離散輸出模塊。該模塊在- -(1)個通道組中配有十六(16)個輸出通道。它是一個吸收輸出模塊， 提供10-50VDC輸出電壓范圍，最小輸出為24VDC。 該模塊非常適用于為DC操作的電氣負載供電，如繼電器線圈、指示和發聲裝置。

1746-0V16在5v直流電壓下的背板電流消耗為0.270安培，關斷狀態漏電流為1 mA,最小負載電流也為1 mA。該輸出模塊的每個通道的信號延遲為0.1 ms(從開到關)和1.0 ms(從關到開)。模塊每個點的連續輸出電流在30°C(86″F)時為0.50 A,在60°C(140°F)時為0.25 A,而每個模塊的連續輸出電流在30°C(86°F)時為8.0 A,在60°C(140°F)時為4.0 A。該模塊在0.5 A時最大導通壓降為1.2V 1746-0V1 6的每點浪涌電流為3.0 A,持續10 ms，在30°C(86°F)下每1秒重復-次, 在60°C(140°F)下重復2秒。

1746-0V16安裝在SLC 500機箱上。它是一個 單插槽寬度模塊，直接連接到模塊化風格的SLC 500硬件。它帶有一個預先安裝在模塊 上的可拆卸接線盒。該端子板可從模塊中移除，以實現更簡單、更快速的接線活動。

這是一個與SLC 500系統兼容的1 6通道輸出模塊。每個點的散熱量為0.388瓦，總散熱量為7.6瓦。1746-0V16配有一個可拆卸的接線板， 允許您輕松連接或修改模塊上的接線。它的工作電壓范圍為10- 50伏DC。它的背板功耗(0.27 A)高于1746-0V8和1746-0VP16模塊。1746-0V1 6在開啟狀
態下的最大信號延遲為0.1ms,在關閉狀態下的最大信號延遲為1ms。它的每個輸出和每個模塊的持續電流在30°C時分別為0.5A和8A,在60°C時分別為0.25A和4A。1746-0V16在0.5A和3A 下的最大關斷狀態泄漏為1 mA,最大導通狀態壓降為1.2V,每點最大浪涌電流為10ms。

1746-OV16 I/O模塊，數字，16通道輸出，電流下沉

The 1746-0V1 6 is a discrete output module built by Allen Bradley. The module is equipped with sixteen (16) output channels in -(1) channel groups. It is an absorbing output module that provides a 10-50VDC output voltage range with a minimum output of 24VDC. The module is ideal for powering electrical loads operated by DC, such as relay coils, indicating and sounding devices.

The backplane current consumption of the 1746-0V16 at 5v DC voltage is 0.270 amp, the turn-off state leakage current is 1 mA, and the minimum load current is also 1 mA. The signal delay for each channel of the output module is 0.1 ms(from on to off) and 1.0 ms(from off to on). The continuous output current per point of the module is 0.50 A at 30°C(86″F) and 0.25 A at 60°C(140°F), while the continuous output current per module is 8.0 A at 30°C(86°F) and 4.0 A at 60°C(140°F). The module has a maximum on-voltage drop of 1.2V at 0.5A 1746-0V1 6 and a surge current of 3.0A per point for 10 ms, repeated – times every 1 second at 30°C(86°F) and 2 seconds at 60°C(140°F).

The 1746-0V16 is installed in the SLC 500 chassis. It is a single slot width module that connects directly to the modular style SLC 500 hardware. It comes with a detachable junction box pre-installed on the module. The terminal board can be removed from the module for simpler and faster wiring activities.

This is a 16 channel output module compatible with SLC 500 systems. The heat dissipation at each point is 0.388 watts, for a total heat dissipation of 7.6 watts. The 1746-0V16 comes with a removable patch panel that allows you to easily connect or modify the wiring on the module. It operates in a voltage range of 10-50 volts DC. Its backplane power consumption (0.27A) is higher than that of the 1746-0V8 and 1746-0VP16 modules. 1746-0V1 6 in open mode
The maximum signal delay in the state is 0.1ms and the maximum signal delay in the off state is 1ms. Its continuous currents per output and per module are 0.5A and 8A respectively at 30°C and 0.25A and 4A respectively at 60°C. 1746-0V16 has a maximum turn-off leakage of 1 mA at 0.5A and 3A, a maximum on-state voltage drop of 1.2V, and a maximum inrush current of 10ms per point.
