描述

1746-OW16 用于將數字信號轉換為可以被其他設備或系統識別的離散輸出信號

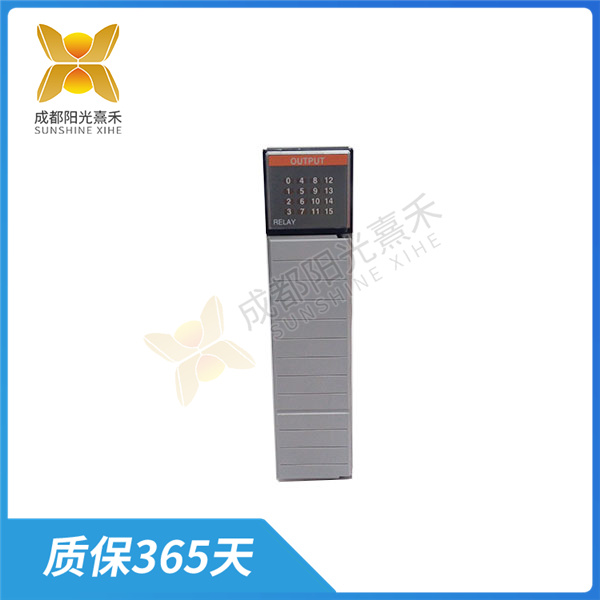

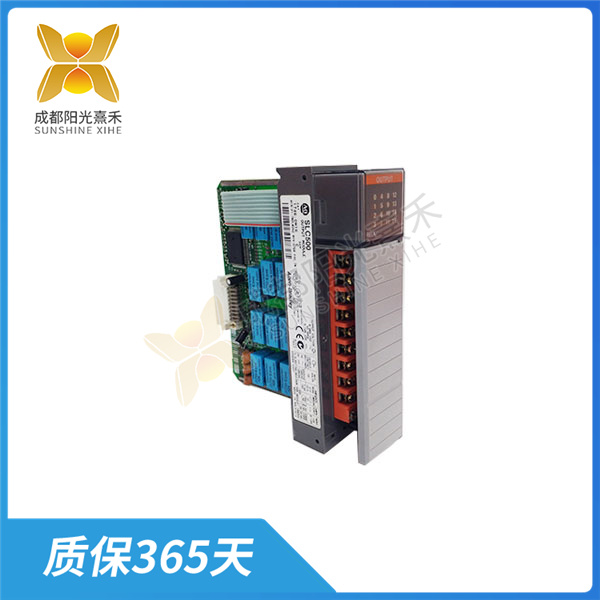

艾倫-布拉德利（Allen Bradley）有多種離散輸出模塊，其中1746-OW16 是艾倫-布拉德利離散輸出模塊，用于SLC 500產品系列，是繼電器輸出模塊，有時也稱為干觸點輸出模塊。該模塊非常適用于混合電壓類別的應用，它有兩組輸入，每組有一個公共端子，這些分組允許一組用DC電壓工作，而另一組用交流電壓工作。它也可以用于兩個DC電壓或兩個交流電壓輸入。該模塊的使用消除了實現插入電路的需要。

在120VAC下運行時，其額定斷開電流為15 A，額定斷開電流為1.5 A。對于240VAC，其額定接通電流為7.5 A，額定斷開電流為0.75 A。交流運行的持續電流為2.5 A。在125 VDC下運行時，其額定接通觸點為0.22 A，額定斷開觸點為1.2 A。在125 VDC下，持續電流為1.0 A，在24VDC下運行時為2.0 A。

艾倫-布拉德利離散輸出模塊是艾倫-布拉德利公司生產的一種離散輸出模塊，用于將數字信號轉換為可以被其他設備或系統識別的離散輸出信號。該模塊采用繼電器輸出方式，可以驅動大電流負載，并且具有高可靠性和穩定性。它可以應用于各種需要離散輸出的場合，如自動化控制系統、報警器、照明控制等。

艾倫-布拉德利離散輸出模塊的主要特點包括：

繼電器輸出方式：該模塊采用繼電器輸出方式，1746-OW16 可以驅動大電流負載，并且具有高耐壓和耐電流能力，能夠保證設備的可靠運行。
高可靠性：該模塊采用高品質的電子元件和電路設計，具有較高的可靠性和穩定性，能夠保證在各種惡劣環境下都能夠正常工作。
多種規格可選：該模塊可以根據不同的應用需求提供多種規格的型號，支持不同的輸入電壓和電流范圍，并且可以定制特殊規格以滿足特定需求。
易于集成：該模塊通常具有標準的接口和引腳定義，可以方便地與其他設備或系統進行集成。
總之，艾倫-布拉德利離散輸出模塊是一種功能強大、應用廣泛的電子設備，它可以實現數字信號到離散輸出信號的快速、準確地轉換，從而為各種控制系統和設備提供可靠的離散輸出控制和指示功能。

1746-OW16 用于將數字信號轉換為可以被其他設備或系統識別的離散輸出信號

Allen Bradley has a variety of discrete output modules, of which the 1746-OW16 is an Allen-Bradley discrete output module for the SLC 500 product family, a relay output module, sometimes referred to as a dry contact output module. The module is ideal for applications in the mixed voltage category, it has two sets of inputs, each with a common terminal, and these groups allow one set to operate with DC voltage and the other with AC voltage. It can also be used with two DC voltage or two AC voltage inputs. The use of this module eliminates the need to implement a plug-in circuit.

When operating at 120VAC, it has A rated break current of 15 A and a rated break current of 1.5 A. For 240VAC, the rated on current is 7.5A and the rated off current is 0.75A. The continuous current for AC operation is 2.5 A. When operating at 125 VDC, it has A rated on contact of 0.22 A and a rated off contact of 1.2 A. The continuous current is 1.0 A at 125 VDC and 2.0 A at 24VDC.

The Allen-Bradley discrete output module is a discrete output module produced by Allen-Bradley that converts digital signals into discrete output signals that can be recognized by other devices or systems. The module adopts relay output mode, can drive large current load, and has high reliability and stability. It can be applied to a variety of occasions requiring discrete output, such as automatic control systems, alarms, lighting control, etc.

Key features of the Allen-Bradley discrete output module include:

Relay output mode: The module adopts relay output mode, 1746-OW16 can drive large current load, and has high voltage and current resistance, to ensure the reliable operation of the equipment.
High reliability: The module uses high-quality electronic components and circuit design, with high reliability and stability, to ensure that it can work normally in a variety of harsh environments.
Multiple specifications available: The module can be available in a variety of specifications according to different application requirements, support different input voltage and current ranges, and can be customized to meet specific requirements.
Easy integration: The module usually has a standard interface and pin definition that makes it easy to integrate with other devices or systems.
In short, the Allen-Bradley discrete output module is a powerful and widely used electronic device, which can realize the fast and accurate conversion of digital signals to discrete output signals, so as to provide reliable discrete output control and indication functions for various control systems and devices.
