描述

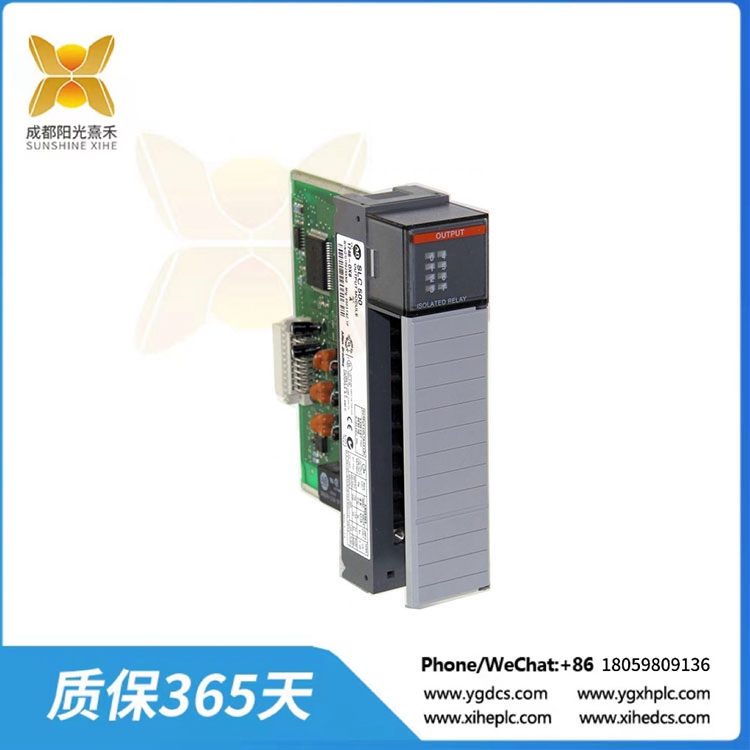

1746-OX8 slc8點數字輸出模塊

Allen-Bradley 1746-OX8是SLC 500數字I/O模塊。該輸出模塊配有8個單獨隔離的大電流繼電器觸點輸出。它當然也是一個繼電器輸出模塊和繼電器觸點評級最高的30,打破在120伏交流電,最多15和1.5休息在240 v AC。在一個連續的5對交流電壓,該模塊使3600 VA和休息360 VA。直流電壓,最大電流斷續器是每個0.22 1.2 125伏直流,每個在24伏直流。125伏直流電連續的1 A和24伏直流電連續的2 A的通斷電壓均為28va。該模塊提供狀態指示燈。它可以安裝在一個底盤，并有一個開放式的外殼。請注意在機箱未通電的情況下安裝和拆卸模塊。

它在交流120伏時輸出電流為3a，在直流24伏時輸出電流為1.2 A。本模塊的工作電壓范圍為交流5v ~ 125v，直流5v ~ 265伏。背板在5伏直流時的電流消耗為0.085 A，在24伏直流時為0.090 A。它也有一個最大的電阻負載信號延遲10毫秒的關閉和打開。該模塊的最小負載電流在5伏直流下為10毫安，其最大斷開狀態泄漏為0毫安。請注意，每個模塊的連續電流應限制在1440 VA。該模塊具有NEMA標準ICS 2至230的抗噪性，I/O端子和控制邏輯之間的電光隔離為1500伏。該模塊的工作溫度范圍為0 ~ 60攝氏度，特別是系統周圍的空氣，存儲溫度范圍為-40 ~ 85攝氏度。其工作振動在5 – 57赫茲時位移峰值為0.015英寸，在57-2000赫茲時加速度為2.5 g。本模塊的工作沖擊為10g。1746-OX8模塊每點散熱為0.825瓦，最小散熱為2.590瓦，總散熱為8.60瓦。

1746-OX8 slc8點數字輸出模塊

The Allen-Bradley 1746-OX8 is an SLC 500 digital I/O module. This output module comes with 8 high-current relay contact outputs that are individually-isolated. It is also an N.O. relay output module with relay contact ratings with a maximum of 30 A each for make and break at 120 Volts AC and a maximum of 15 A make and 1.5 A break at 240V AC. At a continuous 5 A for both AC voltages, the module has a make of 3600 VA and a break of 360 VA. For DC voltages, the maximum make and break are 0.22 A each at 125 Volt DC and both 1.2 A each at 24 Volt DC. Continuous 1 A at 125 Volt DC and 2 A at 24 Volts DC both have a make and break of 28 VA each. Status indicators are available with this module. It can be mounted in a chassis and has an open-type enclosure. You must remember to install and remove the module only when power is not applied to the chassis.

It has an output current of 3 A at 120 Volt AC and an output current of 1.2 A at 24 Volt DC. The operating voltage of this module ranges from 5-125V AC and 5 to 265 Volts DC. The backplane current consumption at 5 Volts DC is 0.085 A and 0.090 A at 24 Volt DC. It also has a maximum resistive load signal delay of 10 milliseconds for both OFF and ON. This module’s minimum load current is 10 mA at 5 Volts DC and its maximum off-state leakage is 0 mA. Note that the continuous current per module should be limited to 1440 VA. This module has a NEMA standard ICS 2 to 230 noise immunity and electro-optical isolation of 1500 Volts between the I/O terminals and control logic. The operating temperature range of this module, particularly for the air surrounding the system, is from 0 to 60 degrees Celsius and the storage temperature ranges from -40 to 85 degrees Celsius. Its operating vibration has a displacement of 0.015 inches peak at 5 to 57 Hertz and an acceleration of 2.5 g at 57-2000 Hertz. The operating shock of this module is 10 g. The 1746-OX8 module has a heat dissipation of 0.825 watts per point, a minimum dissipation of 2.590 Watts, and a total dissipation of 8.60 Watts.
