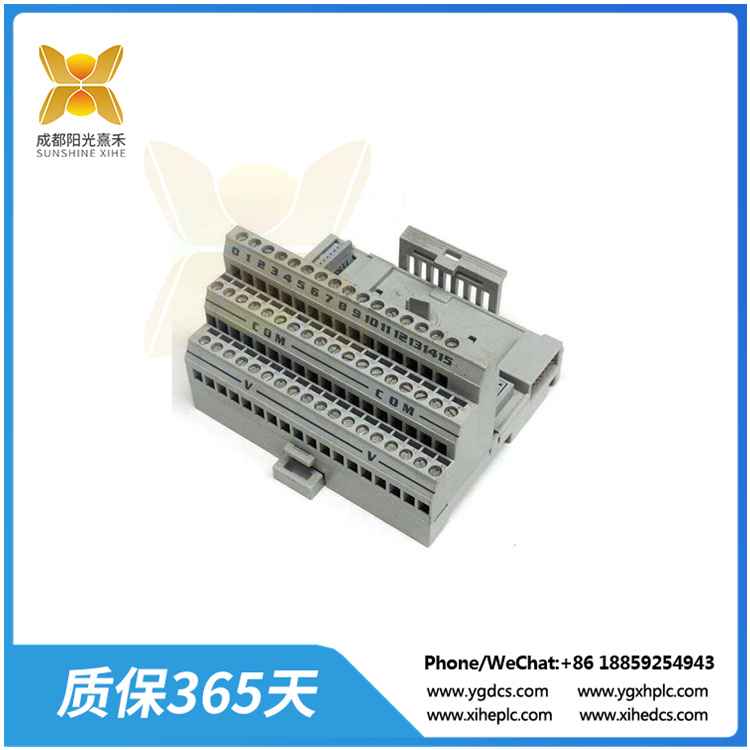

1746-TB3G 柔性端子底座
1746-TB3G艾倫-布拉德利Flex I/O 1794系列終端底座
制造商:艾倫-布拉德利
模型: 1746 – tb3g
附加信息:Flex I/O 1794系列終端基礎單元
預計運輸規模
外形尺寸:263 × 58 × 28mm
重量:.4.3公斤
原產國:美國
Allen-Bradley的1794-TB3G Flex I/O終端基礎單元是一種終端基礎單元模塊，安裝有面板或DIN導軌，并提供終端I/O接線連接點。它有36個最大輸入/輸出端子，2個公共端子和2個正電壓端子。它有10個機箱接地端子，適用于10A和31.2V直流應用。它通過接地螺絲鉗提供I/O終端，終端螺絲扭矩為0.56 x 0.79 Nm (5-7lb-in)。I/O模塊通過1794-TB3G連接到I/O總線，它還在5V DC下提供640mA的FLEXBUS電流，最大I/O端子電流為2A。
它的電壓/通信終端額定值為125V DC/AC和10A，頻率為50-60 Hz，在現場接線端子和FLEXBUS或任何較小的模塊之間，使用基本絕緣類型在2121V DC下測試60s，可提供最大50V(連續)電壓隔離。1794-TB3G使用0.21 x 1.3 mm2 (24-16 AWG)絞合尺寸銅線，額定溫度為75°C(167°F)，絕緣為1.2 mm(3/64英寸)，整個模塊具有T4A和IEC TA溫度代碼。它在-20至70°C(-40至158°F)的溫度范圍內不起作用，在5-95%的非冷凝環境相對濕度下存儲在工廠指定的-40-85°C(-40-185°F)溫度范圍內。它可以在30G的操作沖擊等級和10-500Hz的5G振動下保持標準功能。
1746-TB3G 柔性端子底座
1746-TB3G Allen-Bradley Flex I/O 1794 series terminal base unit
Manufacturers ：Allen-Bradley
Model(s)? ：1746-TB3G
Additional Information ：Flex I/O 1794 series terminal base unit
Estimated Shipping Size
Dimensions: 263 × 58 × 28mm
Weight:.4.3?kg
Country of Origin: United States of America
The 1794-TB3G Flex I/O Terminal Base Unit by Allen-Bradley is a terminal base unit module that is installed with a panel or DIN rail and provides terminal I/O wiring connection points. It has 36 maximum input/output terminal points with 2 common terminals and 2 positive voltage terminals. It has 10 Chassis Ground Terminals and is built for uses in 10A and 31.2V DC applications. It provides I/O termination through the Grounded Screw Clamp and has a terminal screw torque of 0.56 x 0.79 Nm (5-7lb-in). The I/O modules are connected to the I/O bus through the 1794-TB3G and it also provides a FLEXBUS current of 640mA at 5V DC with a 2A maximum I/O terminal current.
It has a Voltage/Communication terminal rating of 125V DC/AC and 10A at 50-60 Hz and it delivers a maximum 50V (continuous) voltage isolation using the Basic Insulation Type tested for 60s at 2121V DC between the Field Wiring Terminals and FLEXBUS or any lesser module. The 1794-TB3G uses a 0.21 x 1.3 mm2 (24-16 AWG) stranded size copper wire rated at 75 °C (167 °F) with 1.2 mm (3/64 in) insulation and the whole module is given the T4A and IEC TA temperature codes. It functions without de-rating at a temperature range between -20 and 70 °C (-40 and 158 °F) at 5-95% non-condensing ambient relative humidity is stored at a factory-specified -40-85 °C (-40-185 °F) temperature range. It is built to retain standard functions at an operational shock rating of 30G and a vibration of 5G at 10-500Hz.
