描述

1747-M13 SLC 64KB 內存模塊

艾倫-布拉德利1747-M13是一個內存模塊，與內存適配器結合使用。它通常用作SLC 5/03、5/04和5/05處理器的備份內存。存儲器應正確定位并安裝在跳線上。對于1747-M13模塊，跳線必須將A18連接到中心引腳。要使1747-M13與其內存適配器一起工作，您應該使用1747-M15模塊。這是為了避免損壞內存模塊、PROM或兩個組件。

安裝內存條和拆卸處理器時，請確?？刂破鞯拈_關處于OFF狀態。這可以防止對處理器的任何損壞和不期望的故障。內存條的連接器上有鎖扣，避免誤安裝。請勿將模塊暴露在可能產生靜電的地方。靜電電荷可能損壞、改變甚至破壞部件的內存。

1747-M13是用于艾倫-布拉德利SLC 500可編程邏輯控制器(PLC)的內存模塊。這個內存模塊集成了64K的用戶備份內存。

本內存條使用部件號為b系列1747-M15的內存適配器，如果使用a系列1747-M15，內存條可能會損壞。

存儲器模塊的主要功能是為處理器提供一個非易失性存儲器區域。SLC 500處理器提供隨機存取存儲器(RAM)，由鋰電池備份至少兩(2)年。如果電池電壓耗盡，RAM內存中的數據將被刪除。這將導致丟失或運行該進程的用戶程序。通過安裝內存模塊，處理器可以獲得即使備用電池耗盡也無法擦除的內存。這可以防止不必要的用戶程序刪除和計劃外的進程關閉。每次啟動電源周期時，存儲器模塊內的用戶程序自動加載。

只需連接到處理器并啟動程序刻錄到EEPROM模塊。

1747-M13 SLC 64KB 內存模塊

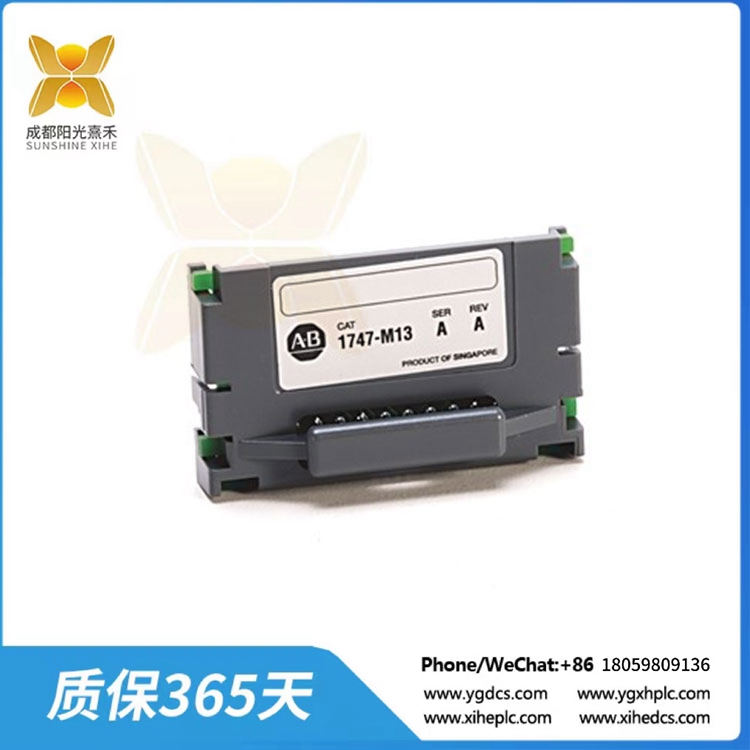

The Allen-Bradley 1747-M13 is a memory module which is combined for use with a memory adapter. It is used commonly as a backup memory for SLC 5/03, 5/04, and 5/05 processors. The memory should be properly oriented and mounted on the jumpers. For the 1747-M13 module, the jumper must connect the A18 to the center pin. To make the 1747-M13 functional with its memory adapter, you should use a 1747-M15 module. This is to avoid damaging the memory module, the PROM, or both components.

When installing the memory module and removing the processor, make sure the controller is switched OFF. This prevents any damage and undesired faults to the processor. The memory module has connectors that are keyed to avoid improper installation. Do not expose the module to the areas in which it may experience electrostatic charge. The electrostatic charge may damage, alter, or even destroy the memory of the 1747-M13.

The 1747-M13 is a memory module intended for use with the Allen-Bradley SLC 500 Programmable Logic Controller (PLC). This memory module has an integrated 64K of user back-up memory.

This memory module requires a memory adapter module with part number 1747-M15 series B. If a Series A 1747-M15 is used, the memory module may be damaged.

The primary function of the memory module is to provide a non-volatile memory area for the Processor. The SLC 500 processors are provide with a Random-Access Memory (RAM) which is backed-up by a Lithium battery for a minimum of Two (2) years. If the battery voltage is drained, the data inside the RAM memory will be deleted. This will result to loss or user program that runs the process. With the installation of a memory module, the processor is provided with memory that cannot be erased even when the back-up battery is drained. This prevents unwanted deletion of the user program and unplanned process shutdown. The user program inside the memory module is automatically loaded every time a power cycle is initiated.

Simply connect to the processor and initiate program burn to EEPROM module.
