描述

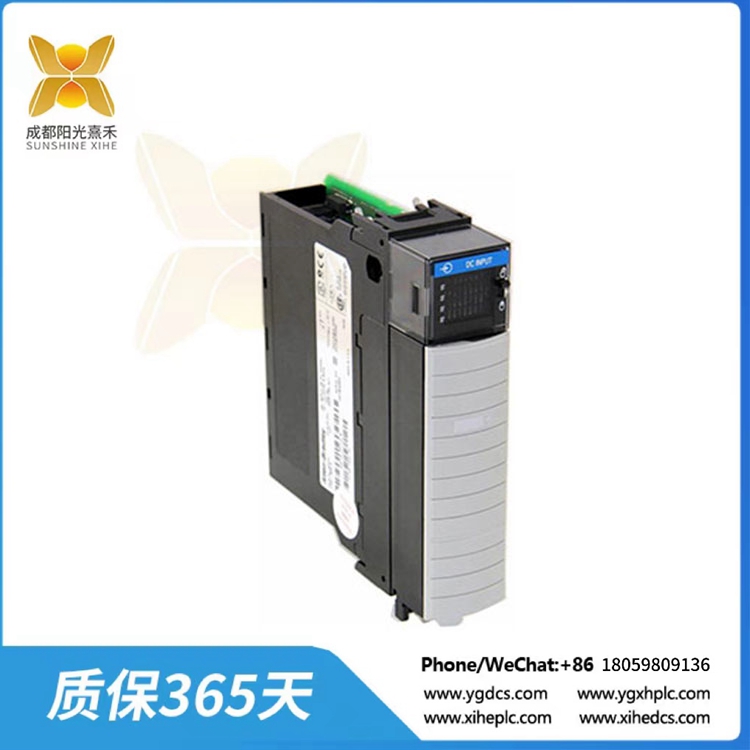

1756-IB32B 數字直流輸入模塊

Allen-Bradley 1756-IB32B是一個ControlLogix數字I/O模塊。作為ControlLogix系統的一部分，該輸入模塊有32個輸入，分為2組，每組有16個點。它被安裝到ControlLogix底盤通過使用所需的可移動端子塊外殼，或RTB，如艾倫-布拉德利1756-TBCH或1756-TBS6H。該模塊占用ControlLogix機箱的單個槽位，并提供開放式機箱類型。1756-IB32B模塊的工作電壓范圍為10 ~ 31.2伏直流，標稱輸入電壓為24伏直流。它的電壓類別為12/24伏直流吸收，5.1伏電流為120毫安，24伏電流為2毫安，背板總額定功率為0.66 W。60℃時最大功耗為6.2 W, 60℃時最大散熱為21.1 BTU/小時。

Allen-Bradley 1756-IB32B ControlLogix數字I/O模塊也具有250 mA的最大沖擊電流額定，在22毫秒內衰減到小于37%而不激活。在關斷狀態下，其最大電流為2.27 mA，最大電壓為5伏。off-to-on和on-to-off過程的輸入延遲時間不同。對于off-to-on進程，存在高達380微秒的硬件延遲以及用戶可配置的0、1或2毫秒的過濾器時間。開關延遲時間包括高達420微秒的硬件延遲時間，加上用戶可配置的0、1、2、9或18毫秒的濾波器時間。

Allen-Bradley 1756-IB32B是一款高密度離散輸入模塊，屬于ControlLogix可編程自動化控制器(PAC)產品系列。該模塊具有32個輸入通道，分為2組，每組16個通道。

它可以安裝在本地I/O機架或分布式I/O機箱中，也可以安裝在獨立或分布式控制系統(DCS)中，例如Allen-Bradley的Plant PAx。當通過硬件配置進入該模塊時，模塊的參數是可訪問的，例如模塊的一般屬性以及兼容鍵控和插槽分配等重要參數。該模塊還具有可配置的請求數據包間隔(RPI)，模塊抑制，對通信失敗的反應和通過控制網的計劃連接。該模塊的每個通道都具有可配置的濾波器設置，以允許對模塊的反應時間進行微調。這種調整在離散信號不穩定和暴露于噪聲的應用中是有用的。此功能有助于防止誤報正負讀數。

該模塊還具有通過模塊信息進行自診斷的能力，可以監控模塊的診斷狀態，如輕微故障和嚴重故障。它還可以檢測模塊連接的ControlLogix背板的狀態。

該模塊隨可移動終端塊(RTB)一起發貨。這種RTB能夠模塊化替換有缺陷的模塊，并提供易于布線的信號。該模塊兼容的RTB為1756-TBCH、1756-TBS6H或36端子RTB。

1756-IB32B 數字直流輸入模塊

The Allen-Bradley 1756-IB32B is a ControlLogix digital I/O module. Part of the ControlLogix system, this input module has 32 inputs available in 2 groups, with 16 points in each group. It is mounted to a ControlLogix chassis by using the required removable terminal block housing, or RTB, such as either the Allen-Bradley 1756-TBCH or 1756-TBS6H. This module, occupies a single slot of the ControlLogix Chassis and supplied with an open enclosure type. The 1756-IB32B module has an operating voltage range of 10 to 31.2 Volts DC and a nominal input voltage of 24 Volts DC. It has a voltage category of 12/24 Volts DC sink, a current draw of 120 mA at 5.1 Volts and 2 mA at 24 Volts, and a total backplane power rating of 0.66 W. The maximum power dissipation is 6.2 W at 60 degrees Celsius, while the thermal dissipation is 21.1 BTU/hour, also at 60 degrees Celsius.

The Allen-Bradley 1756-IB32B ControlLogix digital I/O module also has a maximum inrush current rating of 250 mA, which decays to less than 37% in 22 milliseconds without activation. In an off-state, its maximum current is 2.27 mA and its maximum voltage is 5 Volts. The input delay time for the off-to-on and on-to-off processes differ. For the off-to-on process, there is a hardware delay of up to 380 microseconds plus a user-configurable filter time of either 0, 1, or 2 milliseconds. The on-to-off delay time includes the hardware delay time of up to 420 microseconds plus the user-configurable filter time of either 0, 1, 2, 9, or 18 milliseconds.

The Allen-Bradley 1756-IB32B is a High-Density Discrete input module that belongs to the ControlLogix product family of Programmable Automation Controllers (PAC). This module features Thirty-Two (32) input channels, grouped in Two (2) with Sixteen (16) channels each group.

It may be installed to a local I/O rack or distributed I/O chassis or in a stand-alone or Distributed Control Systems (DCS) such as Allen-Bradley’s Plant PAx. One this module is entered through the Hardware configuration, the module’s parameters are accessible such as the module’s general properties with important parameters of compatible keying and slot assignment. This module also has a configurable Request Packet Interval (RPI), Module Inhibition, Reaction to communication failure and Scheduled connection over ControlNet. Each channel of this module has configurable filter settings to allow fine tuning of the module’s reaction time to signals. This adjustment is useful in applications where discrete signals are erratic and exposed to noise. This feature helps prevent false positive negative readings.

This module is also provided with the capability of self-diagnosis through the module info where the module’s diagnostic status can be monitored such as minor and major fault. It can also detect the status of the ControlLogix backplane where the module is connected.

This module is shipped with a Removable Terminal Block (RTB). This RTB enables modular replacement of a defective module an provides ease of wiring the signals. Compatible RTB for this module are 1756-TBCH 1756-TBS6H or a 36-terminal RTB.
