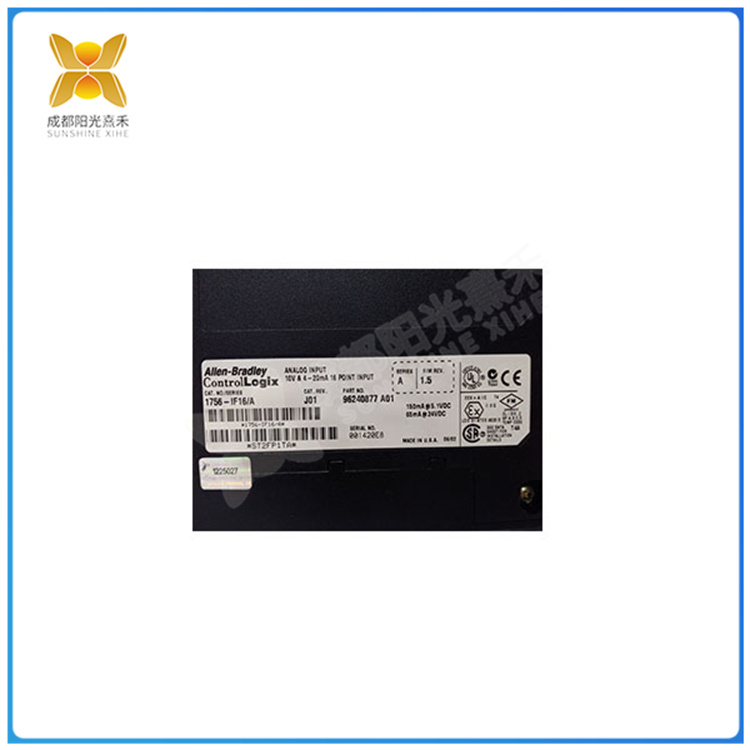

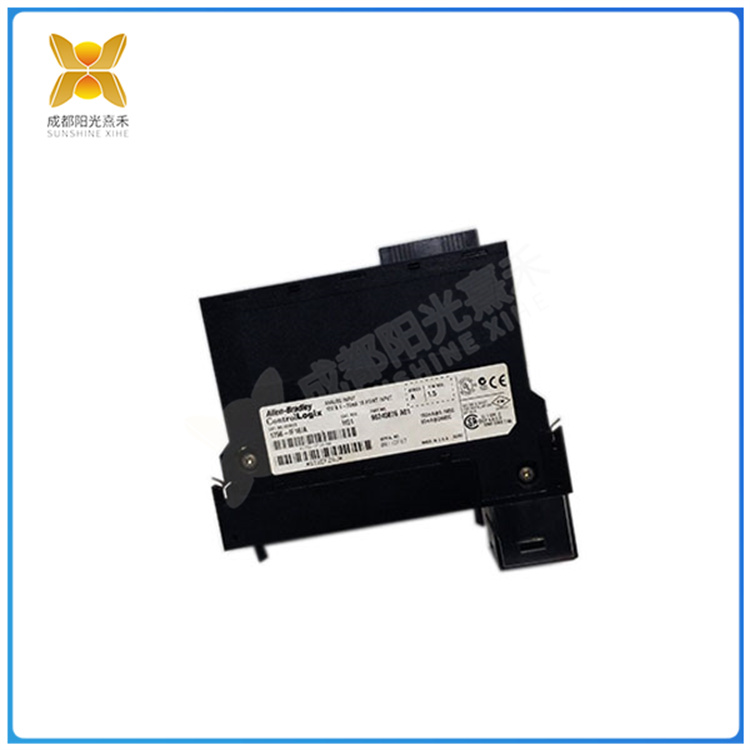

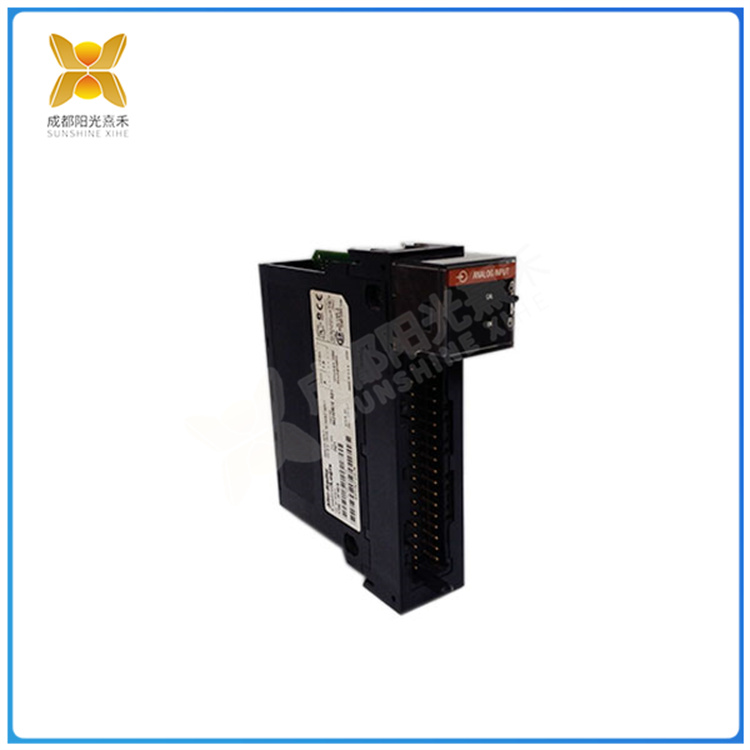

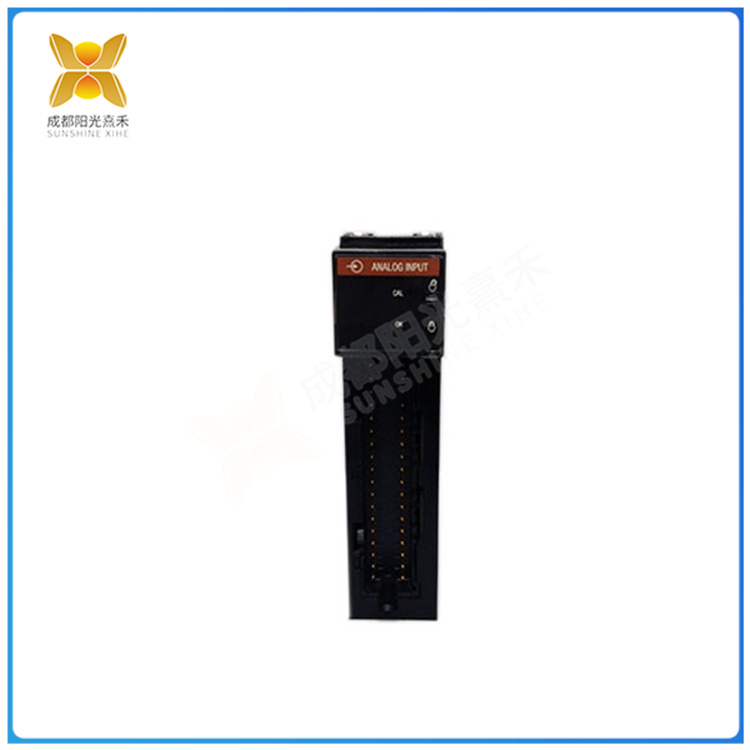

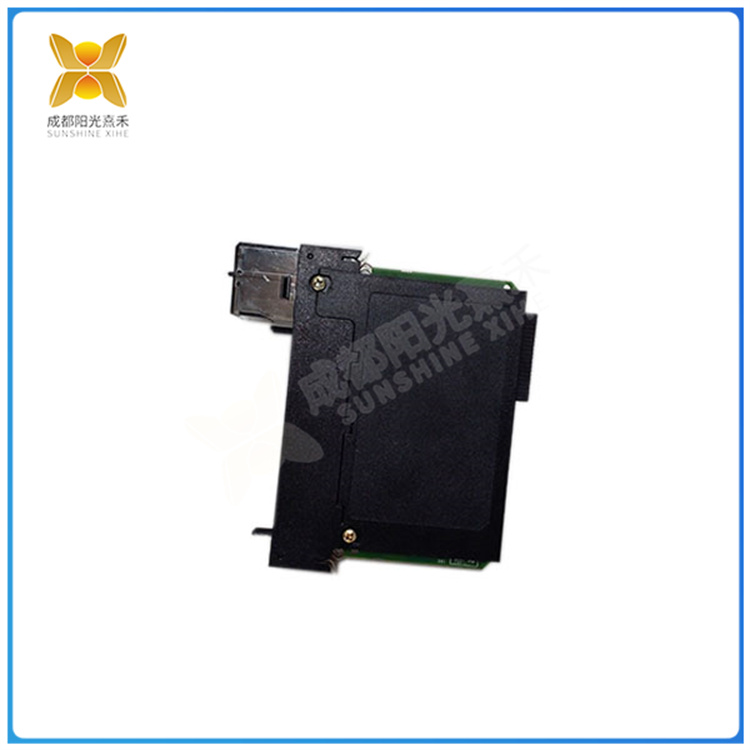

756-IF16 Specifications

Brand: Allen-Bradey ROCKWELL

Origin: USA

Specification: analog input module

1. * Processor unit (CPU)
The ControlLogix controller comes with a large amount of memory and can address a large number of I/O points.
The controller can control both local I/O and Ethernet/IP, ControlNet,
DeviceNet and universal Remote I/O network to control remote I/O.
Available user memory: 750K bytes or 15M bytes or 35M bytes, up to 8M
Maximum digital I/O points: 128000 Maximum analog I/O points: 4000 points
Program scan time: ≤006ms/1k All modules do not require cooling fans
Multiple processors can coexist in the same rack to achieve distributed computing.
The processor module, input/output module and communication module can be placed at will.
There are no restrictions on quantity, location or type. Users do not need to change the processor,
System processing capacity can be expanded by replacing larger memory capacity.
It has the key switch of RUN mode, PROGRAM mode and REMOTE mode.
The CPU comes with a lithium battery, and the program can be stored for at least 63 days after power failure.
User programs, I/O data, or system parameters can be stored as files on a data memory card (required separately) or in CPU memory.
Base station and expansion I/O framework adopts the same series of specifications of the framework, and all I/O modules use the same series of modules corresponding to the CPU.
All I/O modules are configured and programmed through software, without jumper and DIP switch; Each slot is universal, that is, the module does not depend on the slot.
It has Ethernet, control network, device network modules that can be directly inserted into the rack, supporting Ethernet, control bus, device bus, and supporting multi-network configuration, and does not require processor intervention.
