描述

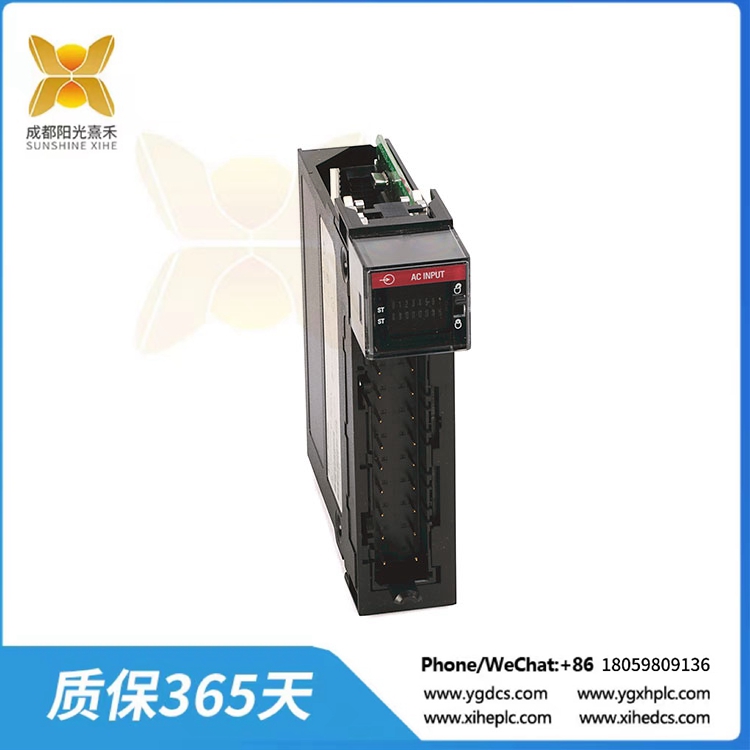

1756-IM161 隔離數字輸入模塊

Allen-Bradley 1756-IM16I是一個交流數字輸入模塊。它有16個單獨隔離的輸入，每個點隔離，并且您可以配置狀態更改和輸入過濾器時間。與1756 ControlLogix機箱兼容，它需要1756- tbs6h或1756- tbch 36針可拆卸端子排外殼(RTB)將其連接到機箱。1756-IM16I的工作電壓范圍為159至265伏交流電，最大浪涌電流為250毫安，電壓類別為240伏交流電50/60赫茲。它的背板電流在5伏時為100毫安，在24伏時為3毫安，背板總功率為0.58瓦。模塊在60℃時的最大功耗為5.8瓦，散熱19.78 BTU/小時。當從關斷到導通狀態時，1756-IM16I有一個螺釘?shù)奖嘲遢斎胙舆t時間，反之亦然。從“關”到“開”，輸入延遲時間是最大10毫秒的硬件延遲加上輸入濾波器時間(用戶可選擇1或2毫秒)，而從“開”到“關”，它是最大8毫秒的硬件延遲時間加上輸入濾波器時間(用戶可選擇9或18毫秒)。模塊在關機狀態下的最大電流為2.5毫安，該狀態下的最大電壓為40伏交流電。在導通狀態下，電流范圍從5毫安(159伏交流，60赫茲)到13毫安(265伏交流，60赫茲)。另一方面，導通狀態電壓范圍各不相同，它們是:159-265伏交流電，47-63赫茲，30攝氏度，所有通道打開;159-265伏交流電，47-63赫茲，40攝氏度，8點打開;159至253伏交流電，47-63赫茲，45攝氏度，所有通道打開;159至242伏交流電，47-63赫茲，60攝氏度，所有通道打開。

1756-IM161 隔離數字輸入模塊

The Allen-Bradley 1756-IM16I is an AC digital input module. It has 16 individually isolated inputs, per point isolation, and you can configure a change of state and the input filter times. Compatible with the 1756 ControlLogix chassis, it requires either the 1756-TBS6H or 1756-TBCH 36-pin removable terminal block housing (RTB) to connect it to the chassis. The 1756-IM16I’s operating voltage range is from 159 to 265 Volts AC, maximum inrush current is 250 milliamps, and the voltage category is 240 Volts AC 50/60 Hertz. It has a backplane current of 100 milliamps at 5 Volts and 3 milliamps at 24 Volts, with a total backplane power of 0.58 Watts. The module has a maximum power dissipation of 5.8 Watts at 60 Degrees Celsius and a thermal dissipation of 19.78 BTU/hour. The 1756-IM16I has a screw to backplane input delay time when going from an off to on state, and vice versa. From ‘off’ to ‘on’, the input delay time is the hardware delay of 10 milliseconds max plus the input filter time (user-selectable at 1 or 2 milliseconds), while from ‘on’ to ‘off’, it is the hardware delay time of 8 milliseconds max plus the input filter time (user-selectable at 9 or 18 milliseconds). The maximum current of the module during an off-state is 2.5 milliamps and 40 Volts AC is its maximum voltage at that state. During an on-state, the current ranges from 5 milliamps at 159 Volts AC, 60Hertz to 13 milliamps at 265 Volts AC, 60 Hertz. On the other hand, the on-state voltage range varies and they are: 159-265 Volts AC, 47-63 Hertz at 30 Degrees Celsius with all channels ON, 159-265 Volts AC, 47-63 Hertz at 40 Degrees Celsius with 8 points ON, 159 to 253 Volts AC, 47-63 Hertz at 45 Degrees Celsius with all channels on, and 159 to 242 Volts AC, 47-63 Hertz at 60 Degrees Celsius with all channels ON.
