描述

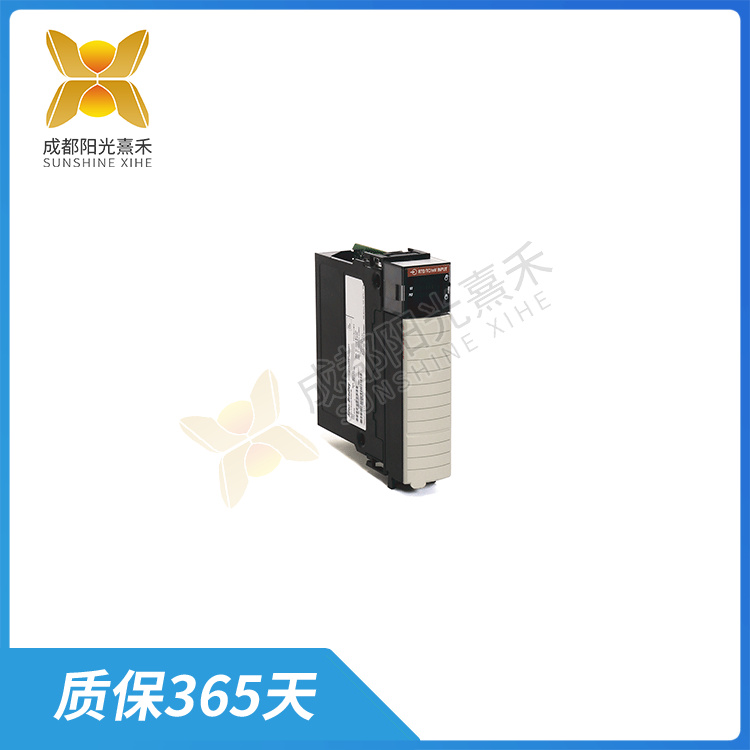

1756-IRT8I 高分辨率模擬I/O模塊

1756-IRT8I是一款來自Allen-Bradley（現為Rockwell Automation的一部分）的八點隔離式溫度檢測模塊。這款模塊具有高度的兼容性和靈活性，它可以兼容RTD、熱電偶和毫伏信號，使得它在多種溫度檢測場景中都能發揮出色的性能。

作為一款高分辨率模擬I/O模塊，1756-IRT8I的通道采樣率僅由RPI值決定，從而確保了采樣的準確性和穩定性。此外，該模塊還具備多種輸入范圍選擇，包括1至500歐姆、2至1000歐姆、4至2000歐姆、8至4000歐姆和-100至100毫伏，這使得它能夠適應不同的應用需求。

在熱電偶應用中，1756-IRT8I模塊提供了兩個CJC傳感器，精度高達±0.3攝氏度，確保了熱電偶測量的準確性。同時，當模塊電源循環時，為熱電偶輸入配置的通道會執行引線電阻自校準，進一步提升了測量的準確性。

此外，該模塊還是ControlLogix系統的一部分，需要與36針RTB或可移動接線板（RTB）配合使用。兼容的RTB包括1756-TBCH或1756-TBS6H，這為模塊的連接和集成提供了極大的便利。

在使用1756-IRT8I模塊時，每次掃描用戶程序之前，都會先執行故障自診斷程序，以確保系統的穩定性和可靠性。如果自診斷發現異常，模塊會停機并顯示出錯，從而避免可能的故障擴大。

總的來說，1756-IRT8I是一款功能強大、性能穩定的溫度檢測模塊，適用于各種需要精確溫度測量的工業自動化場景。然而，由于其高度的專業性和復雜性，建議在使用前詳細閱讀和理解其技術手冊和操作指南，以確保其正確和安全的使用。

1756-IRT8I 高分辨率模擬I/O模塊

The 1756-IRT8I is an eight-point isolated temperature detection module from Allen-Bradley (now part of Rockwell Automation). The high degree of compatibility and flexibility of the module, which is compatible with RTD, thermocouple and millivolt signals, enables it to perform well in a variety of temperature detection scenarios.

As a high-resolution analog I/O module, the channel sampling rate of the 1756-IRT8I is determined solely by the RPI value, thus ensuring the accuracy and stability of the sampling. In addition, the module has a wide selection of input ranges, including 1 to 500 ohms, 2 to 1000 ohms, 4 to 2000 ohms, 8 to 4000 ohms and -100 to 100 millivolts, making it adaptable to different application needs.

In thermocouple applications, the 1756-IRT8I module provides two CJC sensors with an accuracy of up to ±0.3 degrees Celsius, ensuring the accuracy of thermocouple measurements. At the same time, when the module power supply is cycled, the channel configured for the thermocouple input performs lead resistance self-calibration, further improving measurement accuracy.

In addition, the module is part of the ControlLogix system and needs to be used in conjunction with a 36-pin RTB or a removable patch board (RTB). Compatible RTBS include 1756-TBCH or 1756-TBS6H, which provides great convenience for module connection and integration.

When using the 1756-IRT8I module, a fault self-diagnosis procedure is performed before each scan of the user program to ensure the stability and reliability of the system. If the self-diagnosis finds an exception, the module stops and displays the error, thus avoiding possible fault escalation.

Overall, the 1756-IRT8I is a powerful and stable temperature detection module suitable for a variety of industrial automation scenarios requiring accurate temperature measurement. However, due to its high degree of professionalism and complexity, it is recommended to read and understand its technical manuals and operating guidelines in detail before use to ensure its correct and safe use.
