描述

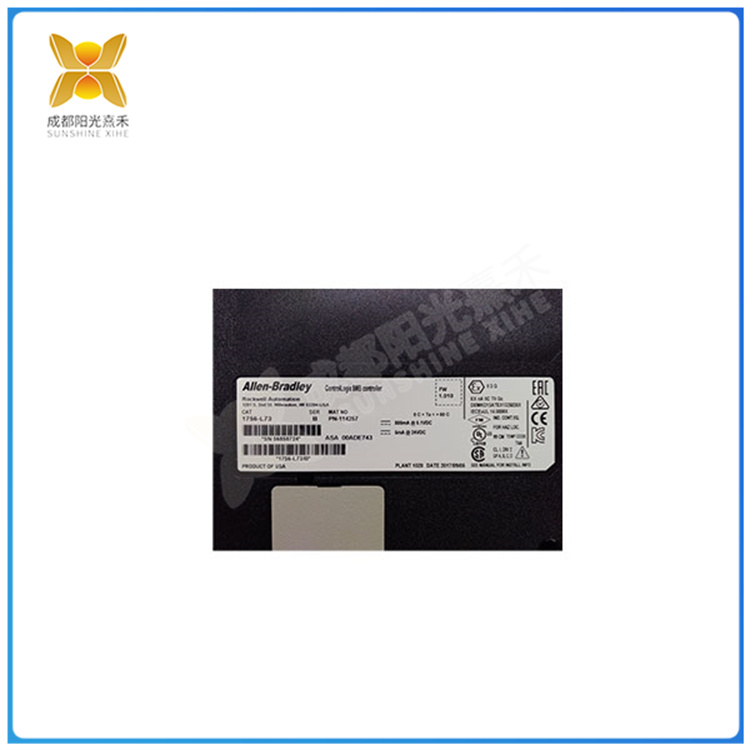

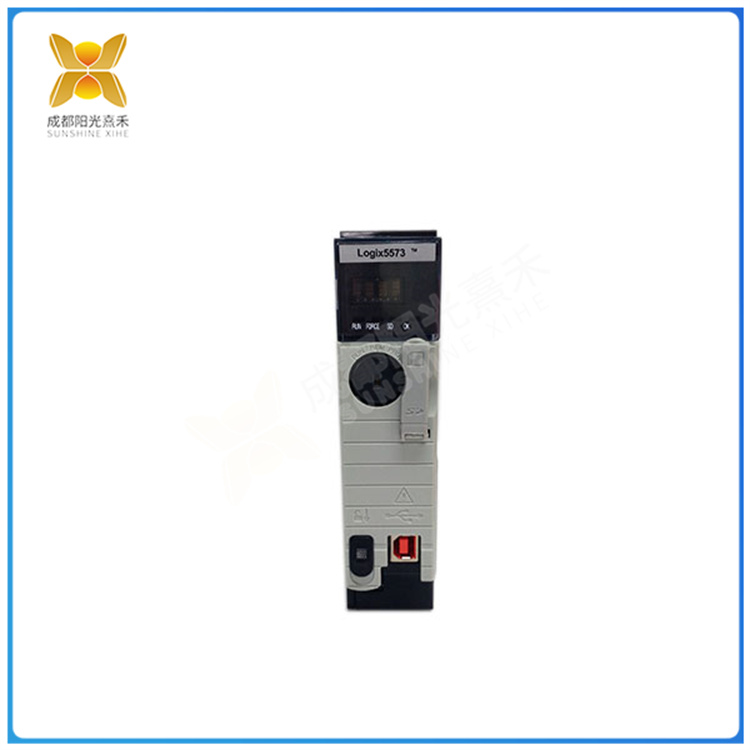

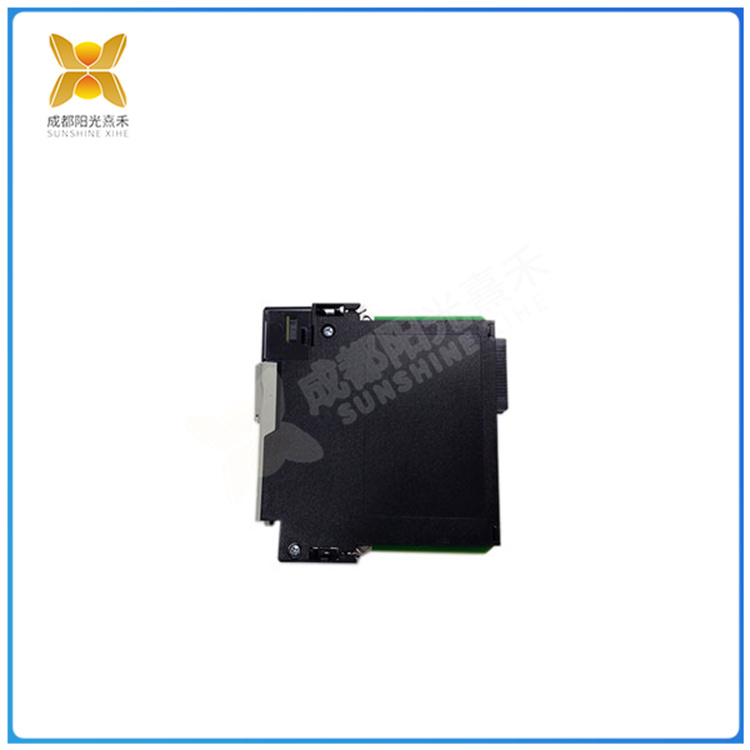

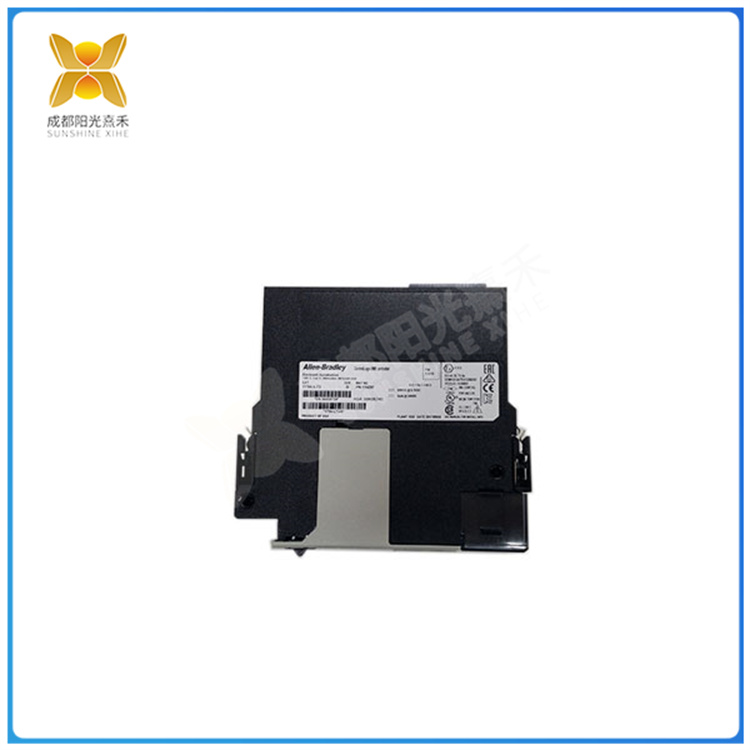

1756-L73? ControlLogix處理器模塊

Allen-Bradley 1756-L73是屬于Logix 5570產品類別的ControlLogix處理器模塊。這是一種可編程自動化控制器(PAC ),兼容用于控制工廠中的大型應用或過程自動化應用。它支持單工配置和高可用性(幾余)控制器配置以提高系統可用性。
1756-L73夠連接128，000個輸入和輸出信號以及4000個模擬輸入和輸出信號，它可以實現本地/0配置，其中/0模塊安裝在安裝控制器的同機箱內，或者實現分布式/0拓撲，其中擴展/0安裝在遠離處理器的位置，并通過擴展通信總線提供/0，該控制器支持以太網/P、DeviceNet.ControlNet Synchlink以及傳統通信協議，如Data Highway lus (DH+)、Remote l/0 (RIO)和第=方協議，它也可以被配置成與網關和協議轉換器通信。同樣，該控制器與任何Allen-Bradley encompose partner control logix模塊兼容.
該控制器還帶有集成運動，因為它支持SERCOS接口、模擬運動傳感器和以太網P上的運動控制。在對該控制器進行編程時，適用的編程語言包括繼電器梯形圖、結構化文本、功能框圖和順序功能圖
該控制器夠處理32個控制器任務，每個任務100個程序，而事件任務接受所有事件觸發，該控制器配有8MB用戶內存和0.98 MB的V0內存。它還配備了能量存儲技術，無需使用電池來保存易失性存儲器中的內容.
1756-L73可以使用高達8 MB的用戶內存和0.98 MB的輸入/輸出內存，此外，它總共有128，000個數字/0，最多有4000個模擬/0，在1.2V DC下所熏的電流消耗是5 mA，在5,1V DC下黑要800 mA的電流消耗。1756-L73的功耗為25 W，散熱為8.5 BTU/小時，在基本緣條性下，隔密電玉持續為30 V，在500V交流電下測試60秒，使用USB 2.0，全速可以達到12 Mbps，約重0.25千克，1槽寬，開放式外殼.
亥模塊在1756機箱系列的任何插博中都是基于機箱的。1756-L73控制器的電源要求是標準的1756電源。它的接線類別是USB端口上的3。1756-L73控制器的工作溫度為0-60攝氏度，它的非工作溫度是-40-85攝氏度，攝氏度，它能工作的最高環境溫度是60。5- 95%非冷凝相對濕度，其工作振動為10-500 Hz，為2 g，工作沖擊為30 ，非工作沖擊為50 g，安裝SD卡時可達45 g.

1756-L73? ControlLogix處理器模塊

The Allen-Bradley 1756-L73 is a ControlLogix processor module belonging to the Logix 5570 product category. It is a programmable automation controller (PAC) that is compatible for controlling large applications in factories or process automation applications. It supports simplex configuration and high availability (multiple) controller configuration to improve system availability.
The 1756-L73 is capable of connecting 128,000 input and output signals and 4,000 analog input and output signals, enabling either a local /0 configuration where the /0 module is installed in the same box where the controller is installed, or a distributed /0 topology where the extension /0 is installed away from the processor and provided via the extension communication bus. The controller supports Ethernet /P, DeviceNet.ControlNet Synchlink, and traditional communication protocols such as Data Highway lus (DH+), Remote l/0 (RIO), and th = square protocols, and can also be configured to communicate with gateways and protocol converters. Again, this controller is compatible with any Allen-Bradley encompose partner control logix module.
The controller also comes with integrated motion as it supports SERCOS interfaces, analog motion sensors and motion control over Ethernet P. When programming the controller, the applicable programming languages include relay ladder diagram, structured text, function block diagram and sequence function diagram
The controller can handle 32 controller tasks with 100 programs per task, while the event task accepts all event triggers, and the controller is equipped with 8MB of user memory and 0.98MB of V0 memory. It is also equipped with energy storage technology that eliminates the need to use batteries to preserve the contents of volatile memory.
The 1756-L73 can use up to 8 MB of user memory and 0.98 MB of input/output memory, in addition, it has a total of 128,000 digital /0, up to 4,000 analog /0, and the current consumption is 5 mA at 1.2V DC and 800 mA at 5,1V DC. The 1756-L73 has a power consumption of 25 W, a heat dissipation of 8.5 BTU/ hour, a continuous density of 30 V under basic edge strip, a test of 60 seconds under 500V AC, using USB 2.0, full speed can reach 12 Mbps, about 0.25 kg, 1 slot wide, open housing.
The Hai module is chassis based in any plug-in of the 1756 chassis series. The power requirements for the 1756-L73 controller are the standard 1756 power supply. Its wiring category is 3 on the USB port. The operating temperature of the 1756-L73 controller is 0-60 degrees Celsius, its non-operating temperature is -40-85 degrees Celsius, Celsius, it can work at the highest ambient temperature is 60. 5-95% non-condensing relative humidity, its operating vibration is 10-500 Hz, is 2 g, working shock is 30, non-working shock is 50 g, and can reach 45 g when SD card is installed.
