描述

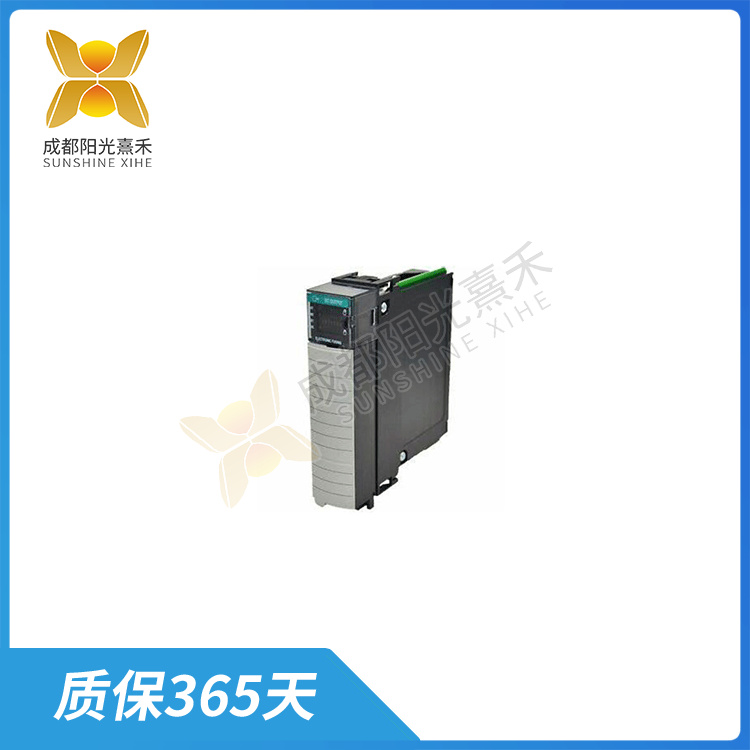

1756-OB16E 單插槽寬模塊

1756-OB16E?是一個離散輸出模塊，特別是Allen-Bradley公司ControlLogix可編程自動化控制器（PLC）平臺的一部分。這個模塊的主要功能是作為DC輸出模塊，用于驅動各種設備。

以下是關于1756-OB16E的詳細特性：

1. 輸出電壓范圍：其輸出電壓范圍為10～31.2 VDC，標稱值為24VDC。這意味著該模塊能夠提供一個穩定且可調節的直流電源，滿足多種設備的工作需求。
2. 輸出通道：該模塊帶有16個輸出通道，分為兩個電子融合組，每組包含8個通道。這種設計使得模塊能夠同時控制多個設備，提高了工作效率和靈活性。
3. 設備驅動：該模塊通常用于驅動24VDC額定設備，如繼電器線圈、螺線管驅動設備、指示燈、警報器和其他類似的電氣負載。其穩定的輸出電壓和強大的驅動能力使得這些設備能夠正常工作。
4. 兼容性：1756-OB16E是一個單槽寬模塊，可以與任何1756 ControlLogix控制器兼容使用。這意味著它可以輕松地安裝到任何1756 ControlLogix機架上，特別是1756-A4、1756-A17、1756-A10、1756-A13和1756-A17等型號。

在工業自動化和控制系統中，1756-OB16E的輸出模塊發揮著至關重要的作用。它能夠根據控制器的指令，精確地控制各種設備的開關狀態，從而實現自動化生產。同時，其穩定的性能和可靠的質量也保證了系統的長期穩定運行。

需要注意的是，雖然該模塊具有許多優點，但在實際使用中仍需要根據具體的應用場景和需求進行選擇和配置。此外，為了確保模塊的正常工作和系統的穩定運行，還需要定期進行維護和保養。

總的來說，1756-OB16E是一個功能強大、性能穩定的離散輸出模塊，適用于各種工業自動化和控制系統的需求。

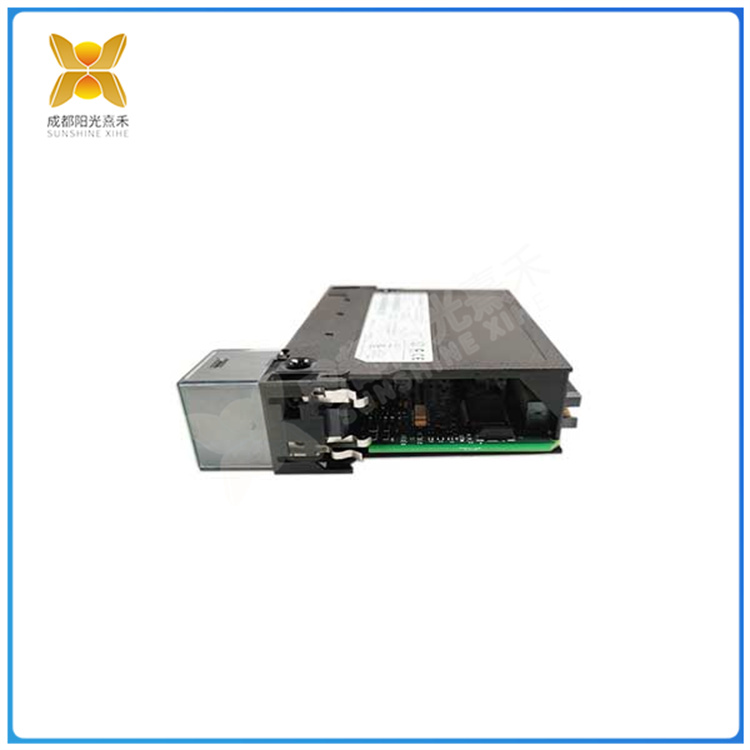

1756-OB16E 單插槽寬模塊

The 1756-OB16E is a discrete output module, specifically part of the Allen-Bradley ControlLogix Programmable Automation Controller (PLC) platform. The main function of this module is as a DC output module for driving various devices.

The following are the detailed features of the 1756-OB16E:

Output voltage range: Its output voltage range is 10 ~ 31.2 VDC, the nominal value is 24VDC. This means that the module is able to provide a stable and adjustable DC power supply to meet the working needs of a variety of devices.

Output channels: The module comes with 16 output channels, divided into two electron fusion groups, each group contains 8 channels. This design allows the module to control multiple devices simultaneously, increasing work efficiency and flexibility.

Device drivers: This module is typically used to drive 24VDC rated devices such as relay coils, solenoid drive devices, indicators, alarms, and other similar electrical loads. Its stable output voltage and powerful drive capability make these devices work properly.

Compatibility: The 1756-OB16E is a single slot wide module that can be used with any 1756 ControlLogix controller. This means it can be easily mounted to any 1756 ControlLogix rack, especially models such as the 1756-A4, 1756-A17, 1756-A10, 1756-A13, and 1756-A17.

In industrial automation and control systems, the output module of the 1756-OB16E plays a crucial role. It can precisely control the switching state of various equipment according to the instructions of the controller, so as to realize automated production. At the same time, its stable performance and reliable quality also ensure the long-term stable operation of the system.

It should be noted that although the module has many advantages, it still needs to be selected and configured according to specific application scenarios and requirements in actual use. In addition, in order to ensure the normal operation of the module and the stable operation of the system, it is also necessary to carry out regular maintenance and maintenance.

Overall, the 1756-OB16E is a powerful and stable discrete output module suitable for the needs of various industrial automation and control systems.
