描述

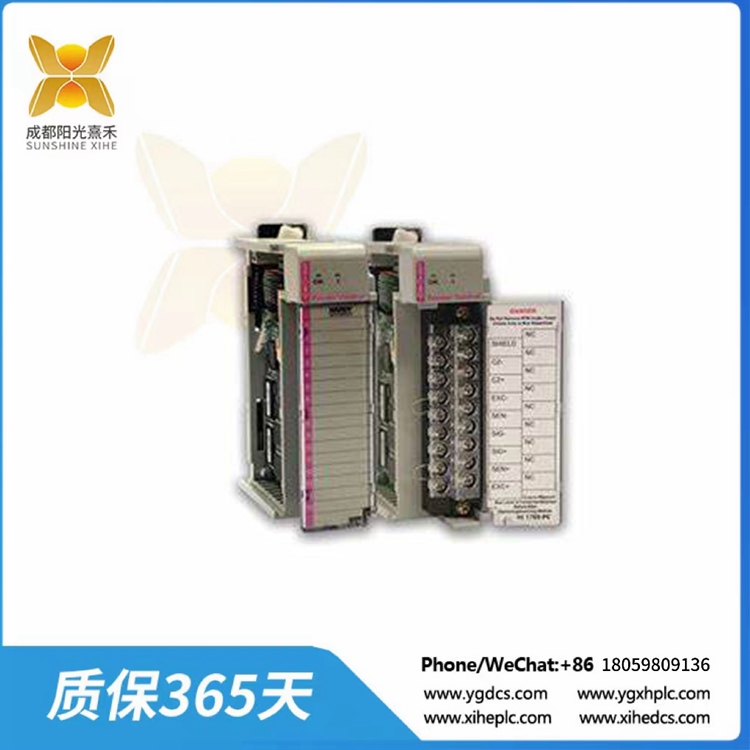

1769-2WS 磅秤模塊

1769-2WS是一款與CompactLogix兼容的模塊，由Rockwell Automation Silver Technology的合作伙伴公司Hardy Process Solutions制造。該模塊是一個雙通道稱重模塊，支持多達8個稱重傳感器/點的連接。1769-2WS的背板功耗< 0.5由背板提供的5VDC電源的安培。該模塊接受-0.3mV至+15.3 mV信號，檢測+5Vdc，而模塊輸出為5Vdc激勵電壓。它在60 Hz或以下(最小)具有100dB的共模抑制，內部模塊分辨率為1:8 388,608。該模塊可在凈、毛、變化率稱重模式下運行，數據轉換速率為每秒100次更新。該模塊支持兩種校準方法，一種是使用電子方法(C2)，另一種是使用測試權重的傳統方法。1769-2WS占用背板的單個插槽，支持DIN-Rail或面板安裝。它通過模塊側面的集成背板連接器引腳連接到背板上，該引腳直接耦合到相鄰模塊。本模塊內置“OK”模塊狀態、雙色LED“刻度1”功能數據、雙色LED“刻度2”功能數據、雙色LED等狀態指示燈。

Hardy HI 1769-2WS模塊是由Hardy Process Solutions專門設計和制造的固態模塊，作為雙通道模塊，可以適應Allen-Bradley MicroLogix1500和CompactLogix系列可編程邏輯控制器。Hardy HI 1769-2WS模塊的主要目的是讀取和調節由一對或幾對應變片負載傳感器或稱重傳感器測量的數據，以便由MicroLogix 1500或CompactLogix系列plc進一步處理。有了這個模塊，就可以實時測量體重，而不需要外部的獨立秤。相反，這個模塊被建在需要稱重的材料的系統中。哈代HI 1769-2WS模塊可用于為多達8個350歐姆負載傳感器或具有兩個量程的稱重傳感器提供5伏直流電壓。額外的稱重傳感器可以通過使用外部電源來支持。該模塊的輸入信號將數據帶到PLC工作的模擬范圍從-0.3 mV到+15.3 mV。模塊工作溫度范圍為0 ~ 60攝氏度(32 ~ 140華氏度)。有兩種不同的方法來校準哈代HI 1769-2WS重量模塊，它們是專有的C2電子校準方法和使用測試重量的傳統方法。

1769-2WS 磅秤模塊

The 1769-2WS is a CompactLogix compatible module that is manufactured by Hardy Process Solutions, a Rockwell Automation Silver Technology partner company. This module is a dual-channel weigh scale module and supports the connection of up to Eight (8) load cells / Points. The 1769-2WS has a backplane power consumption of < o.5 Ampere at 5VDC power supplied by the backplane. This module accepts -0.3mV through +15.3 mV signals and sense +5Vdc while the module output is 5VDC excitation voltage. It has a common mode rejection of 100dB at or below 60 Hz (minimum) and an internal module resolution of 1:8,388,608. This module can be operated in Net, Gross, Rate-of-change weighing modes with a data conversion rate of 100 updates per second. This module supports Two (2) calibration methods using the electronic method (C2) and the traditional method which is the use of test weights. The 1769-2WS occupies a single slot of the backplane and supports DIN-Rail or panel mounting. It attaches to the backplane via the integrated backplane connector pins on the side of the module which directly couples to the adjacent module. This module has built-in status indicators such as “OK” Module Status, bi-color LED “Scale 1” Functional Data, bi-color LED “Scale 2” Functional Data, bi-color LED.

The Hardy HI 1769-2WS module is a solid-state module that is specifically designed and manufactured by Hardy Process Solutions as a dual-channel module that can be adapted into the Allen-Bradley MicroLogix1500 and CompactLogix series programmable logic controllers. The main purpose of the Hardy HI 1769-2WS module is to read and condition the data that is measured by one or several pairs of strain gauge load sensors or load cells for further processing by the MicroLogix 1500 or CompactLogix series PLCs. With this module, it is possible to have a real-time weight measurement with no need for an external stand-alone scale. Instead, the module is built right into the system where the material that needs to be weighed. The Hardy HI 1769-2WS module can be used to supply 5 Volts DC voltage for up to eight 350-ohm load sensors or for load cells with two scales. Additional load cells can be supported by the use of external power supplies. The module’s input signals bring data to the PLC work in an analog range from -0.3 mV through +15.3 mV. The operating temperature of the module ranges from 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). There are two different ways to calibrate a Hardy HI 1769-2WS weight module, and they are the proprietary C2 Electronic Calibration method and the traditional method using test weights.
