描述

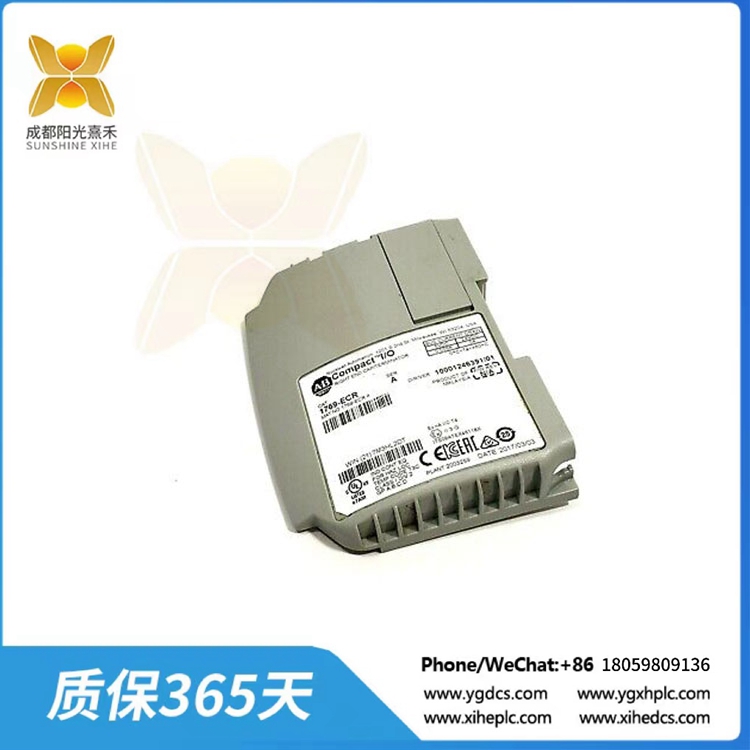

1769-ECR 右端蓋模塊

Allen-Bradley 1769-ECR是一個右端蓋(ECR)模塊，與CompactLogix控制器系列一起使用。該模塊作為總線終止器，終止FlexBus電路，發出CompactLogix組件結束的信號。該模塊是限定CompactLogix配置所必需的。1769-ECR的特點是5.1 VDC下的5 mA電流。它的工作高度為2000米或6562英尺，重量約為130克或0.286磅。它具有開放式外殼等級，工作溫度為0 -60°C或32-140°F)，而存儲溫度為-40至85°C(-40至185°F)，相對濕度為5-95%，不凝結。必須安裝在震動不超過5g, 10- 500hz的位置。當安裝DIN導軌時，它的工作沖擊額定值為20g，當CompactLogix系統直接安裝到外殼時，它的工作沖擊額定值為30g。1769-ECR必須在系統斷電時安裝或拆卸。在未通電的情況下拆卸或插入將導致控制器錯誤和停機，這是不可取的，特別是對于功能和活躍的操作系統。要安裝1769-ECR，必須將母線杠桿從接合位置抬起。完成后，將ECR模塊與導向槽對齊，輕輕推動ECR模塊，直到它與CompactLogix模塊相鄰并對齊。使用總線杠桿連接ECR模塊并關閉FlexBus。如果在母線杠桿接觸過程中感覺到阻力，檢查ER是否正確對準模塊和導槽。

艾倫-布拉德利1769- ecr是一個右端蓋或終止終端的1769控制器的通信總線的結束。它在5V DC下的最大母線電流為5ma。它的操作高度為6562英尺，運輸重量約為0.286磅。它有一個開放式的外殼，以確保安全，它可以適應一定的條件，以減少火災和傷害的風險。為了滿足健康和安全要求，1769-ECR在2區環境中應用時應安裝IP54防護，因為它不耐受陽光和其他紫外線輻射源。1769-ECR的工作溫度為32 – 140華氏度，可在寒冷、干熱和熱沖擊環境中進行測試。它的非工作溫度為40 – 185華氏度。在寒冷，干熱和熱沖擊期間未包裝測試。此外，1769- ecr5 – 95%的非冷凝相對濕度，其振動達到5 g在10 – 500赫茲測試運行期間。它有一個操作沖擊是20克的DIN導軌安裝和30克的面板安裝。它的非操作沖擊在DIN導軌上為30克，在面板安裝上為40克。

1769-ECR 右端蓋模塊

The Allen-Bradley 1769-ECR is a Right End Cap (ECR) module that is used with the CompactLogix controller series. This module functions as a bus terminator, terminating the FlexBus circuitry, signaling the end of the CompactLogix assembly. This module is necessary to qualify the CompactLogix configuration. The 1769-ECR features a current draw of 5 mA at 5.1 VDC. It has an operating altitude of 2000 m or 6562 ft and approximately weighs 130 grams or 0.286 lb. It has an open style enclosure rating, an operating temperature of 0 -60 °C or 32-140 °F) while the storage temperature is -40 to 85 °C (-40 to 185 °F and relative humidity of 5-95%, non-condensing. It must be installed at a location with vibration not exceeding 5 g, 10-500 Hz. It also has an operating shock rating of 20g when DIN rail is mounted and 30g when the CompactLogix system is directly mounted to the enclosure. The 1769-ECR must only be installed or removed when power is removed from the system. Removal or insertion under power will cause controller error and stoppage which is not desirable especially with a functional and actively operating system. To install the 1769-ECR, the bus lever must be lifted from its engaged position. Once done, align the ECR module along with the guide slots and gently push the ECR module until it is adjacent and in line with the CompactLogix module. Engaged the bus lever to connect the ECR module and close the FlexBus. If resistance is felt during the engagement of the bus lever, inspect if the ER is properly aligned to the module and the guide slot.

The Allen-Bradley 1769-ECR is a right end cap or terminator that terminates the end of the communication bus of a 1769 controller. It has a maximum bus current draw of 5 mA at 5V DC. It comes with an operating altitude of 6562 feet and an approximate shipping weight of 0.286 lbs. It has an open-type enclosure to ensure safety and it can adapt to certain conditions to reduce the risk of fire and injury. To meet health and safety requirements, the 1769-ECR should be installed with IP54 protection when applied in zone 2 environments because it has no tolerance for sunlight and other UV radiation sources. The 1769-ECR has an operating temperature of 32 – 140 deg. F tested in cold, dry heat, and thermal shock environments. It has a non-operating temperature of 40 – 185 deg. F tested unpackaged during cold, dry heat, and thermal shock. The also 1769-ECRhas a 5 – 95% noncondensing relative humidity and its vibration reaches 5 g at 10 – 500 Hz tested during operating. It has an operating shock is 20 g on a DIN rail mount and 30 g on a panel mount. Its non-operating shock is 30 g on a DIN rail and 40 g on a Panel mount.
