1769-L23E-QB1B? ?CompactLogix 控制器

1769-L23E-QB1B是Allen-Bradley封裝的控制器。該控制器是CompactLogix 5370 L2產品類別的一部分，該產品具有嵌入式功能，使該控制器能夠開箱即用。它具有集成電源，由24VDC的標稱電源電壓運行，為控制器的集成模塊提供必要的背板電源。

此外，1769-L23E-QB1B還內置16路24VDC離散輸入和16路離散輸出。I/O擴展可以通過安裝額外的三(3)1769緊湊型I/O模塊來定制適合該控制器的應用要求。它還提供了512KB的用戶內存，可以容納多達32個周期或連續的任何組合，每個任務有100個程序。

對于控制器通信，1769-L23E-QB1B具有單個以太網端口和USB接口。兩個端口都支持高速通信，以太網支持10/ 100mbps傳輸速率，RS232通信接口支持DF1, DH485和ASCII接口。這些端口特別支持與監控和數據采集(SCADA)，人機界面(HMI)以及相同以太網和RS232連接中的控制器的通信。

版本17.01.02，修訂17.012;19.01.00修訂19.015;20.01.00，修訂20.013。

它有一個嵌入式的24伏直流電源和一個1000毫安的總線電流在5伏直流。1769-L23E-QB1B控制器的請求包間隔(RPI)速度在1到4個模塊之間的掃描時間約為1.0毫秒。它配備了一個艾倫-布拉德利1769-BA可更換電池。在24伏直流電下，Allen-Bradley 1769-L23E-QB1B緊湊型控制器的輸出電流為700毫安，耗散功率為7瓦。設備可以通過Allen-Bradley 1756-CP3或1747-CP3串行電纜連接到1769-L23E-QB1B。它在30攝氏度(86華氏度)下工作，電壓為10到30伏。其他嵌入式功能包括3千歐姆的輸入阻抗，250毫安的最大浪涌電流，最大5伏直流的斷開狀態電壓，以及1.5毫安的斷開狀態電流。1769-L23E-QB1B緊湊型控制器還具有嵌入式輸出功能，其中16單元輸出，輸出延遲時間為0.1毫秒，26.4伏直流時最大漏電流為1.0毫安。1769-L23E-QB1B控制器每個模塊的電流在60攝氏度(140華氏度)時額定為4.0安培。1769-L23E-QB1B控制器的重量約為0.91千克(2磅)，它可以安裝在DIN導軌或面板安裝基座上。

1769-L23E-QB1B? ?CompactLogix 控制器

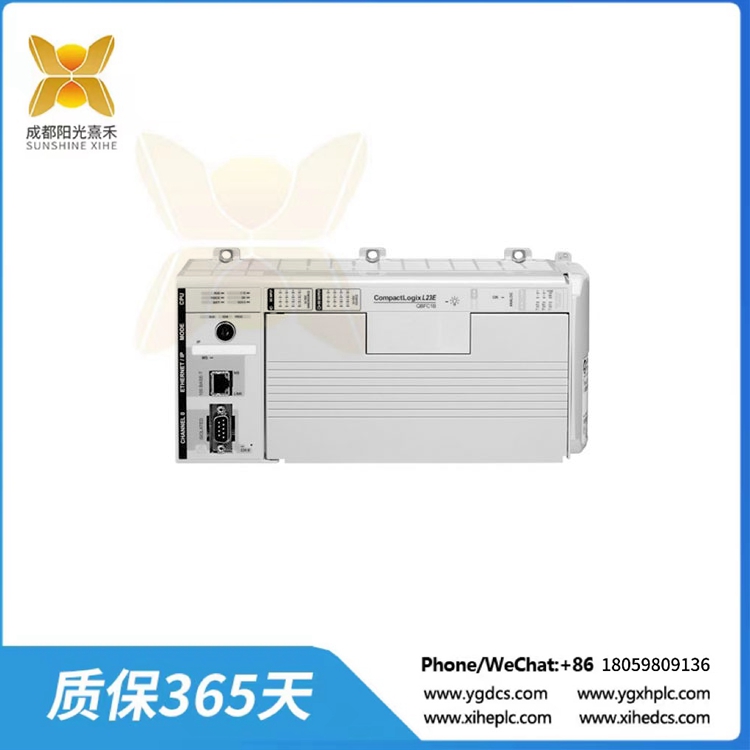

The 1769-L23E-QB1B is an Allen-Bradley packaged controller. This controller is part of the CompactLogix 5370 L2 product category that comes with embedded features, enabling this controller to function out of the box. It has integrated power supply that is operated by nominal supply voltage of 24VDC which supplies the necessary backplane power to the integrated modules of the controller.

In addition, the 1769-L23E-QB1B has built-in 16 channels of 24VDC Discrete inputs and 16 channels of Discrete outputs as well. I/O expansion is allowed by installation of additional Three (3) 1769 Compact I/O modules to custom fit this controller to the application requirement. It is also provided with 512KB user memory which can accommodate up to any combination of 32 periodic or continuous with 100 programs per task.

For controller communication, the 1769-L23E-QB1B feature a single Ethernet port and a USB interface. Both ports support high speed communication, with ethernet supporting 10/100 Mbps transmission rate and an RS232 communication interface that supports DF1, DH485 and ASCII interface. These ports specifically support communication with Supervisory Control and Data Acquisition (SCADA), Human Machine Interface (HMI), and controllers within the same Ethernet and RS232 connections.

For Version 17.01.02, revision 17.012; 19.01.00 revision 19.015; For 20.01.00, revision 20.013.

It has an embedded 24 Volts DC power supply and a 1000 milliamps BUS current at 5 Volts DC. The 1769-L23E-QB1B controller has a request packet interval (RPI) speed of approximately 1.0 millisecond of scan time across 1 to 4 modules. It comes with an Allen-Bradley 1769-BA replaceable battery. At 24 Volts DC, the Allen-Bradley 1769-L23E-QB1B compact controller has a drawn current of 700 milliamps and it dissipates 7 Watts of power. Devices can be connected to the 1769-L23E-QB1B through the Allen-Bradley 1756-CP3 or 1747-CP3 serial cables. It operates at 10 to 30 Volts DC at 30 degrees Celsius (86 degrees Fahrenheit). Additional embedded features include an input impedance of 3 kiloohms, a maximum inrush current of 250 milliamps, an off-state voltage of 5 Volts DC maximum, and an off-state current of 1.5 milliamps. The 1769-L23E-QB1B compact controller also has embedded output features which are a 16-unit output, an output delay time of 0.1 milliseconds, and a maximum leakage current of 1.0 milliamps at 26.4 Volts DC. The current across each module of the 1769-L23E-QB1B controller is rated at 4.0 Amps at 60 degrees Celsius (140 degrees Fahrenheit). The 1769-L23E-QB1B controller has an approximate weight of 0.91 kilograms (2 pounds) and it can be mounted on a DIN rail or on a panel mounting base.
