描述

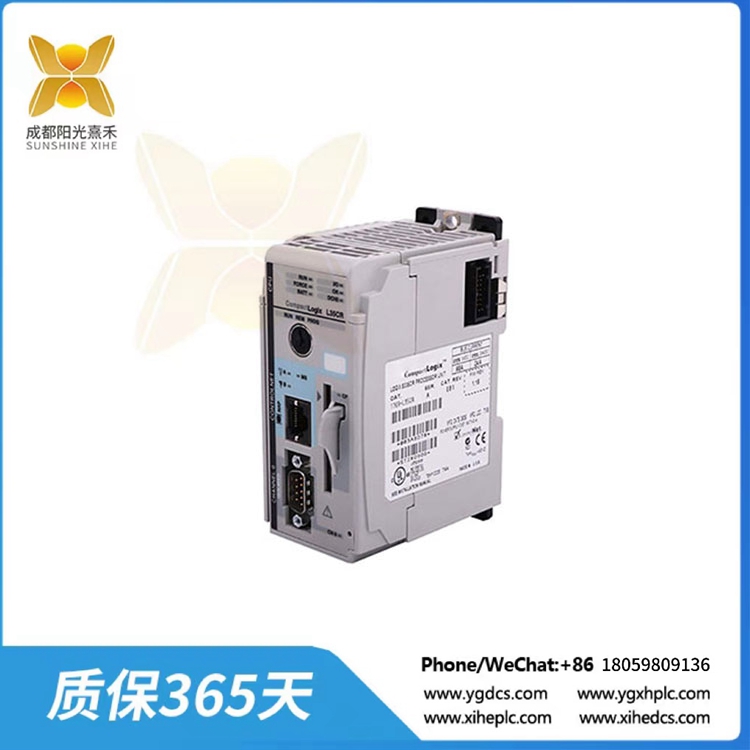

1769-L32E CompactLogix 750KB Enet控制器

零件號為1769-L32E的CompactLogix模塊化控制器是由Allen-Bradley制造的可編程自動化控制器(PAC)。該控制器通常用于機器控制和中型過程應用?？刂破饔幸粋€集成的RS232和一個以太網通信端口。

RS232接口的默認配置為DF1全雙工、19.2 Kbps、無奇偶校驗、站地址0、無握手、BCC錯誤檢測、自動檢測嵌入式響應、8個數據位和1個停止位。此默認配置可以手動配置，以建立與設備的初始通信。如果與RSLinx-起使用，自動配置可用于自動檢測通信設置。該RS232端口也可配置為ASCII協議接口，以連接條形碼儀器，通常用于制造過程。

以太網通信需要初始配置，這可以通過使用BOOTP-DHCP或通過RS232接口下載來完成。 通過使用BOOTP-DHCP,需要以太網電纜將控制器連接到BOOTP主機。

Allen- Bradley 1769-L32E緊湊型Logix控制器采用獨特、緊湊且具有成本效益的封裝。它具有集成的一(1)個以太網和一(1)個串行通信端口。它可以通過1747-CP3或1756-CP3電纜或以太網電纜連接到設備。它有一個750 KB的集成用戶存儲器，可使用CompactFlash卡進行擴 展，產品型號為1784-CF128。

1769-L32E有一個可更換的電池， 其相應的部件號為1769-BA。該控制器支持安裝多達十六(16)個緊湊型I/O模塊，最多可通過2根擴展電纜連接3個1/O組。1769-L32E的(5伏)DC電流為850毫安,散熱高達6.5瓦。1769-L32E可以使用DIN安裝 或面板安裝方法輕松安裝。DIN支架的工作沖擊額定值為30 G,非工作沖擊額定值為50 G,而面板在工作模式下的沖擊額定值為30 G,非工作模式下的沖擊額定值為50 G。

1769-L32E控制器在工作模式下的振動額定值為5 G。它可以承受1.1至1.8 N-m的安裝扭矩力。1769-L32E的工作溫 度范圍為0至60攝氏度(32至140華氏度)，儲存溫度范圍為-40至85攝氏度(-40至185華氏度),非冷凝相對濕度范圍為0至95%。該Logix控制器 具有1組認證排放(CISPA11)等級，并且具有獨特的開放式外殼。絞合線的建議線尺寸在22和16 AWG之間，而實心線的額定值應在22和14 AWG之間。該模塊裝運時重約2磅，尺寸為8x8x 5英寸。

CompactLogix 1769系列可作為傳統Allen Bradley PLC系列、PLC5和SLC500的遷移平臺。 包括1769-L32E在內的各種CompactLogix 1769產品可確保保持和增強之前的處理器功能。
1769-L32E處理器最多可安裝十六(16)個緊湊型I/O模塊。它還通過添加多達三(3)個/O擴展庫來支持擴展。該控制器的集成存儲器達到750千字節,可通過安裝1784-CF64或1784-CF128 CompactFlash卡與非易失性存儲器耦合。該控制器使用1769-BA來保留用戶內存。 避免電池完全放電,因為這可能會清除包括用戶程序在內的用戶存儲器。使用非易失性存儲器來防止這種事件。

1769-L32E CompactLogix 750KB Enet控制器

The CompactLogix modular controller with part number 1769-L32E is a Programmable automation controller (PAC) manufactured by Allen-Bradley. The controller is commonly used in machine control and medium process applications. The controller has an integrated RS232 and an Ethernet communication port.

The default configuration of the RS232 interface is DF1 full duplex, 19.2 Kbps, no parity, station address 0, no handshake, BCC error detection, automatic detection of embedded response, 8 data bits, and 1 stop bit. This default configuration can be manually configured to establish initial communication with the device. If used with RSLinx-, autoconfiguration can be used to automatically detect communication Settings. The RS232 port can also be configured as an ASCII protocol interface to connect barcode instruments, which are commonly used in manufacturing processes.

Ethernet communication requires initial configuration, which can be done by using BOOTP-DHCP or downloading through the RS232 interface. By using BOOTP-DHCP, an Ethernet cable is required to connect the controller to the BOOTP host.

The Allen-Bradley 1769-L32E compact Logix controller comes in a unique, compact and cost-effective package. It has integrated one (1) Ethernet and one (1) serial communication port. It can be connected to the device via a 1747-CP3 or 1756-CP3 cable or an Ethernet cable. It has a 750 KB integrated user memory and can be expanded with CompactFlash cards, model number 1784-CF128.

The 1769-L32E has a replaceable battery with the corresponding part number 1769-BA. The controller supports the installation of up to sixteen (16) compact I/O modules with up to three 1/O groups connected via two expansion cables. The 1769-L32E has a (5 volt)DC current of 850 mA and a heat dissipation of up to 6.5 Watts. The 1769-L32E can be easily installed using DIN mounting or panel mounting methods. The DIN bracket has an operating impact rating of 30 G and a non-operating impact rating of 50 G, while the panel has an impact rating of 30 G in operating mode and 50 G in non-operating mode.

The 1769-L32E controller has a vibration rating of 5 G in operating mode. It can withstand mounting torque forces of 1.1 to 1.8 N-m. The 1769-L32E has an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and a non-condensing relative humidity range of 0 to 95%. The Logix controller has a set of certified emissions (CISPA11) rating and has a unique open housing. The recommended line size for stranded lines is between 22 and 16 AWG, while solid lines should be rated between 22 and 14 AWG. The module weighs about 2 pounds when shipped and measures 8x8x 5 inches.

The CompactLogix 1769 series serves as a migration platform for the legacy Allen Bradley PLC series, PLC5 and SLC500. A variety of CompactLogix 1769 products, including the 1769-L32E, ensure that previous processor capabilities are maintained and enhanced.
The 1769-L32E processor can fit up to sixteen (16) compact I/O modules. It also supports extensions by adding up to three (3) /O extension libraries. The controller has an integrated memory of 750 kilobytes and can be coupled to non-volatile memory by installing a 1784-CF64 or 1784-CF128 CompactFlash card. The controller uses 1769-BA to reserve user memory. Avoid full battery discharge, as this may wipe out user memory, including user programs. Use non-volatile memory to prevent such events.
