描述

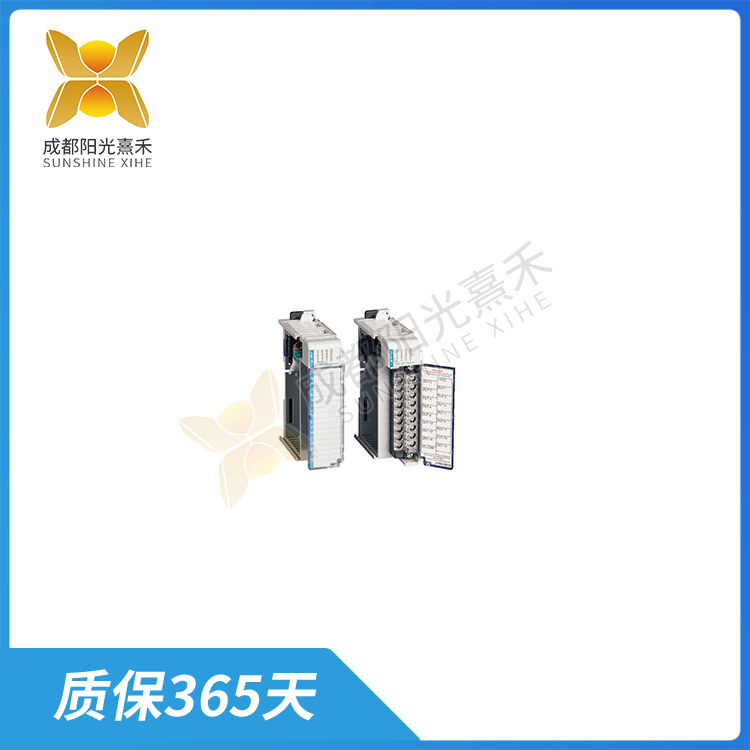

1769-OB16 數字量輸出模塊

1769-OB16是一款數字量輸出模塊，通常用于工業自動化系統中，特別是在PLC（可編程邏輯控制器）的應用中。它屬于工業級產品，設計用于在惡劣的工業環境中穩定可靠地工作。

該模塊具有多種特性，如高集成度、高可靠性、快速響應等。它能夠?qū)LC內部的數字信號轉換為外部設備可以識別的控制信號，從而實現對外部設備的精確控制。

在電壓輸入時（如0~10VDC, 0~5VDC），1769-OB16模塊的模擬量輸入電路的輸入電阻為20kΩ。而在電流輸入時（如4~20mA），模擬量輸入電路的輸入電阻為250Ω。這些參數確保了模塊在不同輸入條件下的穩定性和準確性。

此外，1769-OB16模塊在電壓輸出時的外部負載電阻為2kΩ/~1MΩ，電流輸出時小于500Ω。這些參數有助于確保模塊在輸出時的穩定性和可靠性。

在精度方面，當模擬量輸入滿量程時（如10V），該模塊的數字量轉換值為4000。在滿量程前，其總體精度為±1%，這保證了模塊在轉換過程中的準確性。

總的來說，1769-OB16數字量輸出模塊是一款性能優越、穩定可靠的工業自動化產品，適用于各種需要精確控制外部設備的場景。如需更多關于該模塊的信息，建議查閱相關的技術文檔或咨詢專業的工業自動化技術人員。

1769-OB16 數字量輸出模塊

The 1769-OB16 is a digital output module commonly used in industrial automation systems, especially in PLC (Programmable logic controller) applications. It is an industrial-grade product designed to work reliably in harsh industrial environments.

The module has many characteristics, such as high integration, high reliability, fast response and so on. It can convert the digital signal inside the PLC into the control signal that can be recognized by the external device, so as to realize the precise control of the external device.

At voltage input (e.g., 0~10VDC, 0~5VDC), the input resistance of the analog input circuit of the 1769-OB16 module is 20kΩ. In the current input (such as 4~20mA), the input resistance of the analog input circuit is 250Ω. These parameters ensure the stability and accuracy of the module under different input conditions.

In addition, the 1769-OB16 module has an external load resistance of 2kΩ/~1MΩ at voltage output and less than 500Ω at current output. These parameters help ensure the stability and reliability of the module when output.

In terms of accuracy, when the analog quantity is input at full scale (such as 10V), the digital quantity conversion value of the module is 4000. Before full scale, its overall accuracy is ±1%, which guarantees the accuracy of the module during the conversion process.

Overall, the 1769-OB16 digital output module is a superior, stable and reliable industrial automation product for a variety of scenarios requiring precise control of external devices. For more information about this module, it is recommended to consult the relevant technical documentation or consult a professional industrial automation technician.
