描述

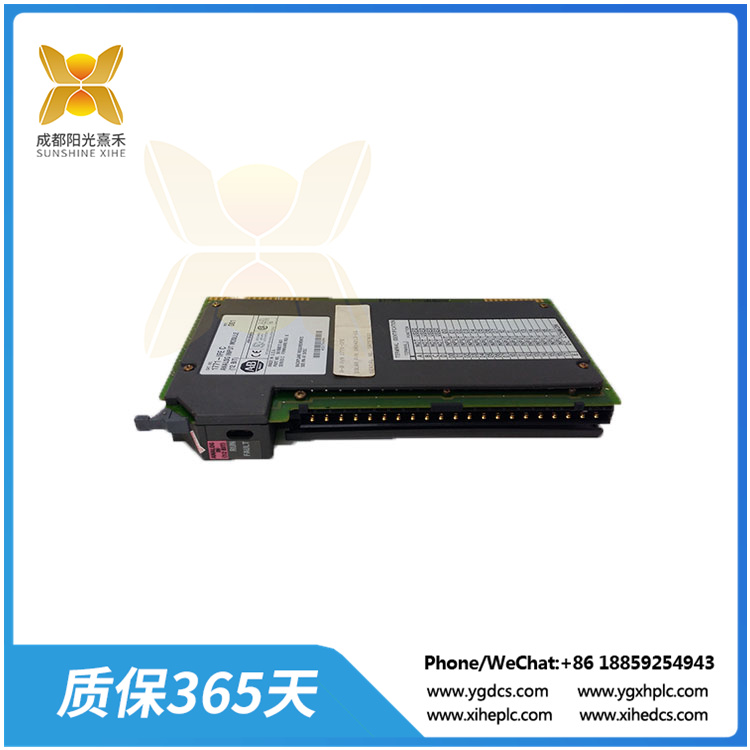

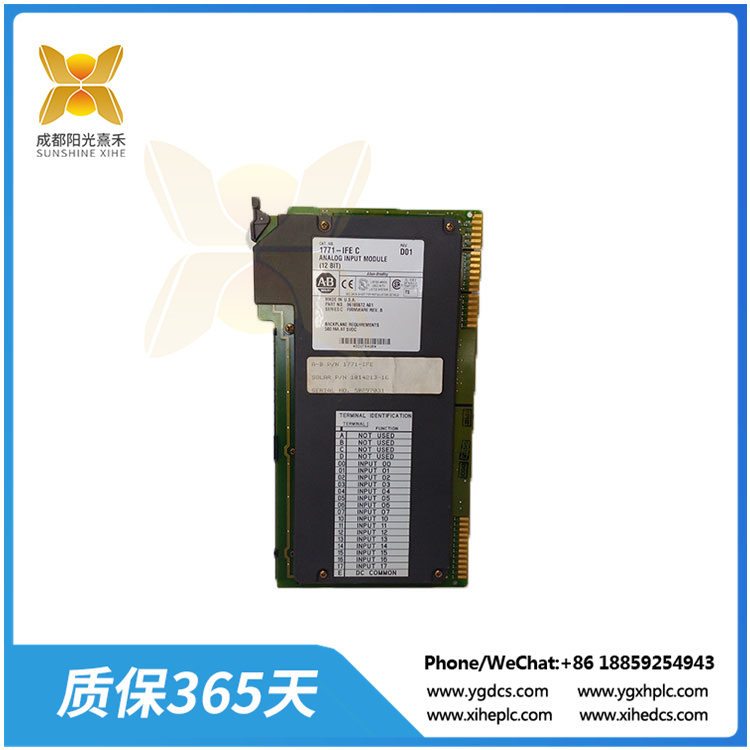

1771-IFE PLC5模擬輸入模塊

描述:Allen-Bradley 1771- ife是PLC5模擬輸入模塊，可與任何1771 I/O機箱兼容安裝。該模塊具有十六(16)單端通道或八(8)差分輸入通道。每個通道可配置輸入電壓和電流信號范圍為1至5V dc, 0至5V dc， -5至+5V dc， -10至+10V dc, 0至10V dc, 4至20mA, 0至20mA和20至+20mA。該模塊與BTW和BTR等塊傳輸指令一起使用，用于發送和接收模擬數據和指令。

Allen-Bradley 1771-IFE是一個PLC5模擬輸入模塊。該模塊接口模擬輸入與PLC處理器使用塊傳輸編程。它使用16位分辨率，并執行所需的模數轉換，反之亦然，將模擬信號與PLC數據表值接口。如果輸入通信中斷，它可以使用默認用戶配置自動響應故障。因此，它提供了對故障的可預測和安全的響應，并限制了故障的范圍。1771-IFE兼容于各種應用，如溫度，壓力，液位，流量和其他應用。它包含十六(16)單端或八(8)差分可選輸入。它具有自然二進制或BCD縮放到+/-9999數據格式。它的直流電壓范圍為-10至10伏，電流范圍為-20至20毫安。它的背板電流負載為750毫安，8通道的通道更新時間為8毫秒，16通道的通道更新時間為36毫秒，12位加號分辨率。

1771-IFE的最大功耗為2.5瓦，散熱為8.52 BTU/小時。它配備了一個1771-WG接線臂來取代模塊，消除了斷開接線的需要。它需要一個插槽用于安裝在I/O機箱中，正確安裝的鍵帶位于下部連接器的引腳10和12之間，以及上部連接器的引腳24和26之間。1771-IFE前面板上的“RUN”指示燈為綠色，“FAULT”指示燈為紅色。它包含光電隔離，以保護系統電路免受電瞬變的影響。它還包含一個輸入濾波功能，以減少電氣噪聲。

Allen-Bradley 1771-IFE是Allen-Bradley制造的模擬輸入模塊，用于傳統PLC 5可編程邏輯控制器系列。該模塊具有通道靈活性，具有16(16)單端輸入或8(8)差分輸入。這個模塊有各種各樣的

輸入信號的選擇，如1至5V dc, 0至5V dc， -5至+5V， -10至+10V dc, 0至10V dc，電壓和4至20mA, 0至20mA和-20至+20mA的電流信號。

該模塊用于測量過程變量(PV)，如壓力，液位，流量，溫度，速度，粘度，濁度，pH值，振動，位移和許多其他參數，這些參數可能由可選輸入信號表示。該模塊將接收信號轉換成成比例的四位數BCD或12位二進制值。

除了這種轉換之外，該模擬輸入模塊還提供了配置參數，例如用于調節采樣時間和減少波動的實時采樣，用于消除信號布線中存在的噪聲或干擾的數字濾波，縮放到工程單元以正確顯示轉換后的數據為可用值和測量值，數據格式用于為接收信號分配轉換格式。

該模塊可安裝在任何PLC5機箱和可用槽位上。

1771-IFE PLC5模擬輸入模塊

Description: The Allen-Bradley 1771-IFE is a PLC5 analog input module that is compatible for installation with any 1771 I/O chassis. This module has Sixteen (16) Single-eneded channels or Eight (8) Differential input channels. Each channel are configurable for input Voltage and Current signal ranges of 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, 4 to 20mA, 0 to 20mA, and 20 to +20mA. This module is used with Block transfer instructions such as BTW and BTR for sending and receiving analog data and instructions.

The Allen-Bradley 1771-IFE is a PLC5 Analog Input Module. This module interfaces analog inputs with PLC processors using block transfer programming. It uses a 16-bit resolution and performs the required analog-to-digital conversions and vice versa to interface analog signals with PLC data table values. If input communication is disrupted, it can respond automatically to the fault with the default user configuration. Thus, it provides a predictable and safe response to a fault and limits the extent of the fault. The 1771-IFE is compatible for use in various applications such as Temperature, Pressure, Level, Flow, and other applications. It contains Sixteen (16) single-ended or Eight (8) differential selectable inputs. It has Natural Binary or BCD scaling to a +/-9999 data format. It has a voltage range of -10 to 10 Volts DC and a current range of -20 to 20 mA. It has a backplane current load of 750 mA and a channel update time of 8 milliseconds for 8 channels, 36 milliseconds for 16 channels, and 12 bits plus sign resolution.

The 1771-IFE has a maximum power dissipation of 2.5 Watts and a thermal dissipation of 8.52 BTU/hour. It comes with a 1771-WG wiring arm to replace the module, eliminating the need to disconnect wiring. It requires one slot for installation in an I/O chassis and keying bands for correct installation is between pins 10 and 12 for the lower connector and pins 24 and 26 for the upper connector. The 1771-IFE module contains a green RUN and a red FAULT indicator light on the front panel. It contains optoelectrical isolation to protect the system circuits from electrical transients. It also contains an input filtering feature to reduce electrical noise.

The Allen-Bradley 1771-IFE is an analog input module that is manufactured by Allen-Bradley for use with the legacy PLC 5 Programmable Logic Controller family. This module features channel flexibility with Sixteen (16) Single-ended inputs or Eight (8) Differential inputs. This module has a wide variety of

of input signal selection such as 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, for Voltage and 4 to 20mA, 0 to 20mA, and -20 to +20mA for Current signals.

This module is used to enable measurement of Process Variables (PV) such as Pressure, Level, Flow, Temperature, Speed, Viscosity, Turbidity, pH, Vibration, Displacement and many other parameters that may be represented by the selectable input signals. This module converts the receive signal to a proportional four-digit BCD or twelve-bit binary value.

Aside from this conversion, this analog input module is provided with configuration parameters such as real-time sampling that is used to regulate the sampling-time and lessen fluctuations, digital filtering used to cancel out noise or interference present in the signal wiring, scaling to engineering units to properly display the converted data to usable values and measurements, data format to assign conversion format to the received signal.

This module is compatible for installation to any PLC5 chassis and available slot.
