描述

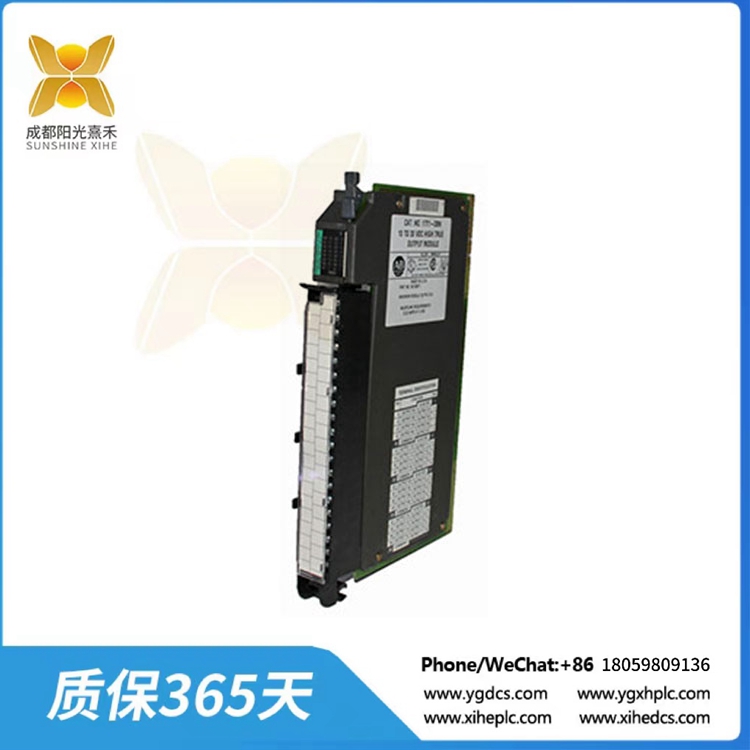

1771-OBN 數字直流輸出模塊

這個數字直流輸出模塊，1771-OBN，由艾倫布拉德利，作為開式設備提供，不適用于污染大于2的工業環境，當應用于2區環境時;它只能通過使用器具來訪問，因為它包含容易被靜電放電損壞的組件。其接觸靜電放電為4kv，空氣靜電放電為8kv。

本裝置的隔離電壓約為交流有效值1500伏;它有四組8個輸出，總共有32個輸出，輸出電壓范圍在10到30伏之間;其輸出電流額定值為每輸出0.5 A，其最大背板電流為330 mA，直流電壓為5伏，其隔離電壓已測試60秒，可承受高達500伏。

1771-OBN單元的最大“開”狀態電壓降為1.5伏，直流功率為0.5 a，而其“關”狀態下的最大泄漏電流為每輸出1ma。最大功耗約13.7瓦，最小功耗約1.7瓦，最大散熱為46.7 BTU /小時，最小散熱為5.7 BTU /小時。

該裝置可以在-40至185華氏度(-40至85攝氏度)的任何溫度下存儲，并在32至140華氏度(0至60攝氏度)的溫度下運行。它可以承受約5%至95%的相對濕度，不凝結，并有四個保險絲4.0 a, 250伏的正常熔斷器(每組1個)。

1771-OBN 數字直流輸出模塊

This digital DC Output Module, 1771-OBN, by Allen Bradley, is supplied as open-type equipment, not intended for an industrial environment greater than Pollution 2 when applied in a Zone 2 environment; it should only be accessible by using the appliance, as it contains components that are susceptible to damage by electrostatic discharge. Its electrostatic discharge is 4 kV on contact and 8 kV through the air.

The isolation voltage of this unit is around 1500 Volts of AC RMS; it comes with four groups of eight outputs, making a total of thirty-two (32) outputs with an output voltage range between 10 and 30 Volts of DC power; its output current rating is 0.5 A per output, its maximum backplane current is330 mA at 5 Volts of DC, and its isolation voltage has been tested for sixty seconds to withstand up to 500 Volts.

The 1771-OBN unit has a maximum “ON” state voltage drop of 1.5 Volts of DC power at 0.5 A, while its maximum leakage current during its “OFF” state is 1 mA per output. It dissipates about 13.7 Watts maximum and 1.7 Watts minimum of power, and its Thermal dissipation is 46.7 BTU per hour at maximum and 5.7 BTU per hour at its minimum.

This unit can be stored at any temperature between -40 and 185 degrees Fahrenheit (-40 to 85 degrees Celsius), and operates at temperatures between 32 and 140 degrees Fahrenheit (0 and 60 degrees Celsius). It can withstand a relative humidity of around 5 to 95%, without condensing, and has four fuses of 4.0 A, 250 Volts normal blow fuses (1 per group).
