描述

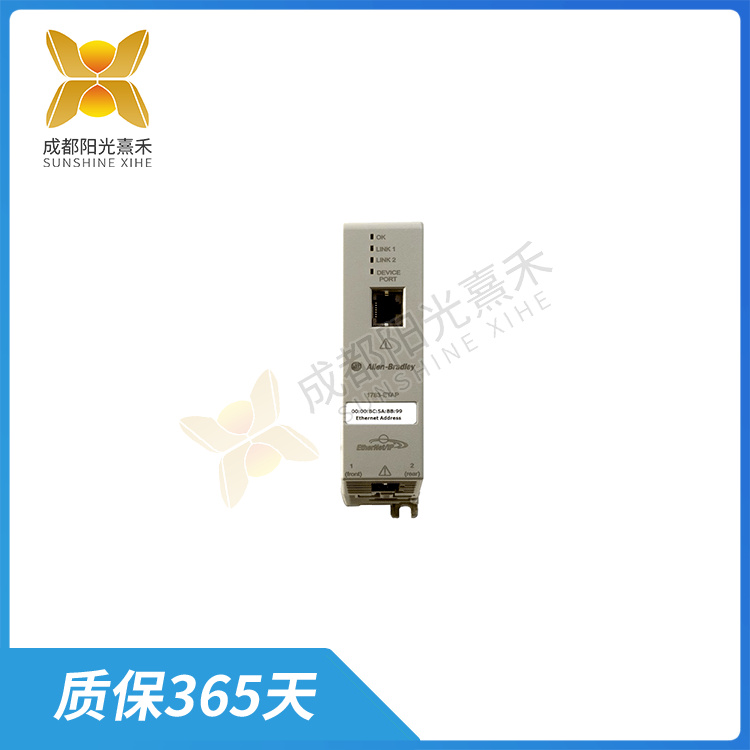

1783-ETAP 以太網/IP網絡端口模塊

1783-ETAP?是羅克韋爾自動化（Rockwell Automation）公司 Allen-Bradley 系列中的一個以太網/IP網絡端口模塊。這個模塊是一種嵌入式交換機，專為以太網/IP網絡設計，允許設備通過線性網絡交換機相互連接和通信。

以下是關于 1783-ETAP 的主要特點和功能：

1. 以太網/IP技術：該模塊使用以太網/IP技術，這是一種廣泛使用的工業自動化通信協議。它允許設備在網絡上進行高速、可靠的數據傳輸。
2. 線性網絡連接：1783-ETAP 提供了一個或多個以太網/IP網絡端口，允許設備連接到線性網絡。通過這些端口，設備可以相互通信，實現數據共享和控制功能。
3. 設備兼容性：該模塊允許用戶將與交換機技術不兼容的設備連接到線性網絡。這為用戶提供了更大的靈活性，可以方便地?cái)U(kuò)展和更新他們的自動化系統。
4. 編程功能：在某些應用中，用戶可能需要對模塊進行編程以滿足特定的需求。1783-ETAP 支持這種編程功能，使用戶可以根據其應用需求對模塊進行定制。

應用領域

1783-ETAP 模塊廣泛應用于工業自動化和控制系統領域，特別是那些需要高速、可靠的數據傳輸和通信的應用。它可以作為網絡基礎設施的一部分，支持各種工業設備和系統的連接和通信。

注意事項

在選擇和使用 1783-ETAP 模塊時，建議仔細閱讀制造商提供的技術文檔和用戶手冊，以確保正確配置和滿足特定的應用需求。此外，與專業的工業自動化工程師或系統集成商合作也是確保系統性能和可靠性的重要步驟。需要注意的是，具體的模塊功能和規格可能因制造商的更新和升級而有所變化，因此在實際應用中需以最新的技術文檔為準。

1783-ETAP 以太網/IP網絡端口模塊

The 1783-BMS10CGL is a processor module in the Allen-Bradley family of Rockwell Automation. The module is a control input/output module designed to act as a communication adapter on Ethernet/IP networks to provide communication functions for distributed input/output modules.

The following are the main features and functions of the 1783-BMS10CGL:

Communication function: On Ethernet/IP networks, the module acts as a communication adapter, allowing distributed input/output modules to communicate with other devices.
Input/output control: The module has a control input/output function, which can receive and process the input signal from the sensor, and control the output signal of the actuator.
The 1783-BMS10CGL also has the ability to bridge Ethernet/IP connections to route information to devices on other networks.
Communication rate: The communication rate of the module is up to 10/100MB.
Connection capability: Each communication card supports 32 connections, up to 4000 messages.
Power consumption: Under normal operating conditions, the power consumption of the module is 2.4W.
Digital output: The module has 8 point source type DC 24V output with electronic fusing function. The maximum output current per point is 2A, and the maximum current per module is 10A.
Application field
The 1783-BMS10CGL module is widely used in industrial automation and control systems, such as manufacturing, energy management, transportation, etc. It can be used as a part of the distributed input and output system to communicate and exchange data with other devices to achieve automatic control and monitoring.

Matters needing attention
When selecting and using the 1783-BMS10CGL module, it is recommended to carefully read the technical documentation and user manual provided by the manufacturer to ensure the correct configuration and to meet the specific application requirements. In addition, working with a professional industrial automation engineer or system integrator is also an important step to ensure system performance and reliability. It should be noted that the specific module functions and specifications may change due to the manufacturer’s updates and upgrades, so the latest technical documentation should prevail in practical application.
