描述

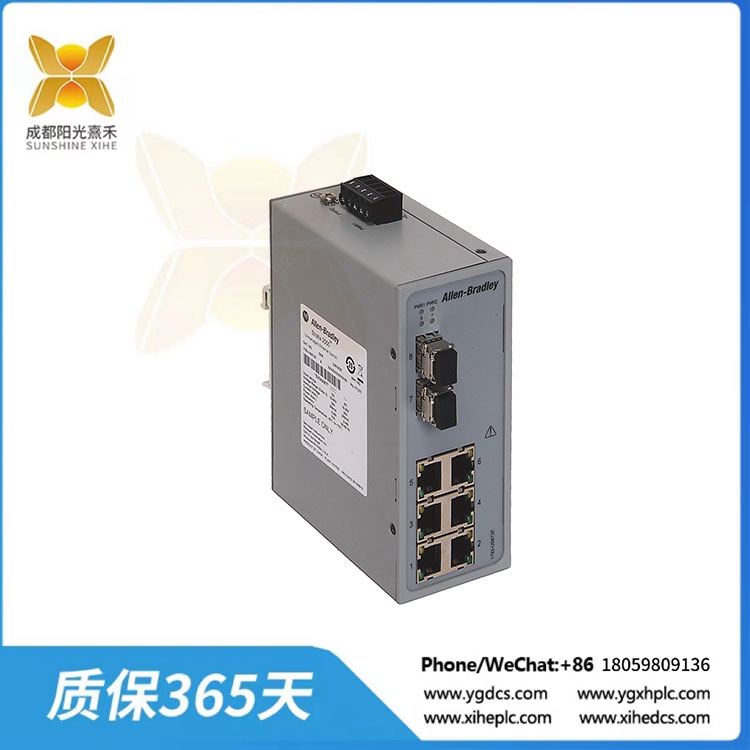

1783-US6T2TGH2H 端口未管理交換機

Allen-Bradley 1783-US6T2TG2H是Stratix 2000以太網非管理型交換機。它共有10個可用端口，6個快速以太網+ 2個千兆以太網RJ45端口和2個快速以太網單模預安裝光纖SFP模塊SFP端口。請注意，如果您想與交換機一起使用，則需要單獨購買SFP模塊。它的廣播風暴閾值，特別是在每秒數據包方面，是128 pps (10/100/1000 Mbps)。該交換機帶有綠色/黃色狀態指示燈，可以查看其電源狀態、端口速度狀態和網絡狀態。注意:1783-US6T2TG2H交換機為開式機箱。接地時，應選用2.5 mm2 (14awg)的銅線，該銅線適用于機箱外溫度高于環境溫度187 ??F，并配合適的環接端子。直流供電時，線纜尺寸為4-0.25 mm2 (12- 24awg)雙絞線銅線，適用于機箱外環境溫度187 ??F以上。

本系列B電源輸入為24V (DC 12 ~ 48v, AC 18 ~ 30v, Hz 50 ~ 60hz)，最大功耗7.5 W，最大浪涌電流1.83 a。1783-US6T2TG2H的額定直流電流為450 mA，交流電流為900 mA，而其最大直流電流為850 mA，交流電流為1700 mA。

其工作溫度為-40-167 ??F，其最高環境溫度為167 ??F，其周圍最高空氣溫度為167 ??F，其儲存溫度為-40-185 ??F。該開關的非冷凝相對濕度為5-95%。1783-US6T2TG2H在10- 500hz時的工作振動為2g，工作沖擊為15g，非工作沖擊為30g。

1783-US6T2TGH2H 端口未管理交換機

The Allen-Bradley 1783-US6T2TG2H is a Stratix 2000 Ethernet unmanaged switch. It has a total of 10 ports available, with 6 fast Ethernet + 2 Gigabit Ethernet RJ45 ports and 2 fast Ethernet single-mode preinstalled fiber SFP modules SFP ports. Note that you need to buy the SFP modules separately if you want to use them with your switch. Its broadcast storm threshold, particularly in terms of packets per second, is 128 pps for 10/100/1000 Mbps. This switch comes with green/yellow status indicators that allow you to see its power supply status, port speed status, and network status. Note that the 1783-US6T2TG2H switch has an open-type enclosure. When using a ground connection, the wire should be 2.5 mm2 (14 AWG) copper wire that is suitable for 187 ??F above the surrounding temperature outside the enclosure when used with a suitable ring terminal. For a DC power connection, the required wire size is 4-0.25 mm2 (12-24 AWG) twisted-pair copper wire that is also suitable for 187 ??F above surrounding ambient temperature outside the enclosure.

This Series B switch has a power input of 24V (12-48V DC, 18-30V AC, 50-60 Hz), a maximum power consumption of 7.5 W, and a maximum inrush current of 1.83 A. The 1783-US6T2TG2H’s nominal currents are 450 mA for DC and 900 mA for AC, while its maximum currents are 850 mA for DC and 1700 mA for AC.

Its operating temperature is from -40-167 ??F, its?maximum ambient temperature is 167 ??F, its maximum surrounding air temperature is 167 ??F, and its storage temperature is -40-185 ??F. This switch has a non-condensing relative humidity of 5-95%. the 1783-US6T2TG2H also has an operating vibration of 2 g at 10-500 Hz, an operating shock of 15 g, and a non-operating shock of 30 g.
