描述

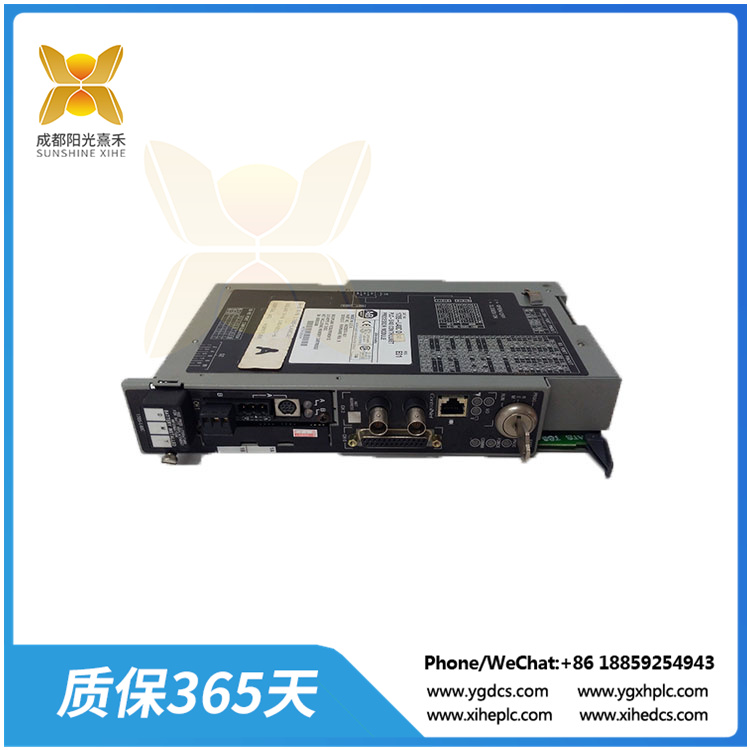

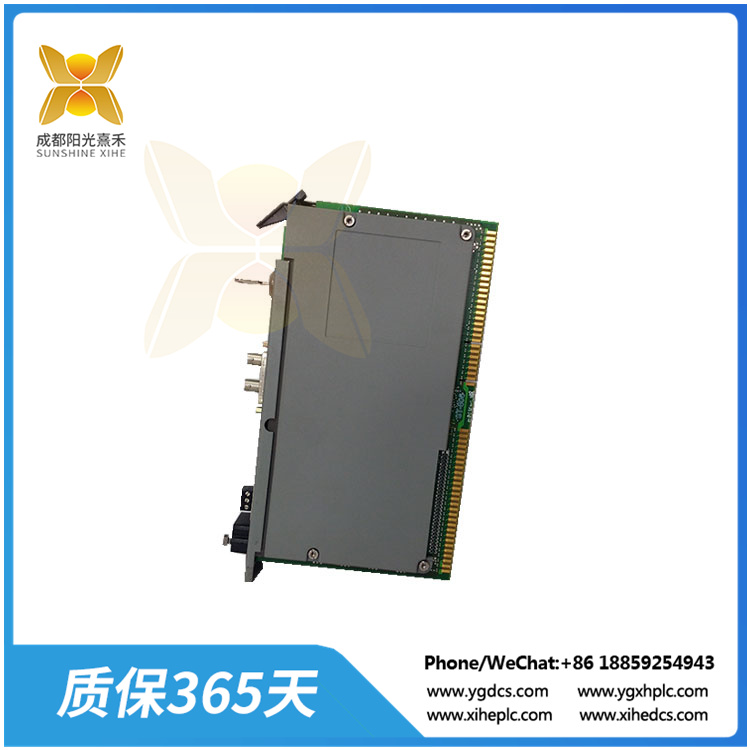

1785-L40C ControlNet處理器模塊

描述:1785-L40C處理器模塊是由Allen-Bradley設計和制造的ControlNet處理器模塊。它是可通過PLC 5系列控制系統(tǒng)組成的。1785-L40C ControlNet處理器模塊有48K的SRAM，由電池供電。它的I/O容量是2048個總I/O或2048個輸入和2048個輸出，它們排列在一個互補的設置中。1785-L40C ControlNet處理器模塊在工作期間在5伏直流電壓下消耗3.3安培的背板。

1785-L40C PLC-5/40C是Allen-Bradley控制器，具有控制網絡能力，48kb Word SRAM處理器和控制網絡能力，安裝在1771 I/O機箱的I/O插槽上，用于控制現場設備的輸出和輸入。處理器的最大用戶內存字為48KB，最大I/O容量為2048(2048輸入和2048輸出互補)，最大程序掃描時間為每k字0.5ms(以位邏輯測量)，掃描時間為每k字2ms(典型)?？刂破髟?V DC時消耗背板電流3.3A，工作時最大散熱59 BTU/h。控制器支持1785-CHBM ControlNet熱備份盒，用于系統(tǒng)的熱備份，支持1771、1794、1746、1791 8點、16點、32點模塊和智能I/O模塊。控制器有一個基本配置的RJ45連接器控制網絡訪問端口，具有每秒5mb的I/O傳輸速率，并且具有用戶可選擇的2-100ms的網絡更新時間，和一個協處理器端口。

該控制器還配備了一個用于編程的8針mini-DIN連接器和一個3針默認DH+端口，它還具有一個25針D-shell串行端口，可選擇的傳輸速率范圍在57.6K bit/s和20.3 k bit/s之間，可選擇的掃描端口時間在每機架57.6K bit/s和每機架230K bit/s的10ms之間。1785-L40C的最大散熱為59 BTU/小時，可在溫度0-60℃(32-140 oF)，非冷凝相對濕度5-95%的情況下運行而不退化，控制器可在-40-85℃(-40-185 oF)下存儲。1785-L40C可以承受30G的操作沖擊，在10-500Hz下具有1G的振動，并且它具有開放式外殼。它重約1.42公斤(3磅)，并通過了UL, CE, CSA和c – tick認證。

1785-L40C ControlNet處理器模塊

Description: The 1785-L40C processor module is a ControlNet processor module that has been designed and manufactured by Allen-Bradley. It is available through the PLC 5 series of control system components. The 1785-L40C ControlNet processor module has 48K of SRAM that is battery-backed. Its I/O capacity is 2048 total I/O or 2048 inputs and 2048 outputs arranged in a complementary setup. The 1785-L40C ControlNet processor module draws 3.3 Amps of backplane at 5 Volts DC voltage during operation.

The 1785-L40C PLC-5/40C is an Allen-Bradley Controller with ControlNet Network Capability a 48-KB Word SRAM Processor and ControlNet capability installed on the I/O slot of the 1771 I/O Chassis, and it is used for controlling the outputs and inputs of field devices. The processor has 48KB of maximum user memory words, with a maximum I/O capacity of 2048 (with 2048 in and 2048 out complementary), and a maximum program scan time of 0.5ms per K-word measured in bit logic and the scan time is 2ms per K-word (typical). The controller draws 3.3A of backplane current at 5V DC, and its maximum heat dissipation is 59 BTU/hour when it is operational. The controller supports the 1785-CHBM ControlNet Hot Backup Cartridge, for use in a hot backup of the system, and it supports the 1771, 1794, 1746, and the 1791 8-point, 16-point, and 32-point modules, and the intelligent I/O modules. The controller has a base-configured RJ45 Connector ControlNet Network Access Port, with an I/O transmission rate of 5mb per second, and with a user selectable network update time of 2-100ms, and a Co-Processor port.

The controller also comes with an 8-pin mini-DIN connector for programming, and a 3-pin default DH+ port, and it also has a 25-pin D-shell Serial Port with selectable transmission rates that range between 57.6K bit/s and 230.4K bit/s, and a selectable scan port time between 10ms per rack at 57.6K bit/s and 3ms per rack at 230K bit/s. The 1785-L40C’s maximum thermal dissipation is 59 BTU/hour, and it is built for operation without de-rating at a temperature 0-60 oC (32-140 oF), at 5-95% noncondensing relative humidity, and the controller can be stored at –40-85 oC (–40-185 oF). The 1785-L40C can withstand a 30G operational shock, with a 1G vibration at 10-500Hz, and it has an open-style enclosure. It weighs about 1.42kg (3lbs), and it is UL, CE, CSA, and C-TICK-certified.
