描述

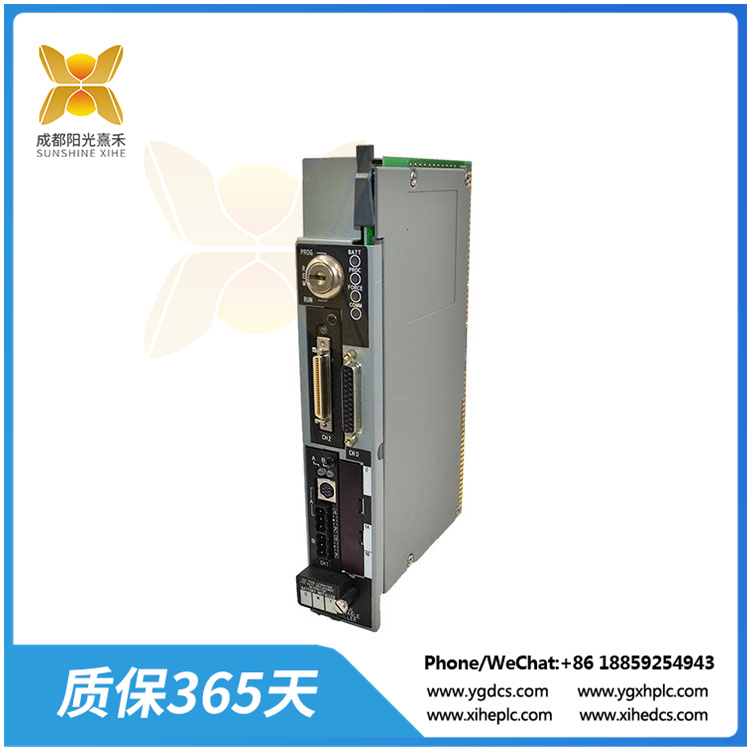

1785-L60LD 處理器

描述:艾倫-布拉德利1785-L60L處理器是艾倫-布拉德利的處理器和可編程控制器。它是作為Allen-Bradley PLC 5系列控制器的一部分設計和制造的。1785-L60L處理器和可編程控制器可以使用不同的內存模塊，如Allen-Bradley 1785-ME16, 1785-ME32, 1785-ME64和1785-M100內存模塊。它的最大用戶內存容量是64K字。1785-L60L處理器和可編程控制器可以在運行模式、遠程模式或程序模式下運行。

1785-L60L是PLC-5控制器系列的一員。這種可編程控制器可以作為基于艾倫-布拉德利PLC-5系列的任何控制系統的中心部分。1785-L60L是連接不同類型通信接口上的本地、擴展和遠程I/O模塊的中心點，是控制系統的骨干。1785-L60L控制器具有三個集成通信接口，標記為通道1A，通道1B和通道2。通道1A和通道1B可以用作遠程I/O掃描器、遠程I/O適配器或DH+通信接口。1785-L60L上的第三個通信接口，通道2，是一個擴展的本地I/O端口。1785-L60L控制器有一個25針連接器，在前面板上標記為通道0。通道0是光隔離的EIA RS232C端口，支持ASCII和DF1全雙工和半雙工主協議以及半雙工從協議。通道0有綠燈，指示通信接口的狀態。此外，還有一個標記為1A通道的8針迷你DIN連接器，這是一個與1A通道平行的DH+編程終端連接。前面板下部有兩個三針連接器。這些連接器用于通道1A和1B，這兩個通信端口可以用作遠程I/O掃描儀、遠程I/O適配器或DH+通信端口。在1785-L60L的前面板上，有一個特殊的連接器標記為通道2，這是一個擴展的本地I/O觸點。

Remote I/O Scanner Mode在控制器和遠端I/O設備之間讀寫I/O信息。當用作I/O掃描器時，1785-L60L是適配器模式下其他控制器和其他遠程I/O適配器的監控控制器。當通道1A或通道1B配置為遠程I/O適配器時，1785-L60L控制器管理駐留在控制器上的I/O，同時通過遠程I/O鏈路與控制器通信。在1785-L60L上，可以在1A或1B通道上配置DH+鏈路。DH+通信用于與其他PLC-5控制器或控制系統的其他高級組件創建點對點網絡。1785-L60L控制器的編程也可以通過DH+鏈接完成。通過使用DH+鏈接，可以同時對多個控制器進行編程。DH+鏈路的最大電纜長度取決于傳輸速率。將鏈路上的所有設備配置為以相同的速率通信是很重要的。長度從3048米(速度為57.6千比特/秒)到762米(速度為230.4千比特/秒)。當需要的I/O多于單個機箱所能容納的I/O時，擴展的本地I/O鏈路很有用，但它需要比遠程I/O鏈路提供的更快的速度。安裝在遠程I/O機箱中的1785-L60L和擴展本地I/O適配器(1771-ALX)與I/O鏈路電纜相互連接，形成擴展本地I/O鏈路。擴展的本地I/O鏈路限于100英尺的電纜。如果需要將I/O機框與控制器保持較遠的距離，請使用遠程I/O鏈路。擴展本地I/O鏈路為并行鏈路，使1785-L60L控制器最多可以掃描16個擴展I/O機箱。擴展本地I/O上每個機架的掃描時間為0.5 ms。1785-L60L前面板上有多個指示燈，方便用戶操作。指示燈顯示控制器的各種狀態。標有“BATT”的指示燈顯示電池狀態。PROC指示燈顯示當前控制器的工作模式。例如，當控制器處于RUN模式時為綠色，當出現問題時為紅色。啟用I/O強制時，FORCE指示燈呈琥珀色。COMM指示燈與Channel 0通信狀態相關聯。通信通道1A和1B都有專用的狀態指示燈。通道2，用于擴展本地I/O連接，有一個專用狀態指示燈。

1785-L60L可以在三種不同的模式下工作。模式選擇是通過控制器前面板上的三個位置鍵開關進行的。每個位置對應一個處理器模式。RUN模式運行控制器程序。在其中，可以啟用輸出，可以強制I/O，可以編輯數據表值，可以保存程序。但是，不能創建或刪除程序和數據文件。當1785-L60L處于編程模式時，輸出a

1785-L60LD 處理器

Description: The Allen-Bradley 1785-L60L processor is a processor and programmable controller from Allen-Bradley. It has been designed and manufactured as part of the Allen-Bradley PLC 5 series of controllers. The 1785-L60L processor and programmable controller can work with different memory modules like the Allen-Bradley 1785-ME16, 1785-ME32, 1785-ME64, and 1785-M100 memory modules. Its maximum user memory capacity is 64K words. The 1785-L60L processor and programmable controller can operate in the run mode, the remote mode, or the program mode.

The 1785-L60L is a member of the PLC-5 controller series. This programmable controller can function as a central part of any control system based on the Allen-Bradley PLC-5 series. The 1785-L60L is the central point that interconnects local, extended, and remote I/O modules on different types of communication interfaces, and which acts as the backbone of the control system. The 1785-L60L controller has three integrated communication interfaces marked as Channel 1A, Channel 1B, and Channel 2. Channel 1A and Channel 1B can function as remote I/O scanners, remote I/O adapters, or as DH+ communication interfaces. The third communication interface on the 1785-L60L, Channel 2, is an extended-local I/O port.?? The 1785-L60L controller has a 25-pin connector marked as Channel 0 on the front panel. Channel 0 is an optically-isolated EIA RS232C port, which supports ASCII and DF1 full-duplex and half-duplex master protocols as well as half-duplex slave protocols. Channel 0 has a green light for indicating the status of the communication interface. In addition, there is one 8-pin mini DIN connector marked as Channel 1A, which is a DH+ programming terminal connection parallel to Channel 1A. Two three-pin connectors are on a lower part of the front panel. These connectors are for Channels 1A and 1B, and these two communication ports can function as remote I/O scanners, remote I/O adapters, or as DH+ communication ports. On the 1785-L60L’s front panel, there is special connector marked as Channel 2, which is for an extended local I/O contact.

Remote I/O Scanner Mode reads and writes I/O information between the controller and the remote I/O device. When used as an I/O scanner, the 1785-L60L is a supervisory controller for the other controllers in Adapter Mode and for the other remote I/O adapters. When either Channel 1A or Channel 1B is configured as a remote I/O adapter, the 1785-L60L controller manages the controller-resident I/O while communicating with the supervisory controller through a remote I/O link. A DH+ link can be configured on either Channel 1A or 1B on the 1785-L60L. DH+ communication is used for creating a peer-to-peer network with other PLC-5 controllers or other higher-level components of the control system. Programming of the 1785-L60L controller can be also done via a DH+ link. By using a DH+ link, multiple controllers can be programmed at the same time. The maximum cable length for a DH+ link depends on the transmission rate. It is important that all devices on the link are configured to communicate at the same rate. That length ranges from 3048m from a speed of 57.6 kilobits per second to 762m for a speed of 230.4 kilobits per second. An extended local I/O link is useful when more I/O than what can fit in single chassis is necessary, but it requires greater speed than a remote I/O link can provide. The 1785-L60L and extended local I/O adapter (the 1771-ALX) installed in the remote I/O chassis interconnected with the I/O link cable form an extended-local I/O link. The extended local I/O link is limited to 100 feet of cable. If the I/O chassis needs to be further from the controller, use the remote I/O link. The extended local I/O link is a parallel link that enables the 1785-L60L controller to scan a maximum of 16 extended I/O chassis. Scan time per rack on an extended – local I/O is 0.5 ms.? The 1785-L60L has several indicators on the front panel to make user interface easy. The indicators display various controller statuses. The indicator marked BATT displays the battery status. The PROC indicator shows the current controller mode. For example, it is green when the controller is in RUN Mode, and red when something is wrong. The FORCE indicator is amber when the I/O forces are enabled. The COMM indicator is linked to the Channel 0 communication status. Communication Channels 1A and 1B both have dedicated status indicators. Channel 2, used for extended – local I/O connection, has a dedicated status indicator.

The 1785-L60L can work in three different modes. Mode selection is made via a three-position key-switch on the front plate of the controller. Each position corresponds to one processor mode. RUN Mode runs the controller program. In it, outputs are enabled, I/O can be forced, data table values can be edited, and programs can be saved. However, program and data files cannot be created or deleted. When the 1785-L60L is in Program Mode, the outputs a
