1794-ACN15 Flex ControlNet適配器

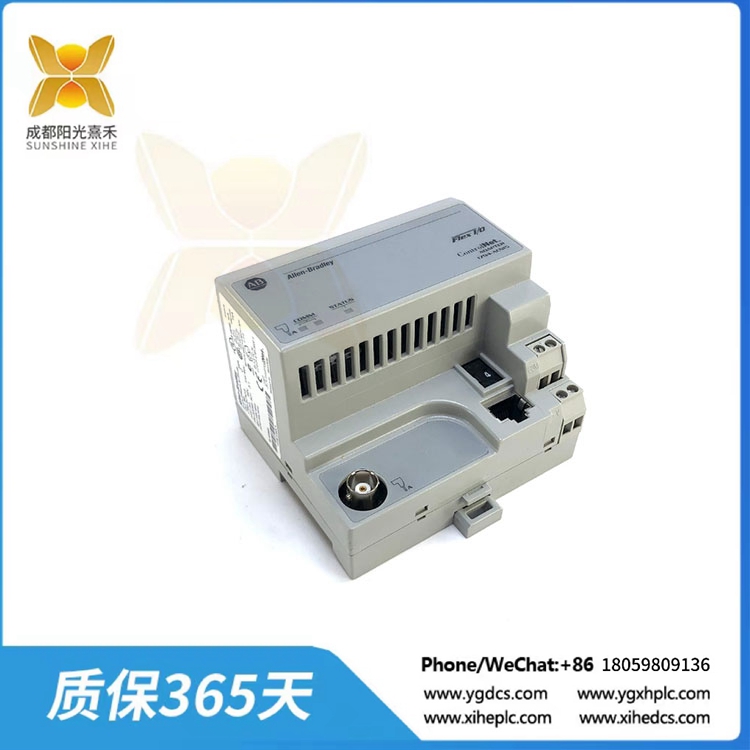

Allen-Bradley 1794-ACN15是一個Flex I/O通信適配器模塊。該模塊支持ControlNet通信，使Flex I/O模塊能夠通過ControlNet網絡傳輸和接收I/O數據，傳輸速率高達5mbps。

1794-ACN15帶有一個使用Belden RG-6/U的單一控制網端口。該模塊不僅可以實現ControlNet通信，還可以將來自Flex I/O電源的輸入電源轉換為背板電源，由相鄰的Flex I/O模塊消耗，從而使它們能夠按照設計的功能運行。

1794-ACN15內置狀態指示燈，如I/O狀態-紅/綠;通道A -紅/綠，通道B -紅/綠。它的輸入電源電壓為19.2-31.2V DC, 400ma，輸出到母線的電壓和電流為5V DC, 640ma。它能夠承受14 A的浪涌電流2毫秒。

1794-ACN15的隔離電壓為50V(連續)，基本絕緣型;型式測試@ 860V交流60秒，電源到系統，電源到控制網，和控制網到系統控制網通道之間無隔離。功耗為3.4 W @ 19.2V DC。當終止電壓供應到1794-ACN15時，與該模塊一起使用的推薦電線是:0.33…2.5 mm2 (22AWG)實心或絞合銅線額定75°C(167°F)或更高1.2 mm(3/ 64英寸)絕緣最大單線連接和0.33…1.3 mm2 (22AWG)實心或絞合(非混合)銅線，額定75°C(167°F)或更高1.2 mm(3/64英寸)，最大絕緣雙線連接。

一個適配器可以與多達8個I/O模塊一起工作，這些模塊的通信速度高達5 Mbps。1794-ACN15在直流19.2伏時最大功耗為3.4瓦，直流19.2伏時最大散熱15.7 BTU/小時。它的浪涌電流為23安培，持續2毫秒，最大電流為450毫安，或在24伏直流電流下330毫安。1794-ACN15在接地機箱上安裝了DIN導軌，以便進行適當?shù)慕拥?，用戶可以使用開式設計的鍍鋅黃鉻酸鋼DIN導軌。它是歐洲2區和北美危險地點批準的，它的防護等級為IP20，以防止傷害和對用戶和機器的損壞，它應該安裝在一個適合特定環境的外殼中。該設備的額定溫度在-25到55攝氏度之間，其電源線長度不得超過32.8英尺(10米)。它的總尺寸為3.6 x 3.7 x 3.44英寸(87 x 94 x 69毫米)，重達0.3磅(0.136公斤)。1794-ACN15有以下指示燈:I/O狀態指示燈-紅/綠、Comm A指示燈-紅/綠、Comm B指示燈-紅/綠。

1794-ACN15 Flex ControlNet適配器

The Allen-Bradley 1794-ACN15 is a Flex I/O communication adapter module. This module supports ControlNet communication, enabling Flex I/O modules to transfer and receive I/O data over ControlNet network with transmission rate of up to 5 Mbps.

The 1794-ACN15 comes with a single ControlNet port that uses the Belden RG-6/U. Not only that this module enable ControlNet communication, it also converts incoming power from the Flex I/O power supply to backplane power which is consumed by the adjacent Flex I/O modules to allow them to operate according to their designed function.

The 1794-ACN15 has built-in status indicators such as I/O Status – red/green; Comm A – red/green and Comm B – red/green. It has an input supply voltage of 19.2-31.2V DC, 400 mA and output voltage and current to the bus of 5V DC, 640 mA. It is able to withstand an inrush current of 14 A for 2 ms.

The 1794-ACN15 has an isolation voltage of 50V (continuous), Basic Insulation Type; Type tested @ 860V AC for 60 s, power to system, power to ControlNet, and ControlNet to system No isolation between ControlNet channels. It has a power dissipation of 3.4 W @ 19.2V DC. When terminating voltage supply to the 1794-ACN15, recommended wires for use with this module are: 0.33… 2.5 mm2 (22…12 AWG) solid or stranded copper wire rated at 75 °C (167 °F) or greater 1.2 mm (3/ 64 in.) insulation max for single wire connection and 0.33… 1.3 mm2 (22…16 AWG) solid or stranded (not intermixed) copper wire rated at 75 °C (167 °F) or greater 1.2 mm (3/64 in.) insulation max for double wire connection.

One adapter can function with up to 8 I/O modules, which have communication speeds of up to 5 Mbps. The maximum power dissipation of the 1794-ACN15 is 3.4 Watts at 19.2 Volts DC, with a thermal dissipation of 15.7 BTU/hour maximum at 19.2 Volts DC. Its inrush current is 23 Amps for 2 milliseconds with a current draw of 450 mA maximum or 330 mA at 24 Volts DC. The 1794-ACN15 is mounted with a DIN rail to the ground chassis for proper grounding, and the users can use a zinc-plated yellow-chromate steel DIN rail with an open-type design. It is European Zone 2 and North American Hazardous Location-approved, it has a protection rating of IP20 to prevent injuries and to the users and damage to the machine, and it should be mounted in an enclosure that is suitable for a specific environment. The equipment’s temperature rating runs between -25 and 55 degrees Celsius, and its power wiring must not exceed 32.8 feet (10 meters) in length. Its total size is 3.6 x 3.7 x 3.44 inches (87 x 94 x 69 millimeters) and it weighs up to 0.3 pounds (0.136 kilograms). The 1794-ACN15 has the following indicators: I/O status – red/green, Comm A – red/green, and Comm B – red/green.
