描述

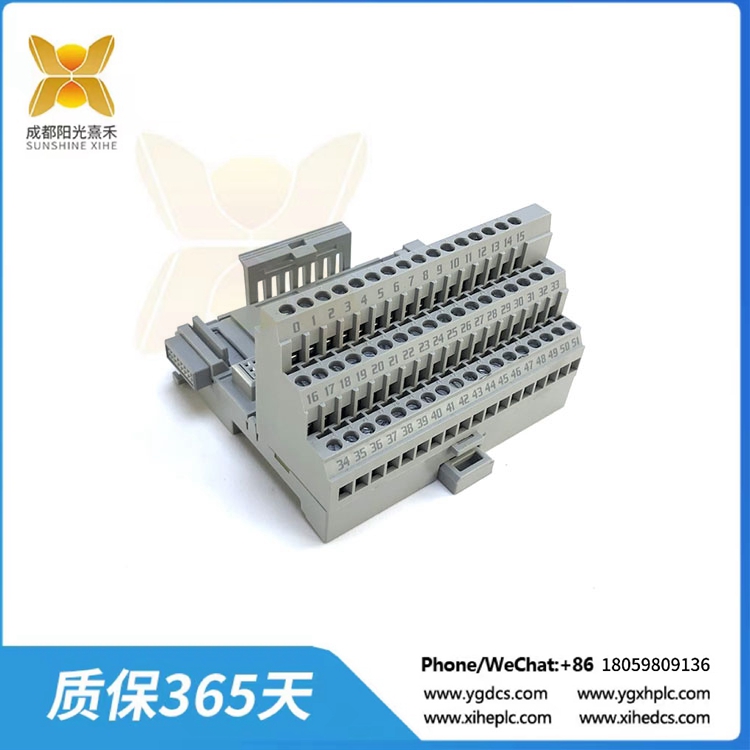

1794-TB32 Flex端子座

Allen Bradley的1794-TB32 Flex I/O 24伏特交流/直流終端基礎單元是專為32點模塊設計的終端基礎單元，為輸入/輸出布線提供連接點。它具有32 I/O最大連接容量，具有8個通用端子和8個電壓端子，并用于31.2伏直流應用。它的電流容量為10 a, FLEXBUS額定電壓為640 mA和5伏直流，最大I/O終端額定值為2 a, V/COM終端額定值為31.2伏DC/AC，頻率為50至60赫茲。它能夠在現場接線端子到FLEXBUS之間提供50伏電路隔離，基本型絕緣在2121伏直流下測試1分鐘。

1794-TB32具有IEC T4和T4A(北美)溫度代碼，并配有開放式外殼。它的工作溫度范圍在-20和70攝氏度(-4和58華氏度)，在5%到95%的非冷凝濕度水平下，儲存在-40到85攝氏度(-40到185華氏度)。1794-TB32經過測試，在5g操作振動和30g沖擊額定值下保持在標準規格內的性能。它的尺寸約為94 x 94 x 69毫米(3.7 x 3.7 x 2.7英寸)，安裝了模塊，并通過了c-UL-us和CSA認證。

1794-TB32 Flex端子座

The 1794-TB32 Flex I/O 24 Volt AC/DC Terminal Base Unit by Allen Bradley is a terminal base unit designed specifically for 32 point modules to provide connection points for input/output wiring. It has a 32 I/O maximum connection capacity, with 8 common terminals and 8 Voltage terminals, and is used in a 31.2 Volt DC application. It has a current capacity of 10 A, and a FLEXBUS rating of 640 mA and 5 Volts DC, with 2 A maximum I/O terminal rating, and a V/COM terminal rating of 31.2 Volts DC/AC at 50 to 60 Hertz. It is capable of providing 50 Volts circuit isolation with Basic Type insulation tested at 2121 Volts DC for 1 minute between Field-Wiring Terminals to FLEXBUS.

The 1794-TB32 has both IEC T4 and T4A (North America) temperature codes and comes with an open style enclosure. It has an operational temperature range within -20 and 70 degrees Celsius (-4 and 58 degrees Fahrenheit) in a 5% to 95% non-condensing humidity level, and is stored at -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). The 1794-TB32 is tested to maintain performance within standard specification at a 5 G operational vibration and a 30 G shock rating. It has approximate dimensions of 94 x 94 x 69 millimeters (3.7 x 3.7 x 2.7 inches) with the module installed on it and is c-UL-us and CSA certified.
