描述

1C31194G01 液體為環境溫度下的水，遵守適當?shù)纳嫌魏拖掠尉嚯x，傳感器插入適當深度

產品介紹

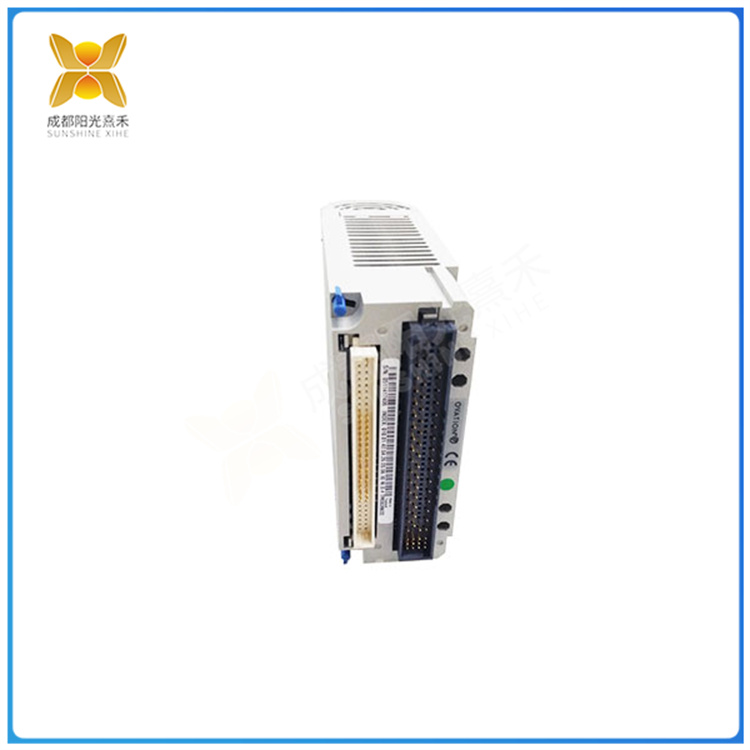

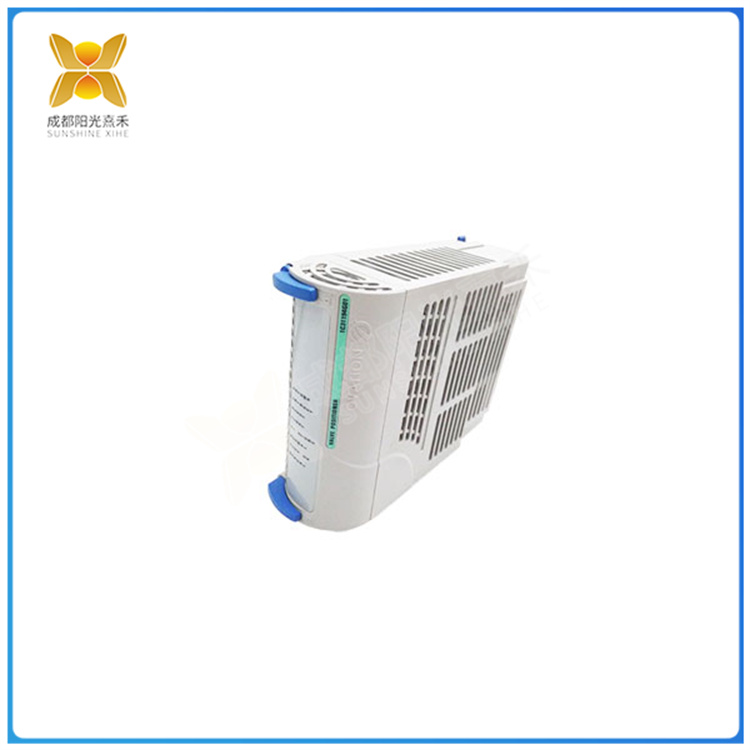

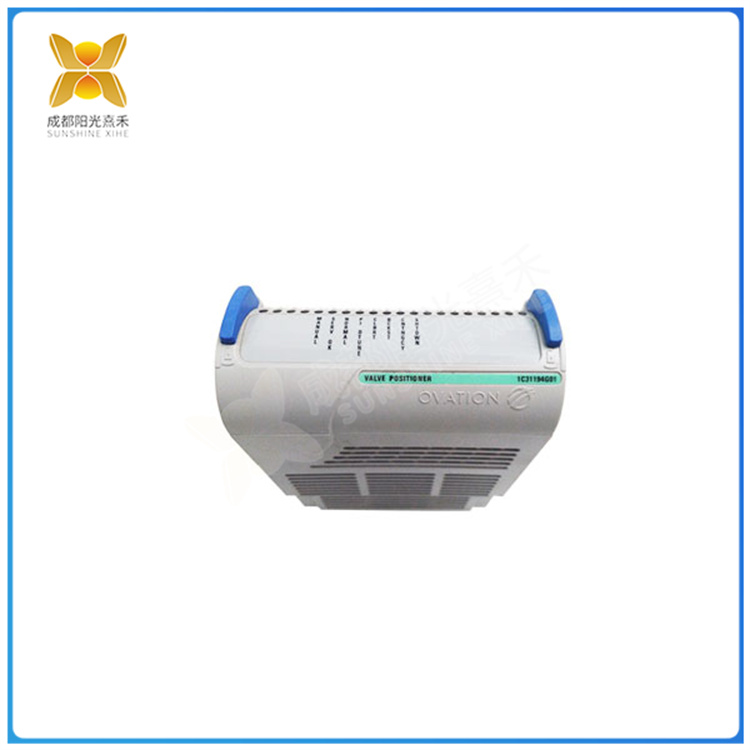

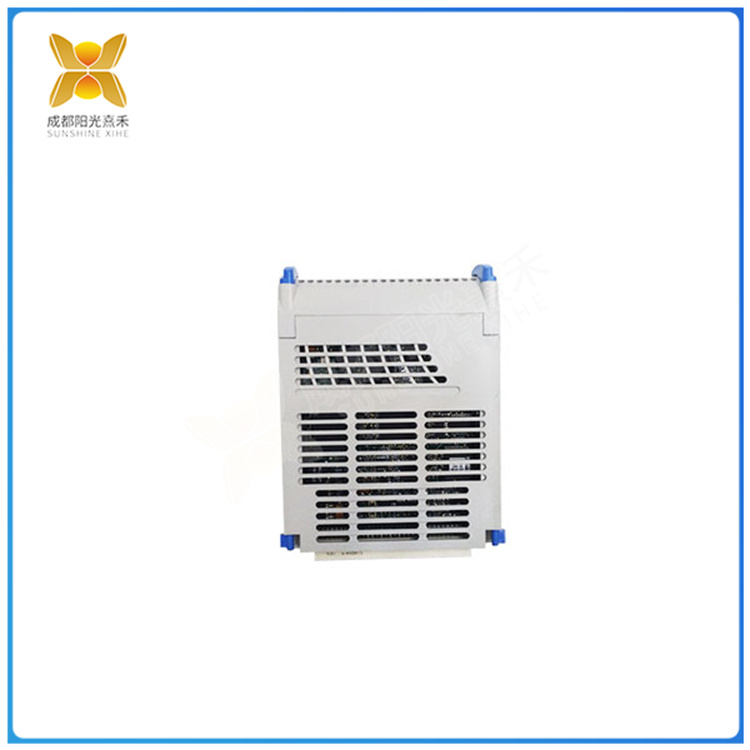

型號名稱: 1C31194G01
基準條件為:液體為環境溫度下的水，遵守適當?shù)纳嫌魏拖掠尉嚯x，傳感器插入適當深度，并且建了符合ISO 7145-1982 (BS 1042，第2.2章) 的完整流量剖面
電流輸出: 4~ 20 mA，可編程目可反轉，環路精度: 誤差32 ?A(25?C @
24 Vdc時)
溫度漂移:每?C +1 ?A (值)
電源抑制: 每V+1 A
絕緣: 低電壓，電極和輔助電源之間小于48 Vac/dc
最長電纜長度: 300 m(1000′)
環路電阻: 300 ?誤差條件: 22.1 mA
頻率輸出
上拉電壓: 30 Vdc
短路保護: <30 V @ 0?(上拉1小時)
40 V反向極性保護 (1小時) ，40 V過電壓保護 (1小時)灌電流: 50 mA，限流
溫度/壓力等級
儲存溫度: 在未結冰條件下為-15 ~ 70?C(5 ~ 158?F)工作溫度環境: 在未結冰條件下為-15 ~ 70?C(5 158?F)個質: -15~ 85?C(5- 185?F)
工作壓力: 20.7 bar @ 25?C (300 psi @ 77?F)

Hot-Tap安裝要求:

安裝壓力: 20.7 bar(300 psi)安裝溫度: 40?C(104?F)，如溫度高于40?C(104?F)或液體為危險液體，則不允許對本產品進行Hot-tap安裝連接器: NEMA 6P(IP68)控制設備的抗干擾和輻射標準

1C31194G01 液體為環境溫度下的水，遵守適當?shù)纳嫌魏拖掠尉嚯x，傳感器插入適當深度

Product introduction
Model name: 1C31194G01
The baseline conditions are that the liquid is water at ambient temperature, appropriate upstream and downstream distances are observed, the sensor is inserted at appropriate depth, and a complete flow profile is built in accordance with ISO 7145-1982 (BS 1042, Chapter 2.2)
Current output: 4~ 20 mA, programmable eye can be reversed, loop accuracy: error 32? A(25? C @
24 Vdc hours)
Temperature drift: per? C +1 ? A (value)
Power suppression: +1 A per V
Insulation: Low voltage, less than 48 Vac/dc between electrode and auxiliary power supply
Maximum cable length: 300 m(1000′)
Loop resistance: 300? Error condition: 22.1 mA
Frequency output
Pull-up voltage: 30 Vdc
Short circuit protection: <30 V @ 0? (Pull up 1 hour)
40 V reverse polarity protection (1 hour), 40 V overvoltage protection (1 hour) Perfusion current: 50 mA, current limiting
Temperature/pressure rating
Storage temperature: -15 ~ 70 under non-freezing conditions. C(5 ~ 158? F) Working temperature environment: -15 ~ 70 under non-icing conditions? C(5 158? F) Individual quality: -15~ 85? C(5- 185? F)
Working pressure: 20.7bar@25? C (300 psi @ 77? F)

Hot-Tap Installation requirements:

Installation pressure: 20.7 bar(300 psi) Installation temperature: 40? C(104? F) if the temperature is above 40? C(104? F) or if the liquid is hazardous, Hot-tap installation connectors for this product are not permitted: NEMA 6P(IP68) control equipment for anti-interference and radiation standards
