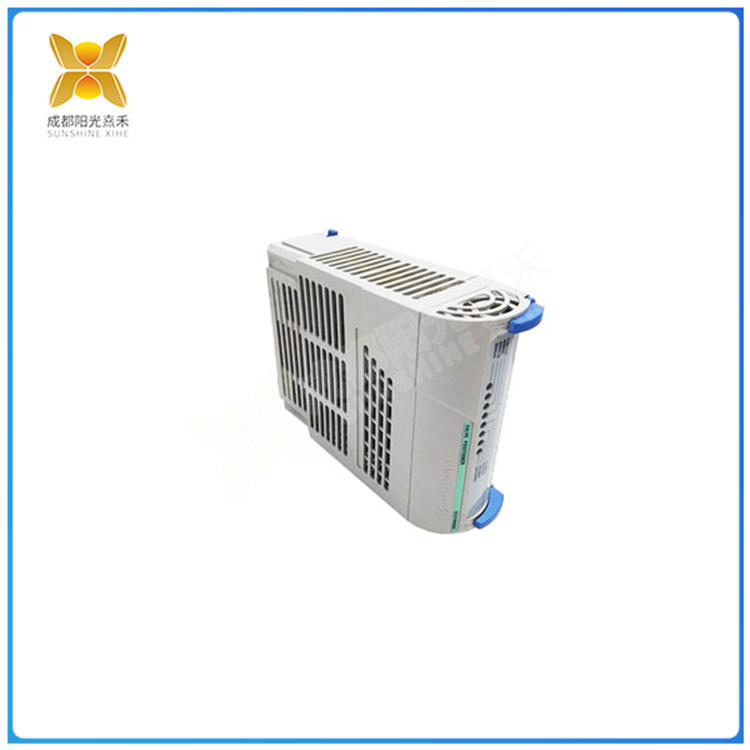

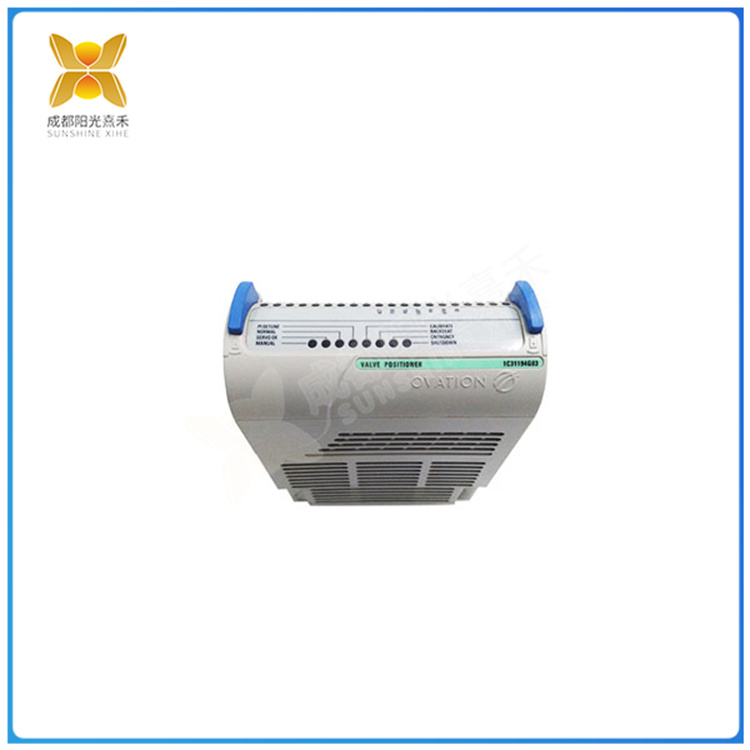

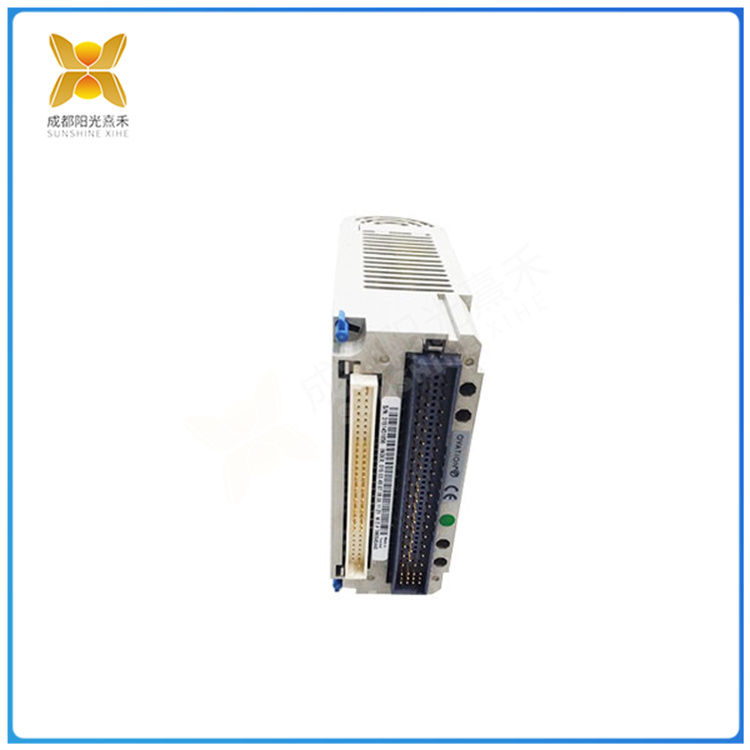

1C31194G03 空間的輻射電磁場（EMI）主要是由電力網絡

空間的輻射電磁場（EMI）主要是由電力網絡、電氣設備的暫態過程、雷電、無線電廣播、電視、雷達、高頻感應加熱設備等產生的，通常稱為輻射干擾，其分布極為復雜。若PLC系統置于所射頻場內，就回收到輻射干擾，其影響主要通過兩條路徑：一是直接對PLC內部的輻射，由電路感應產生干擾；而是對PLC通信內網絡的輻射，由通信線路的感應引入干擾。輻射干擾與現場設備布置及設備所產生的電磁場大小，特別是頻率有關，一般通過設置屏蔽電纜和PLC局部屏蔽及高壓泄放元件進行保護。

2.2.2來自系統外引線的干擾

　　主要通過電源和信號線引入，通常稱為傳導干擾。這種干擾在我國工業現場較嚴重。

　　（1）來自電源的干擾

　　實踐證明，因電源引入的干擾造成PLC控制系統故障的情況很多，筆者在某工程調試中遇到過，后更換隔離性能更高的PLC電源，問題才得到解決。

PLC系統的正常供電電源均由電網供電。由于電網覆蓋范圍廣，它將受到所有空間電磁干擾而在線路上感應電壓和電路。尤其是電網內部的變化，入開關操作浪涌、大型電力設備起停、交直流傳動裝置引起的諧波、電網短路暫態沖擊等，都通過輸電線路傳到電源原邊。PLC電源通常采用隔離電源，但其機構及制造工藝因素使其隔離性并不理想。實際上，由于分布參數特別是分布電容的存在，隔離是不可能的。

　?。?/span>2）來自信號線引入的干擾

　　與PLC控制系統連接的各類信號傳輸線，除了傳輸有效的各類信息之外，總會有外部干擾信號侵入。此干擾主要有兩種途徑：一是通過變送器供電電源或共用信號儀表的供電電源串入的電網干擾，這往往被忽視；二是信號線受空間電磁輻射感應的干擾，即信號線上的外部感應干擾，這是很嚴重的。由信號引入干擾會引起I/O信號工作異常和測量精度大大降低，嚴重時將引起元器件損傷。對于隔離性能差的系統，還將導致信號間互相干擾，引起共地系統總線回流，造成邏輯數據變化、誤動和死機。PLC控制系統因信號引入干擾造成I/O模件損壞數相當嚴重，由此引起系統故障的情況也很多。

1C31194G03 空間的輻射電磁場（EMI）主要是由電力網絡

The radiation electromagnetic field (EMI) in space is mainly generated by power networks, transient processes of electrical equipment, lightning, radio broadcasting, television, radar, high-frequency induction heating equipment, etc., usually called radiation interference, and its distribution is extremely complex. If the PLC system is placed in the RF field, the radiation interference is recovered, and its impact is mainly through two paths: one is the direct radiation inside the PLC, which is interfered by the circuit induction; It is the radiation to the network within the PLC communication, and interference is introduced by the induction of the communication line. Radiation interference is related to the field equipment layout and the size of the electromagnetic field generated by the equipment, especially the frequency, and is generally protected by setting shielded cables and PLC local shielding and high voltage release elements.

2.2.2 Interference from external leads of the system

It is mainly introduced through power and signal lines and is often referred to as conducted interference. This kind of interference is more serious in the industrial field of our country.

(1) Interference from the power supply

Practice has proved that the interference caused by the power supply caused a lot of PLC control system failure, the author encountered in a project debugging, after replacing the PLC power supply with higher isolation performance, the problem was solved.

The normal power supply of the PLC system is powered by the power grid. Due to the wide coverage of the grid, it will be subject to all space electromagnetic interference and induced voltage and circuit on the line. In particular, the changes in the power grid, the incoming switch operation surge, the start and stop of large power equipment, the harmonics caused by AC and DC transmission devices, the short-circuit transient impact of the power grid, etc., are transmitted to the original side of the power supply through the transmission line. PLC power supply usually uses isolated power supply, but its mechanism and manufacturing process factors make its isolation is not ideal. In practice, isolation is impossible due to the presence of distributed parameters, especially distributed capacitors.

(2) Interference introduced from signal lines

All kinds of signal transmission lines connected with the PLC control system, in addition to the effective transmission of all kinds of information, there will always be external interference signal intrusion. There are two main ways of this interference: one is through the transmitter power supply or the power supply of the shared signal instrument into the grid interference, which is often ignored; Second, the signal line is interfered by electromagnetic radiation induction in space, that is, the external induction interference on the signal line, which is very serious. The interference introduced by the signal will cause the abnormal work of the I/O signal and the measurement accuracy will be greatly reduced, and the components will be damaged in serious cases. For the system with poor isolation performance, the signals will interfere with each other, causing the bus backflow of the common ground system, resulting in logical data changes, misoperation and crash. PLC control system due to signal interference caused by I/O module damage is quite serious, resulting in a lot of system failures.
