描述

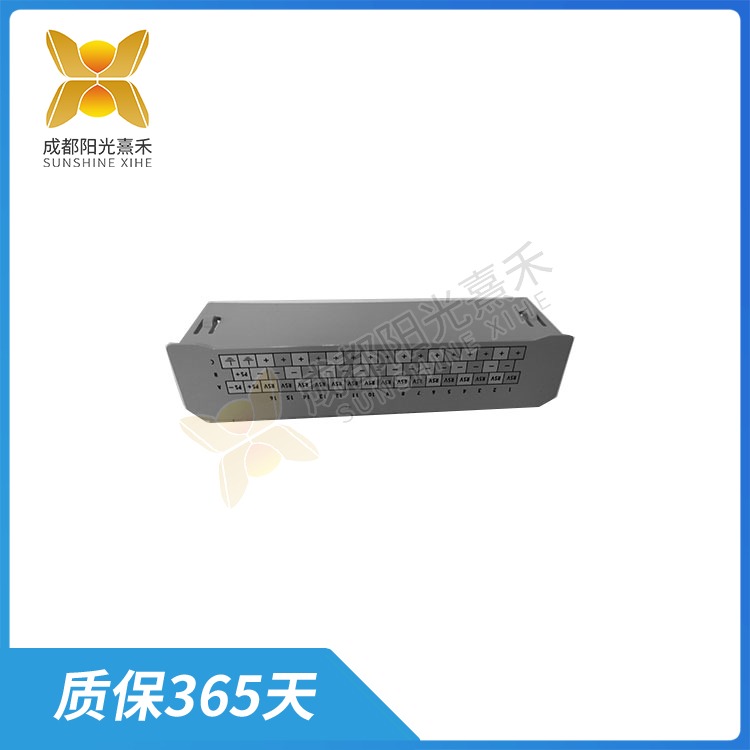

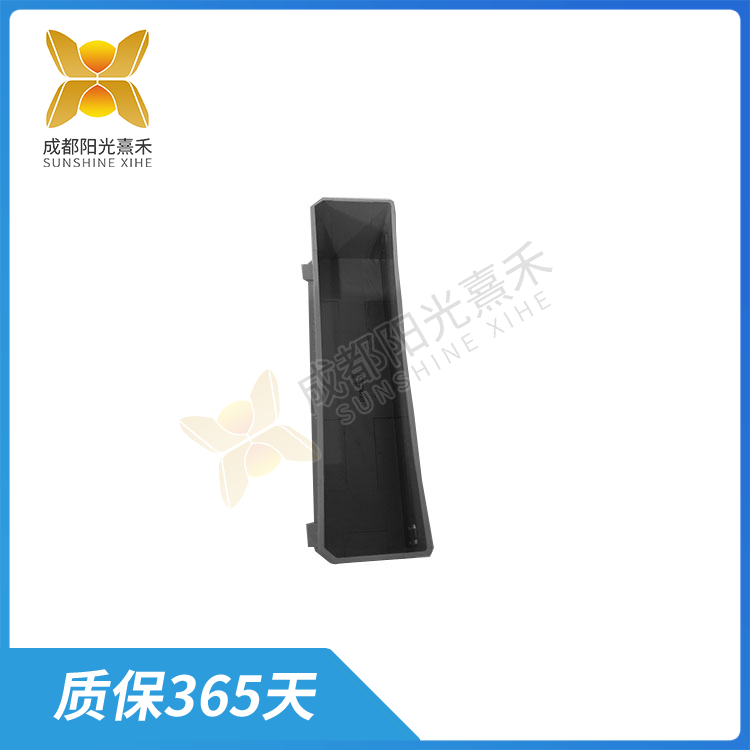

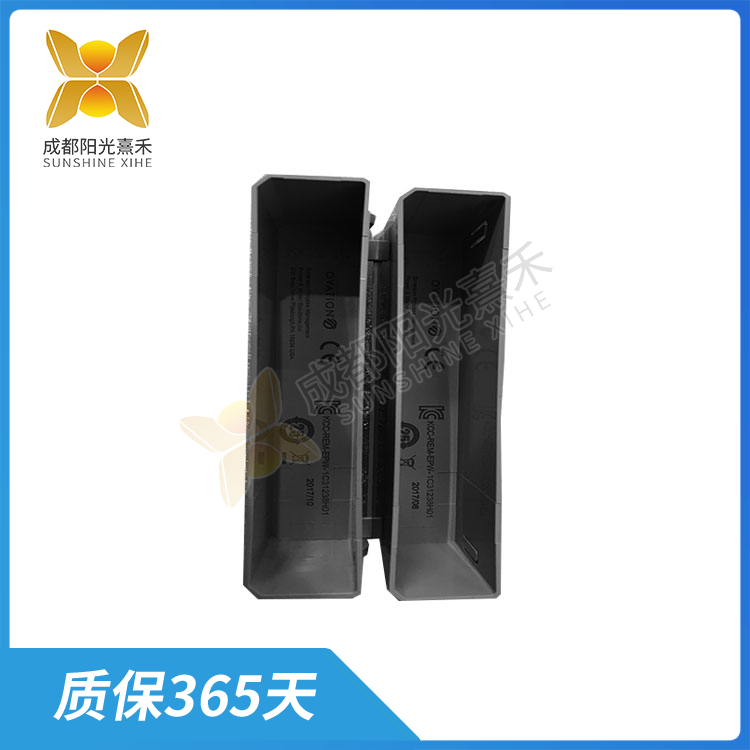

1C31238H01 數字控制系統的輸出信號轉換為現場設備可以執行的信號

輸入輸出模塊，也稱為數字輸入輸出模塊（DI/DO），是數字控制系統中重要的組成部分。1C31238H01負責將外部的數字信號（通常是來自傳感器、按鈕、開關等的信號）轉換為數字控制系統可以理解和處理的信號，同時也將數字控制系統的輸出信號轉換為現場設備可以執行的信號。

具體來說，數字輸入模塊（DI）的主要功能是將現場的開關量信號（如電流開關、轉速開關、水壓開關等）轉換為數字控制系統可以識別的信號。這些信號通常以高/低電平的形式輸入到控制器，控制器將其轉換為CPU可以識別的二進制1或0，從而對輸入量進行邏輯分析和數據計算。

數字輸出模塊（DO）的主要功能則是將數字控制系統的輸出信號轉換為現場設備可以執行的信號。它可以將CPU計算好的二進制信號轉換為高/低電平，并通過輸出通道傳輸給外界，連接相應的電路實現繼電器或其他開關元件的動作。開關量輸出DO信號是控制過程中最為常見的輸出信號，通常將其用作繼電器、電磁閥、電機等設備的控制信號。

輸入輸出模塊在數字控制系統中扮演著重要的角色，1C31238H01不僅實現了數字控制系統與現場設備之間的信號轉換，還保證了系統的穩定性和可靠性。同時，這些模塊通常還需要具有抗干擾能力，以防止由于電磁干擾等原因?qū)е碌恼`操作。在實際應用中，選擇適合的輸入輸出模塊并正確配置參數，對于數字控制系統的正常運行至關重要。

此外，1C31238H01輸入輸出模塊還廣泛應用于各種工業現場控制系統、數據采集系統、智能家居等領域。例如，在工業自動化中，輸入輸出模塊可以用于監控和控制生產線的運行，實現設備的自動化控制和數據的實時采集；在智能家居中，輸入輸出模塊可以用于實現家居設備的聯動控制和智能控制，提高生活的便捷性和舒適性。

總之，輸入輸出模塊是數字控制系統中不可或缺的一部分，它們?yōu)閿?shù)字控制系統與現場設備之間的通信和控制提供了可靠的解決方案。

1C31238H01 數字控制系統的輸出信號轉換為現場設備可以執行的信號

The input/output module, also known as the digital input/output module (DI/DO), is an important part of the digital control system. 1C31238H01 is responsible for converting external digital signals (usually signals from sensors, buttons, switches, etc.) into signals that the digital control system can understand and process, and also converts the output signals of the digital control system into signals that can be executed by the field equipment.

Specifically, the main function of the digital input module (DI) is to convert the field switching signals (such as current switches, speed switches, water pressure switches, etc.) into signals that can be recognized by the digital control system. These signals are usually input to the controller in the form of high/low levels, and the controller converts them into binary 1s or 0s that the CPU can recognize for logical analysis and data calculation of the input amount.

The main function of the digital output module (DO) is to convert the output signal of the digital control system into a signal that can be executed by the field equipment. It can convert the binary signal calculated by the CPU into a high/low level, and transmit it to the outside world through the output channel, and connect the corresponding circuit to realize the action of relays or other switching components. The switch output DO signal is the most common output signal in the control process, which is usually used as the control signal of relays, solenoid valves, motors and other equipment.

The input and output module plays an important role in the digital control system. 1C31238H01 not only realizes the signal conversion between the digital control system and the field equipment, but also ensures the stability and reliability of the system. At the same time, these modules usually also need to have anti-interference capabilities to prevent misoperation due to electromagnetic interference and other reasons. In practical application, it is very important to select the appropriate input and output module and configure the parameters correctly for the normal operation of the digital control system.

In addition, 1C31238H01 input and output module is also widely used in various industrial field control systems, data acquisition systems, smart home and other fields. For example, in industrial automation, the input and output module can be used to monitor and control the operation of the production line, realize the automatic control of the equipment and real-time data collection; In the smart home, the input and output module can be used to realize the linkage control and intelligent control of home devices, improving the convenience and comfort of life.

In short, the input and output modules are an indispensable part of the digital control system, they provide a reliable solution for the communication and control between the digital control system and the field equipment.
