描述

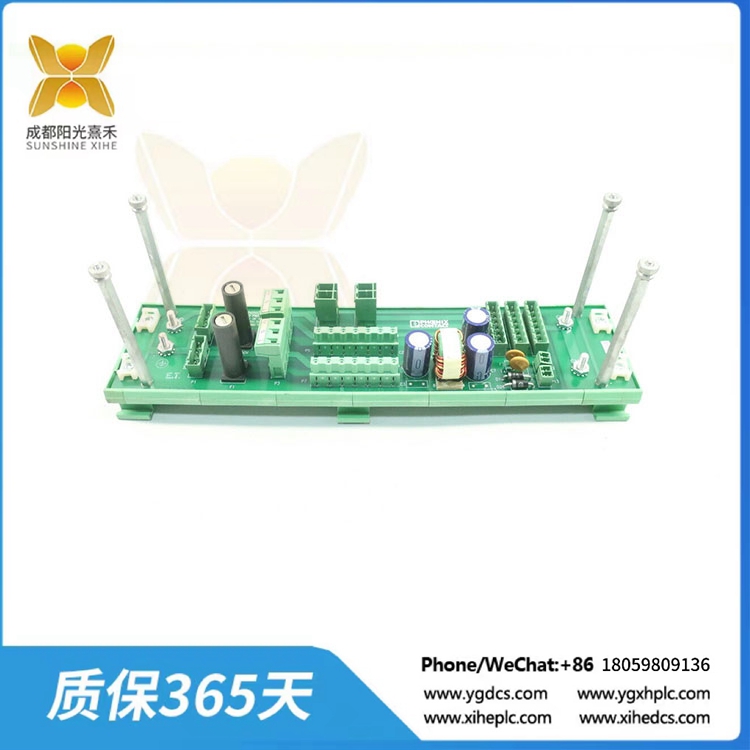

1X00102H01 Ovation配電板

1X00102H01配電板是在一塊電木板上布置插座、開關、繼電器等電氣元件的簡易配電屏。適用于沿海、遠洋及江河船舶電站，直流220V以下,交流440V50Hz或450V60Hz電網。

配電板是在一塊電木板, 木板或者其他材料上布置插座、開關、繼電器等電氣玩件的簡易配電屏。
1X00102H01主配電板的制造符合GB/T11634-2000《船用交流低壓配電板通用技術條件》、中國級社《鋼質海船入級與建造規范》2006) 、《鋼質內河船舶入級與建造規范》(2002版) 的有關要求。
配電板適用于沿海、遠洋及江河船舶交直流電站，直流230V以下， 交流440V50Hz或450V60Hz電網,單機功率為12kW-900kW,用來控制與監視主發電機的工作，并將船電送來的電能或岸電送來的電能，通過主配電板向全船用電設備進行配電。

1X00102H01配電板分主配電板及應急配電板兩種:
主配電板直接和主發電機相連，把主發電機發出的電能或岸電送來的電能分配至遠外的二級1X00102H01分電裝置或直接分配給用電負載;主電源失電后，應急配電板向- -些重要設備供電(如應急照明、操縱裝置、導航和無線電設備等)。

ABBMD190(HONOR)’安亞’系列低壓開關柜, 是經過TILVA和ASTA試驗,并符合BS、IEC標準。 組件模數為190mm。開關柜結構可按用戶要求擴展設備。

PDJ系列船用配電板適用于三相AC400V/50Hz或AC440V/60Hz、單機功率自20kW至1 600kW及DC30V以下船舶交直流系統，用來控制、監視和保護發電機。

1X00102H01 Ovation配電板

The 1X00102H01 power distribution board is a simple power distribution panel that arranges electrical components such as sockets, switches, and relays on a power board. Suitable for coastal, ocean and river ship power stations, DC below 220V, AC 440V50Hz or 450V60Hz power grid.

A power distribution board is a simple power distribution panel in which sockets, switches, relays and other electrical devices are arranged on a board, wood or other materials.
The 1X00102H01 main switchboard is manufactured in accordance with the relevant requirements of GB/T11634-2000 “General Technical Conditions for Marine AC Low-voltage switchboard”, China Classification Society “Classification and Construction Code for Steel sea Ships” 2006), “Classification and Construction Code for Steel inland River Ships” (2002 edition).
The power distribution board is suitable for AC and DC power stations of coastal, ocean and river ships, DC below 230V, AC 440V50Hz or 450V60Hz power grid, single power is 12kW-900kW, used to control and monitor the work of the main generator, and send the electric energy sent by the ship or shore power. Power is distributed through the main switchboard to the electrical equipment of the whole ship.

There are two types of 1X00102H01 switchboards: main switchboard and emergency switchboard:
The main switchboard is directly connected to the main generator, and distributes the electrical energy sent by the main generator or the electrical energy sent by the shore power to the distant secondary 1X00102H01 distribution device or directly to the electric load; After the main power supply is lost, the emergency switchboard supplies power to some important equipment (such as emergency lighting, maneuvers, navigation and radio equipment, etc.).

ABBMD190(HONOR)’ Anya ‘series low-voltage switchgear is tested by TILVA and ASTA, and conforms to BS and IEC standards. The module is 190mm. Switchgear structure can be expanded according to user requirements.

PDJ series Marine switchboard is suitable for three-phase AC400V/50Hz or AC440V/60Hz, single-unit power from 20kW to 1 600kW and DC30V Marine AC/DC system, used to control, monitor and protect generators.
