描述

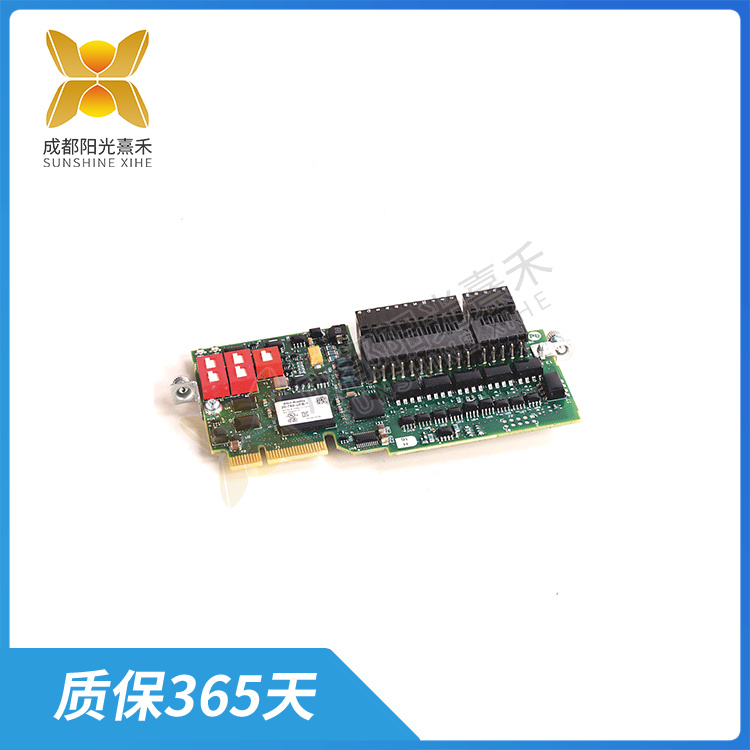

20-750-UFB-1 通用反饋編碼器模塊

20-750-UFB-1是一款通用反饋編碼器模塊（，用于接收和處理來自旋轉編碼器（通常是電機編碼器）的信號的電子設備。旋轉編碼器是一種用于測量旋轉位置、速度或方向的傳感器，廣泛應用于各種機械系統和自動化設備中。

20-750-UFB-1的主要功能包括：

信號接收：接收來自旋轉編碼器的輸出信號，這些信號通常是脈沖序列或模擬信號。

信號轉換：將接收到的信號轉換為適合后續處理的格式，如數字信號或標準接口信號。

數據處理：對接收到的信號進行處理，例如計算旋轉角度、速度、方向等，并可能進行濾波、縮放或校準等操作。

通信接口：提供與外部設備（如控制器、驅動器或計算機）的通信接口，通常通過串行通信（如RS-232、RS-485、CAN等）或并行接口進行數據傳輸。

故障檢測：檢測編碼器信號中的錯誤或故障，并可能提供故障指示或報警功能。

通用反饋編碼器模塊適用于多種應用場景，包括伺服系統、步進電機系統、機器人、數控機床、自動化生產線等。它們可以與各種控制器、驅動器或數據采集系統配合使用，以實現精確的位置控制、速度控制、運動軌跡規劃等功能。

在選擇和使用通用反饋編碼器模塊時，20-750-UFB-1需要根據具體的編碼器類型、信號輸出格式以及控制要求來選擇合適的模塊型號和參數。同時，還需要注意與編碼器、控制器等其他部件的匹配和兼容性，以確保整個系統的穩定性和性能。

20-750-UFB-1 通用反饋編碼器模塊

The 20-750-UFB-1 is a universal feedback encoder module (an electronic device for receiving and processing signals from a rotary encoder (usually a motor encoder). Rotary encoder is a kind of sensor used to measure rotation position, speed or direction, which is widely used in various mechanical systems and automation equipment.

The main functions of the 20-750-UFB-1 include:

Signal reception: Receives output signals from the rotary encoder, which are usually pulse sequences or analog signals.

Signal conversion: The received signal is converted into a format suitable for subsequent processing, such as a digital signal or a standard interface signal.

Data processing: Processing of the received signal, such as calculating rotation Angle, speed, direction, etc., and possibly filtering, scaling, or calibration operations.

Communication interface: Provides a communication interface with external devices (such as controllers, drivers, or computers), usually through serial communication (such as RS-232, RS-485, CAN, etc.) or parallel interfaces for data transmission.

Fault detection: Detects errors or faults in the encoder signal and may provide fault indication or alarm functions.

The universal feedback encoder module is suitable for a variety of application scenarios, including servo systems, stepper motor systems, robots, CNC machine tools, automated production lines, etc. They can be used with various controllers, drivers or data acquisition systems to achieve accurate position control, speed control, motion trajectory planning and other functions.

When selecting and using the universal feedback encoder module, the 20-750-UFB-1 needs to select the appropriate module model and parameters according to the specific encoder type, signal output format, and control requirements. At the same time, it is also necessary to pay attention to the matching and compatibility with other components such as encoders and controllers to ensure the stability and performance of the entire system.
