描述

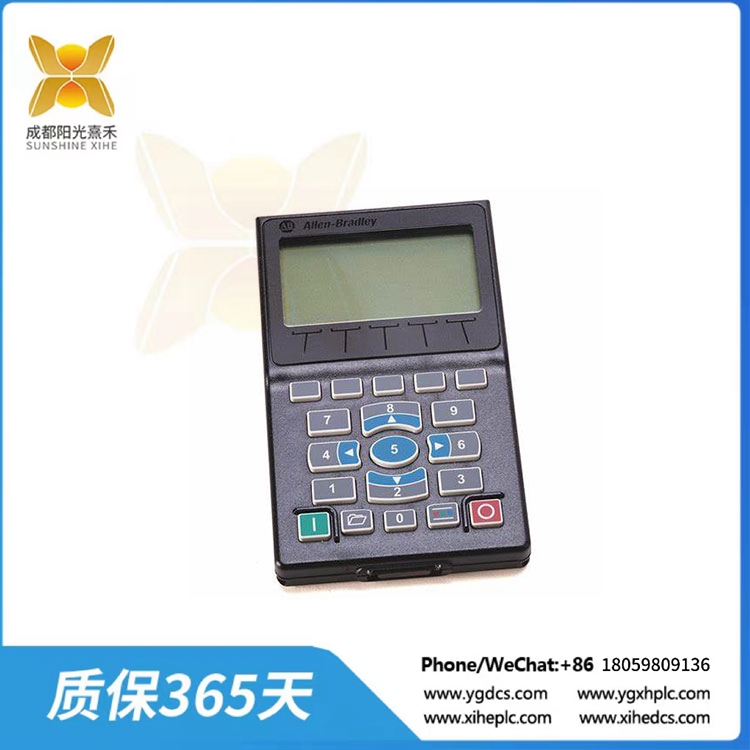

20-HIM-A6 PowerFlex 架構 HIM 級

艾倫-布拉德利20-HIM-A6是一個人機界面模塊(HIM)。這是NEMA 1型HIM,與Allen-Bradley PowerFlex 7級驅動器一起使用。 該組件有一個完整的數字鍵盤和動態軟鍵，用于改進和有效地與主機驅動器交互。該組件支持歐洲、英語和亞洲語言,特別是英語、葡萄牙語、法語、意大利語、德語、西班牙語和荷蘭語。

20-HIM-A專[門]兼容使用PowerFlex 753驅動器、PowerFlex 755驅動器、PowerFlex 755TL驅動器、PowerFlex 755TR驅動器、PowerFlex 755TM通用總線逆變器、PowerFlex 755TM總線電源、具有標準或增強控制的PowerFlex 70驅動器、具有標準或矢量控制的PowerFlex 700驅動器、PowerFlex 700H驅動器、具有第一或第二 階段控制的PowerFlex 700S驅動器、具有700矢量控制或700S控制的PowerFlex 700L驅動器20-HIM-A6安裝在驅動器前面板上主機驅動器提供的擋板上。它連接到驅動器端口1,以將HIM完全集成到主機驅動器。此外，20-HIM-A6也可以插入位于主機驅動器底部的驅動器端口2。這可以通過PowerFlex 750和PowerFlex 7類驅動器來實現。

20-HIM-A6支持驅動外設接口(DPI)協議，傳輸速度為125 Kbps或500 Kbps。它在12V DC下的功耗為140 mA,由主機驅動提供。

20-HIM-A6接口采用全數字鍵盤，具有完全集成的導航功能，可輕松配置和監控變頻器以及連接的外圍設備。20-HIM-A6接口具有更好的鍵盤觸摸響應和改進的觸覺響應，可高效無誤地輸入數據。20-HIM-A6界面 旨在為用戶提供更直觀的訪問，新的菜單結構提高了設備的運行效率。20- HIM-A6接口具有動態軟鍵，可根據屏幕上的數據更改驅動器的功能或名稱。它采用可定制的驅動監控,在過程屏幕上顯示為列表。20-HIM-A6接口具有新的閃爍LCD屏幕，在出現故障或檢測到警報時提供增強的可視性。20-HIM-A6接口安裝在驅動器正面的擋板或驅動器端口1中。為了支持手持操作, 20-HIM-A6接口安裝在驅動器控制盒底部附近的驅動器端口2中。

20-HIM-A6 PowerFlex 架構 HIM 級

The Allen-Bradley 20-HIM-A6 is a human Machine interface module (HIM). This is the NEMA Type 1 HIM, which is used with Allen-Bradley PowerFlex Level 7 drives. The component has a full numeric keypad and dynamic soft keys for improved and efficient interaction with the host drive. The component supports European, English, and Asian languages, especially English, Portuguese, French, Italian, German, Spanish, and Dutch.

20-HIM-A Pro is compatible with PowerFlex 753 drives, PowerFlex 755 drives, PowerFlex 755TL drives, PowerFlex 755TR drives, PowerFlex 755TM Universal Bus inverters, PowerFlex 755TM bus power supply, PowerFlex 70 drive with standard or enhanced control, PowerFlex 700 drive with standard or vector control, PowerFlex 700H drive, PowerFlex with first or second stage control The 700S drive, PowerFlex 700L drive 20-HIM-A6 with 700 vector control or 700S control is mounted on the baffle provided by the host drive on the front panel of the drive. It connects to drive port 1 to fully integrate HIM into the host drive. In addition, the 20-HIM-A6 can also be plugged into the drive port 2 located at the bottom of the host drive. This can be done with PowerFlex 750 and PowerFlex Class 7 drives.

The 20-HIM-A6 supports the Driver Peripheral Interface (DPI) protocol with transmission speeds of 125 Kbps or 500 Kbps. It has a power consumption of 140 mA at 12V DC and is provided by the host drive.

The 20-HIM-A6 interface features a full numeric keypad with fully integrated navigation, making it easy to configure and monitor frequency converters and connected peripherals. The 20-HIM-A6 interface features better keyboard touch response and improved haptic response for efficient and error-free data entry. The 20-HIM-A6 interface is designed to provide users with more intuitive access, and the new menu structure improves the efficiency of the device’s operation. The 20-HIM-A6 interface has dynamic soft keys to change the function or name of the drive based on the data on the screen. It uses customizable driver monitoring, which is displayed as a list on the process screen. The 20-HIM-A6 interface features a new blinking LCD screen that provides enhanced visibility when a fault occurs or an alarm is detected. The 20-HIM-A6 interface is installed in the baffle or drive port 1 on the front of the drive. To support handheld operation, the 20-HIM-A6 interface is installed in drive port 2 near the bottom of the drive control box.
