描述

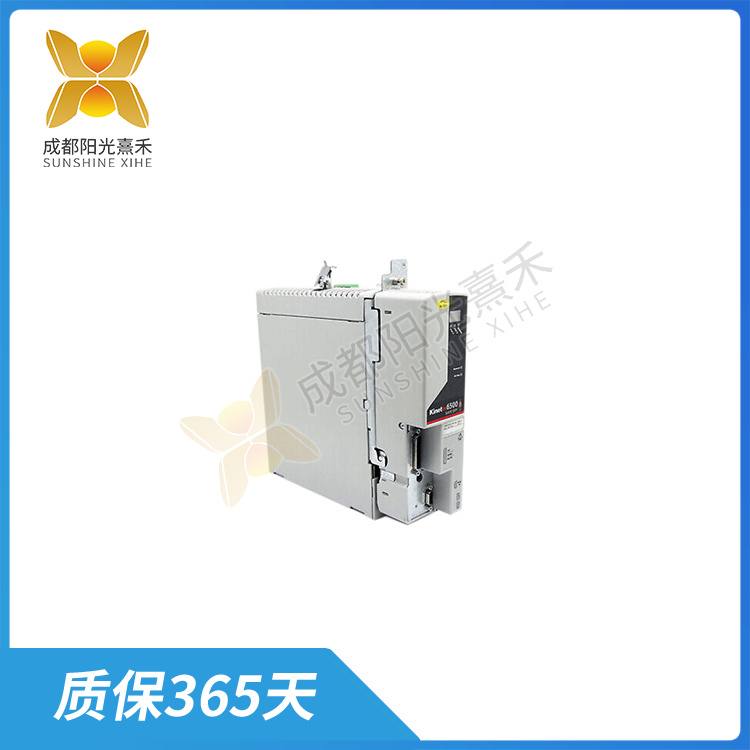

2094-BM02-M Allen-Bradley 多軸伺服驅動器

2094-BM02-M的工作原理基于數字信號處理技術，用于實現多個電機或執行器的同步運動控制。它接收輸入的控制信號，并將這些信號分解成多個獨立的控制信號，然后通過控制器分配給對應的電機或執行器。

具體來說，2094-BM02-M通常由一個主控制器和多個從控制器組成。主控制器負責接收外部的輸入信號，例如來自上級控制器、操作員界面或傳感器等的指令。主控制器將這些輸入信號進行解析和處理，生成相應的控制指令。

然后，主控制器將這些控制指令通過內部通信總線發送給各個從控制器。從控制器負責驅動對應的電機或執行器。每個從控制器根據接收到的控制指令，對相應的電機或執行器進行精確的位置控制、速度控制或其他運動控制。

為了實現多個軸的同步運動，2094-BM02-M需要精確地控制每個軸的運動時間和軌跡。這通常通過分時多路復用技術來實現，即將控制信號在不同的時間段分配給不同的軸，確保它們按照預定的順序和時間進行運動。

此外，2094-BM02-M還可能采用一些先進的控制算法，如插補算法、輪廓控制算法等，以實現更復雜的運動軌跡和更高的運動精度。

綜上所述，2094-BM02-M的工作原理是通過數字信號處理技術將輸入的控制信號分解并分配給多個電機或執行器，并通過精確的同步控制實現多個軸的協同運動。

2094-BM02-M Allen-Bradley 多軸伺服驅動器器

The working principle of the 2094-BM02-M is based on digital signal processing technology and is used to achieve synchronous motion control of multiple motors or actuators. It receives the input control signals and breaks these signals into multiple independent control signals, which are then distributed to the corresponding motor or actuator by the controller.

Specifically, the 2094-BM02-M typically consists of one master controller and multiple slave controllers. The primary controller is responsible for receiving external input signals, such as instructions from a superior controller, operator interface, or sensor. The main controller analyzes and processes these input signals to generate corresponding control instructions.

The master controller then sends these control instructions to each slave controller via the internal communication bus. The slave controller is responsible for driving the corresponding motor or actuator. Each slave controller performs precise position control, speed control or other motion control on the corresponding motor or actuator according to the control instructions received.

In order to achieve synchronous movement of multiple axes, the 2094-BM02-M needs to precisely control the movement time and trajectory of each axis. This is usually achieved through time-sharing multiplexing technology, which means that control signals are assigned to different axes at different time periods, ensuring that they move in a predetermined order and at a predetermined time.

In addition, 2094-BM02-M May also use some advanced control algorithms, such as interpolation algorithms, contour control algorithms, etc., to achieve more complex motion trajectories and higher motion accuracy.

To sum up, the working principle of 2094-BM02-M is to decompose and distribute the input control signal to multiple motors or actuators through digital signal processing technology, and realize the coordinated movement of multiple axes through accurate synchronous control.
