描述

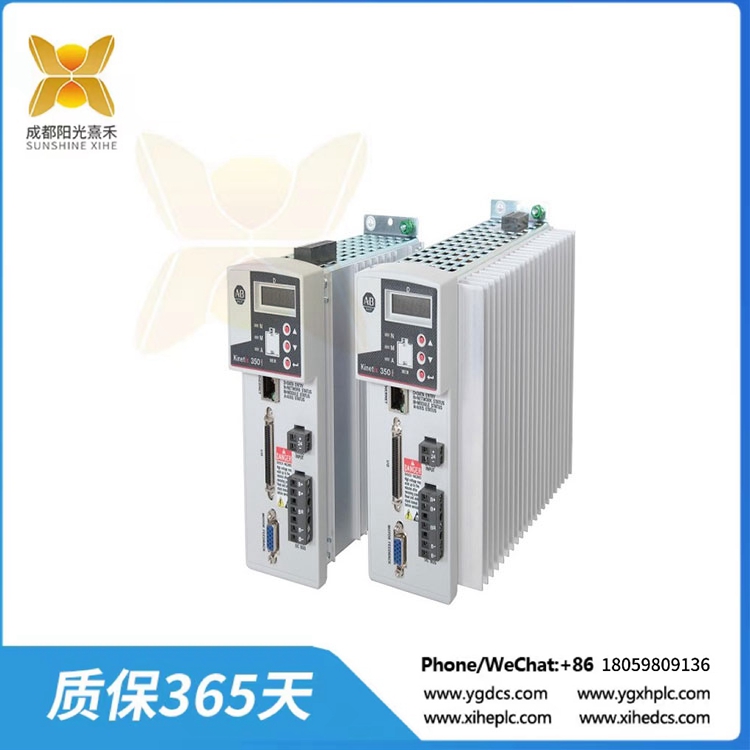

2097-V34PR5 Kinetix 300 伺服驅動器

2097-V33PR5是一個單軸伺服驅動器，是Kinetix 300以太網I/P索引伺服驅動器的一部分。作為Kinetix 300驅動器的一部分，它有助于整體成本效益，因?yàn)樗梢园惭b在控制軸較少的應用中。憑借內置的以太網I/P接口，它支持與現有以太網I/P網絡的現代連接，從而簡化了集成。

2097-V34PR5在提供外部交流輸入電壓480VAC，三相時工作。該驅動器集成了安全扭矩關閉(STO)。它的連續輸出電流為5.7 a，功率為2.0 kW。安裝時，2097-V34PR5的側邊最小安裝間隙為3mm(0.12英寸)，上下最小安裝間隙為25mm(1.0英寸)。當驅動器安裝在噪聲敏感設備或設備旁邊時，必須額外增加150mm(6.0英寸)的間隙。根據與驅動器一起安裝的附件，還需要額外的間隙。

伺服驅動器前面板的嵌入式接口有以太網通信端口、分流電阻和直流總線(BC)連接器、電機反饋(MF)連接器、I/O (IOD)連接器和備用電源(BP)連接器。

Kinetix 300分度伺服驅動器使用單一標準通信網絡，實現快速簡便的配置，調試和啟動。使用2097-V34PR5，可以通過以太網/IP集成整個控制解決方案。這包括HMI, I/O，可編程自動化控制器(PAC)和運動。它還消除了添加專用運動控制網絡的需要。簡化的網絡地形降低了面板布局要求和整體系統成本，同時保持了出色的可靠性和高速連接。2097-V34PR5能夠執行5種不同的索引類型，并支持多達32個索引，以實現位置控制性能。這使得它非常適合建造分度臺，間歇性水平和垂直形式/填充/密封機，簡單的袖，包裝機和安裝機，進料和提取設備，換刀機械和自動組裝設備。為了提高生產率和安全性，這款Kinetix 300伺服驅動器具有集成的安全轉矩關閉功能。這使得安全成功地完成故障排除和維護任務，而無需切斷整個機器的電源。當電路跳閘時，驅動器輸出可以關閉而沒有危險。這將縮短機器停機時間，加快重啟速度。

2097-V34PR5 Kinetix 300 伺服驅動器

The 2097-V33PR5 is a single-axis servo drive that is part of the Kinetix 300 Ethernet I/P indexing servo drives. Being part of the Kinetix 300 drives, it contributes to overall cost-effectiveness as it may be installed in applications with lesser control axis. With the built-in Ethernet I/P interface, it supports modern connectivity to existing Ethernet I/P networks, enabling simplified integration.

The 2097-V34PR5 operates when provided with an external AC input voltage 480VAC, 3-phase. This drive has integrated Safe Torque-Off (STO). It has a continuous output current and power of 5.7 A and 2.0 kW respectively. For installation, the minimum installation clearance required by the 2097-V34PR5 are 3mm or 0.12 inches side clearances and 25 mm or 1.0 inches top and bottom clearance for airflow and installation. An extra 150 mm (6.0 in.) clearance must be added when the drive is installed next to noise sensitive device or equipment. Additional clearances are also required, depending on the accessories installed with the drive.

The embedded interfaces to the servo drive’s front panel are Ethernet communication port, Shunt resistor and DC bus (BC) connector, Motor feedback (MF) connector, I/O (IOD) connector, and Back-up power (BP) connector.

The Kinetix 300 Indexing Servo Drive uses a single standard communication network for fast and easy configuration, commissioning and startup. Using the 2097-V34PR5, an entire control solution can be integrated over EtherNet/IP. This includes HMI, I/O, Programmable Automation Controllers (PAC) and motion. It also eliminates the need to add a dedicated Motion Control Network. The simplified network topography cuts down on panel layout requirements and overall system costs while maintaining excellent reliability and high-speed connectivity. The 2097-V34PR5 has the ability to execute 5 different indexing types and support as many as 32 indexes for position-control performance. This makes it ideal for building indexing tables, intermittent horizontal and vertical form/fill/seal machines, simple sleevers, case packers and erectors, feed and withdrawal equipment, tool changing machinery, and automatic assembly equipment. To increase productivity and safety, this Kinetix 300 servo drive comes with integrated safe torque-off functionality. This allows the safe and successful completion of troubleshooting and maintenance tasks without cutting off power from the entire machine. When the circuit is tripped, drive output can be disabled without danger. This results in shorter machine downtime and faster restart.
