描述

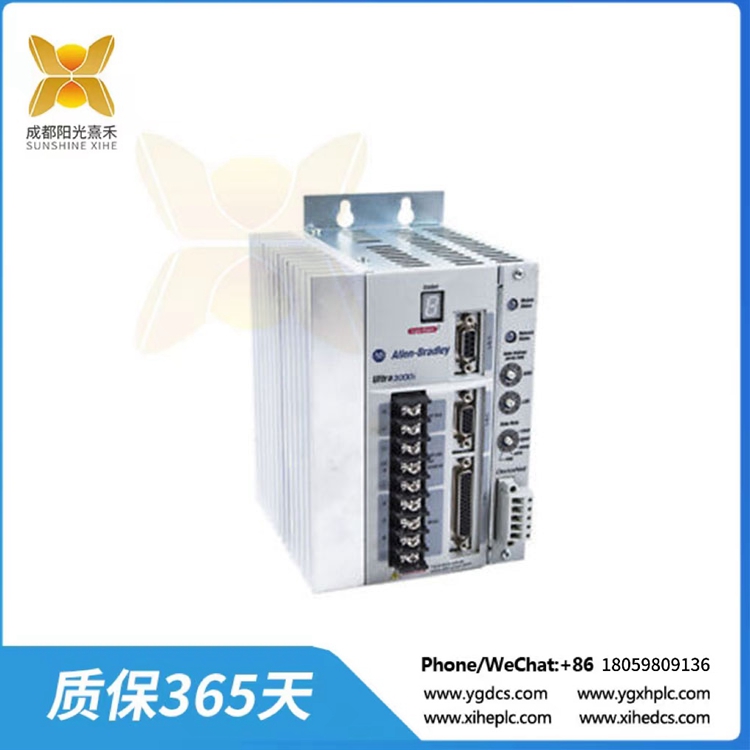

2098-DSD-010X Ultra 3000 1kW伺服驅動器

Allen-Bradley 2098-DSD-010X-DN是一款Ultra 3000數字伺服驅動模塊(帶有DeviceNet和索引)。該模塊是用于控制大多數工業伺服電機的單相交流驅動器。2098-DSD-010X-DN重2.1Kg(4.6磅)。該模塊的總體積為98.1 mm × 32.77 mm × 65.02 mm。模塊的工作溫度為0 ~ 55℃(32 ~ 131°F)。該模塊的存儲溫度為-40-70°C(-40-158°F)。本模塊相對濕度≤5% ~ 95%，無凝露。2098-DSD-010X-DN的工作沖擊為15 g(3個脈沖，11 ms)。該模塊的非工作沖擊為30g(3次脈沖，11ms)。該模塊旨在在2.5 g振動下保持最佳功能。它可以在高達1000米(3280英尺)的高度運行而不降額。但是，每增加300米(984英尺)到3000米(9842英尺)，必須聲明連續電流值為3%。

2098-DSD-010X-DN有8個有源數字輸入。該模塊還具有光隔離浸入式電流流，具有4個輸出電流源，繼電器輸出為30V DC(最大)和1A(最大)常開繼電器。Allen-Bradley 2098-DSD-010X-DN的輸入額定值為9A (100 A電流浪涌)和100- 240v交流(單相)，頻率為47-63Hz。該模塊的輸出額定值為15A(間歇)。該模塊在230V交流時的最大輸出功率為1kw，最大能量吸收能力為51焦耳，BUS電容為1880μF(電容)。本模塊母線過壓為400V DC。

2098-DSD-010X Ultra 3000 1kW伺服驅動器

The Allen-Bradley 2098-DSD-010X-DN is an Ultra 3000 Digital Servo Drive Module (with DeviceNet and Indexing). This module is a single-phase AC drive used for control of most industrial servo motors. The 2098-DSD-010X-DN weighs 2.1Kg (4.6 lbs). This module has a total volume of 98.1 mm x 32.77 mm x 65.02 mm. The operating temperature of this module is 0-55 °C (32-131 °F). The storage temperature of this module is -40-70 °C (-40-158 °F). The relative humidity of this module is from 5-95% without condensation. The 2098-DSD-010X-DN has an operating shock of 15 g (3 pulses, 11 ms). The nonoperating shock of this module is 30 g (3 pulses, 11 ms). This module is designed to maintain optimum functionality at 2.5 g vibration. It can operate at altitudes of up to 1000 m (3280 ft) without derating. However, continuous current values must be declared at 3% for each additional 300 m (984 ft) to 3000 m (9842 ft).

The 2098-DSD-010X-DN has 8 active digital inputs. This module also has an optically-isolated immersed current stream with 4 output current sources with a relay output of 30V DC (max) and 1A (max) Normally-Open relay. The Allen-Bradley 2098-DSD-010X-DN has an input rating of 9A (with 100 A current surge) and 100-240V AC (single phase) at 47-63Hz. This module has an output rating of 15A (intermittent). This module has a maximum output power of 1 kW at 230V AC with 51 Joules maximum energy absorption capability and a BUS capacitance of 1880μF (capacitance). The Bus overvoltage of this module is 400V DC.
