描述

2711-K10C10 PanelView標準終端

Allen-Bradley 2711-K10C10是舊Allen-Bradley PanelView 1000圖形終端的一部分。它用于各種監測和機器控制應用。2711-K10C10終端有一個10英寸的鍵盤和帶導航按鈕的彩色顯示器。終端支持32種標準顏色，分辨率為640 × 480。它的尺寸為11.11 x 16.64 x 4.40英寸。它重8.2磅。它具有1008 KB的非易失性存儲器，310 KB的RAM和85 – 264V的交流輸入電壓。對于通信，它有DeviceNet來上傳或下載應用程序。2711-K10C10具有NEMA 12/13或4X外殼，僅供室內使用。2711-K10C10端子具有定制設計的應用程序，易于使用。它支持先進的報警處理來存儲信息，并配有RS-232端口用于在線打印。它還支持各種通用語言。其他功能還包括模擬儀表、屏幕安全以及支持更好控制的存儲卡。它有各種端口連接到掃描儀，PLC, SLC或Logix控制器。

Allen-Bradley 2711-K10C10是PanelView Plus 1000操作終端的一部分，并作為PanelView標準操作終端。這種電子硬件是屬于PanelView 550標準子類別的人機界面(HMI)設備。

2711-K10C10通常安裝在一個外殼上，提供足夠的保護，防止工業污染物和危險環境。建議安裝在NEMA類型12,13,4x(僅限室內使用)，IEC IP54和IP65的工業外殼中。該操作終端的工作溫度范圍為0…55°C(32…131°F)，存儲溫度為-25…70°C(-13…158°F)。必須水平安裝在平面上，振動限制在2g ~ 2000hz，沖擊限制在30g。

2711-K10C10具有10英寸彩色顯示屏，使該操作終端能夠顯示彩色靜態圖形并實現彩色編碼動畫。對于操作員輸入，它配備了一個由功能鍵，導航鍵和數字按鈕組成的不銹鋼圓頂膜鍵盤，驅動壽命為100萬次。為了通信，2711-K10C10具有集成的DeviceNet和RS-232 Printer接口。它還配備了1008 KB的非易失性存儲器和310 KB的隨機存取存儲器(RAM)。

它配備了一個設計庫，提供了廣泛的預先設計的對象和符號選擇，并支持定制設計，以特別適合工藝或機器。

2711-K10C10 PanelView標準終端

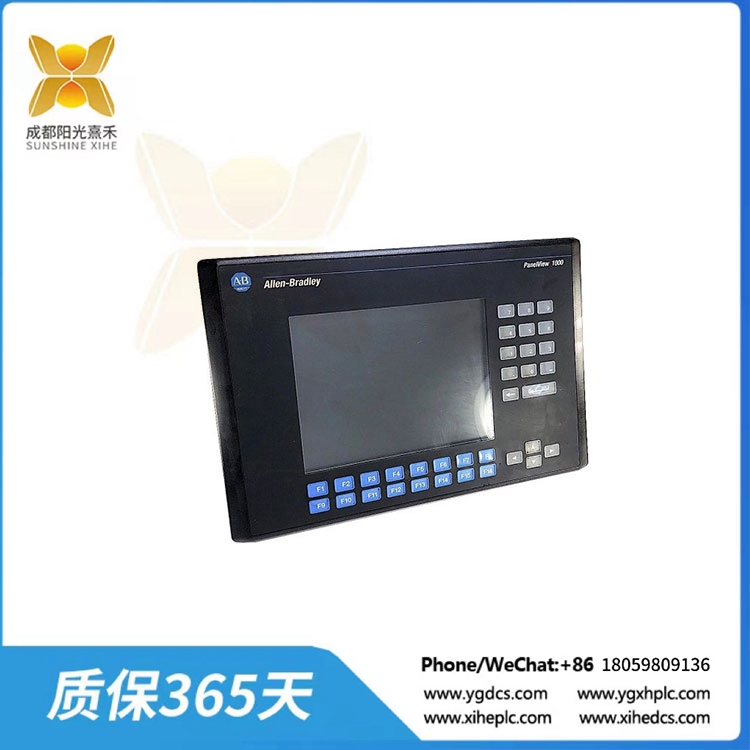

The Allen-Bradley 2711-K10C10 is a part of the old Allen-Bradley PanelView 1000 Graphics Terminal. It is used for various monitoring and machine control applications. The 2711-K10C10 terminal has a 10-inch keypad and color display with a navigation button. The terminal supports 32 standard colors and has a 640 x 480 resolution. It has dimensions of 11.11 x 16.64 x 4.40 in. and it weighs 8.2 lbs. It has a 1008 KB nonvolatile memory, a 310 KB RAM, and 85 – 264V AC input voltage. For communication, it has DeviceNet to upload or download applications. The 2711-K10C10 has a NEMA 12/13 or 4X enclosure and is intended for indoor use only. The 2711-K10C10 terminal has custom designed applications for easy use. It supports advanced alarm handling to store information and it is equipped with an RS-232 port for online printing. It also supports various universal languages. Other features include analog gauges, screen security, and a memory card support for better control. It has various ports for connecting to a scanner, PLC, SLC, or Logix controller.

The Allen-Bradley 2711-K10C10 is part of the PanelView Plus 1000 operator terminal and serves as a PanelView Standard operator terminal. This electronic hardware is specifically a Human Machine Interface (HMI) device that belongs to the PanelView 550 Standard sub-category.

The 2711-K10C10 is typically installed flush-mounted to an enclosure that offers adequate protection against industrial contaminants and hazardous environments. It is recommended to be installed in industrial enclosures rated NEMA Type 12, 13, 4X (indoor use only), IEC IP54, and IP65. This operator terminal has an operating temperature range of 0…55 °C (32…131 °F) and storage temperature of -25…70 °C (-13…158 °F). It must be installed horizontally on a flat surface with a vibration limited to 2 g up to 2000 Hertz and shock of 30 g.

The 2711-K10C10 has a 10-inch colored display screen which enable this operator terminal to display colored static graphics and implement color coded animations. For operator input, it is equipped with a stainless-steel domed membrane keypad composed of function keys, navigation keys, and numeric buttons with an actuation lifespan of 1 million presses. For communication, the 2711-K10C10 has an integrated DeviceNet and RS-232 Printer interface. It is also equipped with non-volatile memory – amounting to 1008 KB and Random Access Memory (RAM) amounting to 310 KB.

It comes with a design library that is provided with a wide selection of pre-designed objects and symbols and supports custom designing to specifically fit the process or machine.
