描述

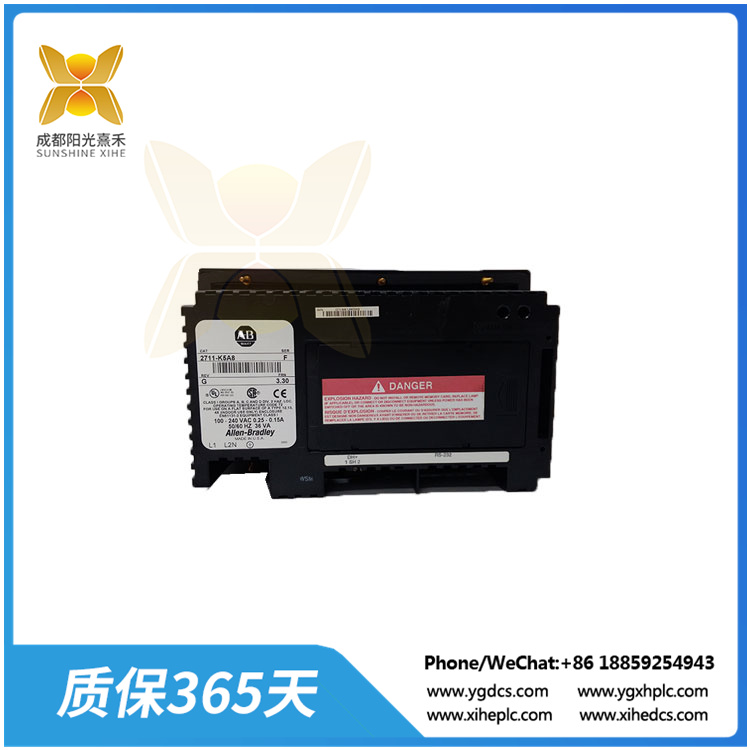

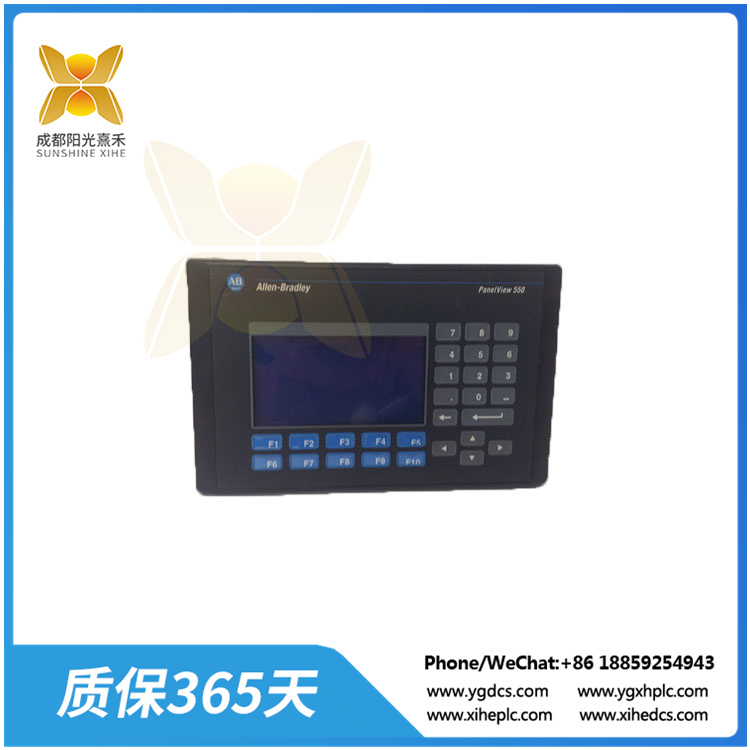

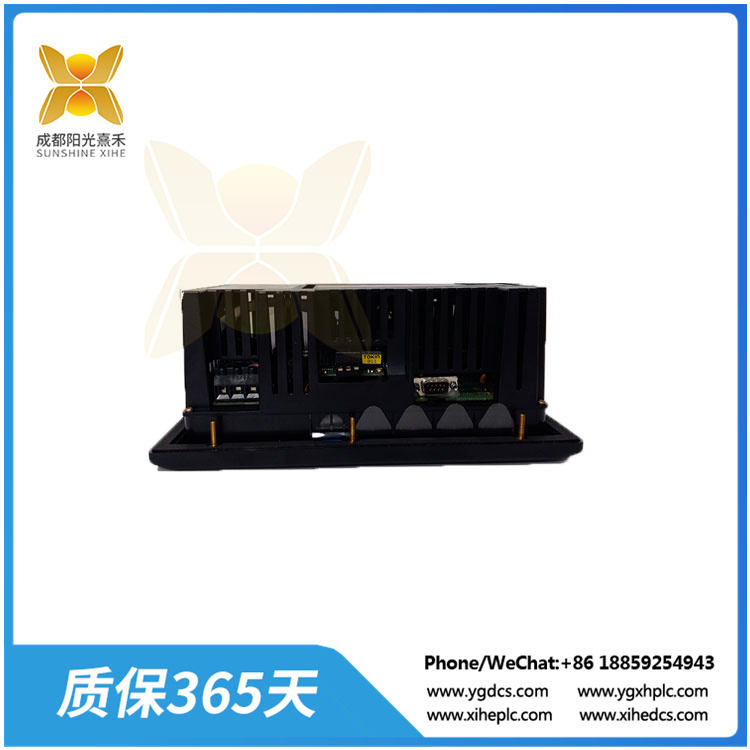

2711-K5A8 Panelview 550標準操作員終端

描述:艾倫-布拉德利2711-K5A8是Panelview 550標準操作員終端。該操作終端由外部85-264V交流供電電壓供電，具有5.5英寸單色顯示屏，嵌入式數據高速公路Plus (DH+)和RS232打印機端口。它有十(10)個功能鍵和一個鍵盤操作界面。

Allen-Bradley 2711-K5A8是一款PanelView標準操作終端。它具有嵌入式DH+和RS232通信端口，用于SLC和PLC控制器之間的數據交換。DH+通信端口支持多節點拓?fù)洌褂肂elden 9463線纜。RS-232打印機端口可與告警打印機通信，打印日志和告警歷史記錄。

2711-K5A8鍵盤通過10個功能鍵、數字鍵和導航鍵提供功能控制。對于希望使用不同于標準型號的邊框的用戶，也可以使用不銹鋼邊框升級選項。

2711-K5A8鍵盤的顯示尺寸為5.5英寸，具有240 KB非易失性存儲器和170 KB隨機存取存儲器(RAM)。鍵盤可以根據故障排除要求從艾倫-布拉德利PanelView標準550終端上拆卸，這可能需要更換或修理2711-K5A8鍵盤模塊。

過程或機器操作員使用由十(10)個功能鍵、數字鍵和導航鍵組成的嵌入式鍵盤與過程進行交互。功能鍵可以被賦值為變量，比如全局函數和局部函數。數字鍵允許輸入模擬變量和常量，而導航按鈕用于屏幕和對象選擇。

過程通過單色5.5英寸顯示屏進行監控，顯示面積為120 x 60 mm (4.75 x 2.38英寸)，分辨率為256 x 128像素。這款屏幕配有一個內部背光，設計工作時間長達10萬小時。

將2711-K5A8安裝在NEMA型12/ 13,4x(僅供室內使用)，IP54和IP65或任何等效額定外殼中，以確保HMI設備免受灰塵，污垢，腐蝕性和可燃?xì)怏w的影響。設備四周面板間距宜為2英寸，以保持良好的散熱和空氣流通。

2711-K5A8額定電源輸入范圍為交流85 ~ 264v，頻率47 ~ 63hz。操作員終端的內置隨機存取存儲器(RAM)是170KB和一個可擴展的240KB非易失性存儲器。

2711-K5A8 Panelview 550標準操作員終端

Description: The Allen-Bradley 2711-K5A8 is a Panelview 550 Standard Operator Terminal. This operator terminal is powered by an external 85-264V AC supply voltage and has a 5.5-inch monochrome display with embedded Data Highway Plus (DH+) and RS232 printer port. It has Ten (10) Function keys and a Keypad operator interface.

The Allen-Bradley 2711-K5A8 is a PanelView Standard operator terminal. It has an embedded DH+ and RS232 communication port used for exchanging data between SLC and PLC controllers. The DH+ communication port allows implementation of multi-node topology and uses the Belden 9463 cable. The RS-232 printer port enables communication with an alarm printer for printing of logs and alarm history.

The 2711-K5A8 keypad offers functional control through 10 function keys, Numeric keys and navigation keys. For the users who wish to use a different bezel than the standard model, a stainless-steel rim upgrade option is also available.

The 2711-K5A8 keypad has a display size of 5.5 inches and 240 KB non-volatile memory and 170 KB of Random Access Memory (RAM). The keypad can be removed from Allen-Bradley PanelView Standard 550 terminals according to troubleshooting requirements which may require the replacement or repair of the 2711-K5A8 keypad module.

Process or machine operators interacts with the process using the embedded keypad that is composed of Ten (10) function keys, numeric and navigation keys. The function keys may be assigned with variable assignments such as global and local function. The numeric keys allow entry of analog variable and constants while the navigation buttons are used for screen and object selection.

Process is monitored through the monochrome 5.5 inch display screen with display area of 120 x 60 mm (4.75 x 2.38 in.) and resolution of 256 x 128 pixels. This screen comes with an internal backlight that is designed to operate up to 100,000 hrs.

Install the 2711-K5A8 in a NEMA Type 12/13, 4X (Indoor use only), IP54 and IP65 or any equivalent rated enclosures to ensure that the HMI is device is protected against dust, dirt, corrosive and combustible gases. Observe appropriate panel spacing of 2 inches on all sides of the device for proper heat ventilation and promoting natural air flow.

The 2711-K5A8 rated power supply input range is 85-264V AC, with a frequency of 47-63 Hz. The Operator terminal’s built-in Random Access Memory (RAM) is 170KB and an expandable 240KB non-volatile memory.
